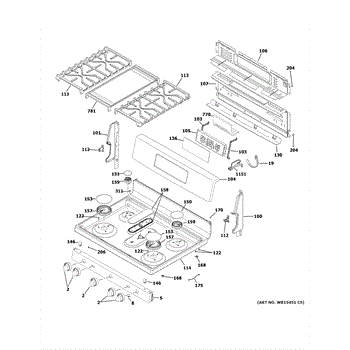

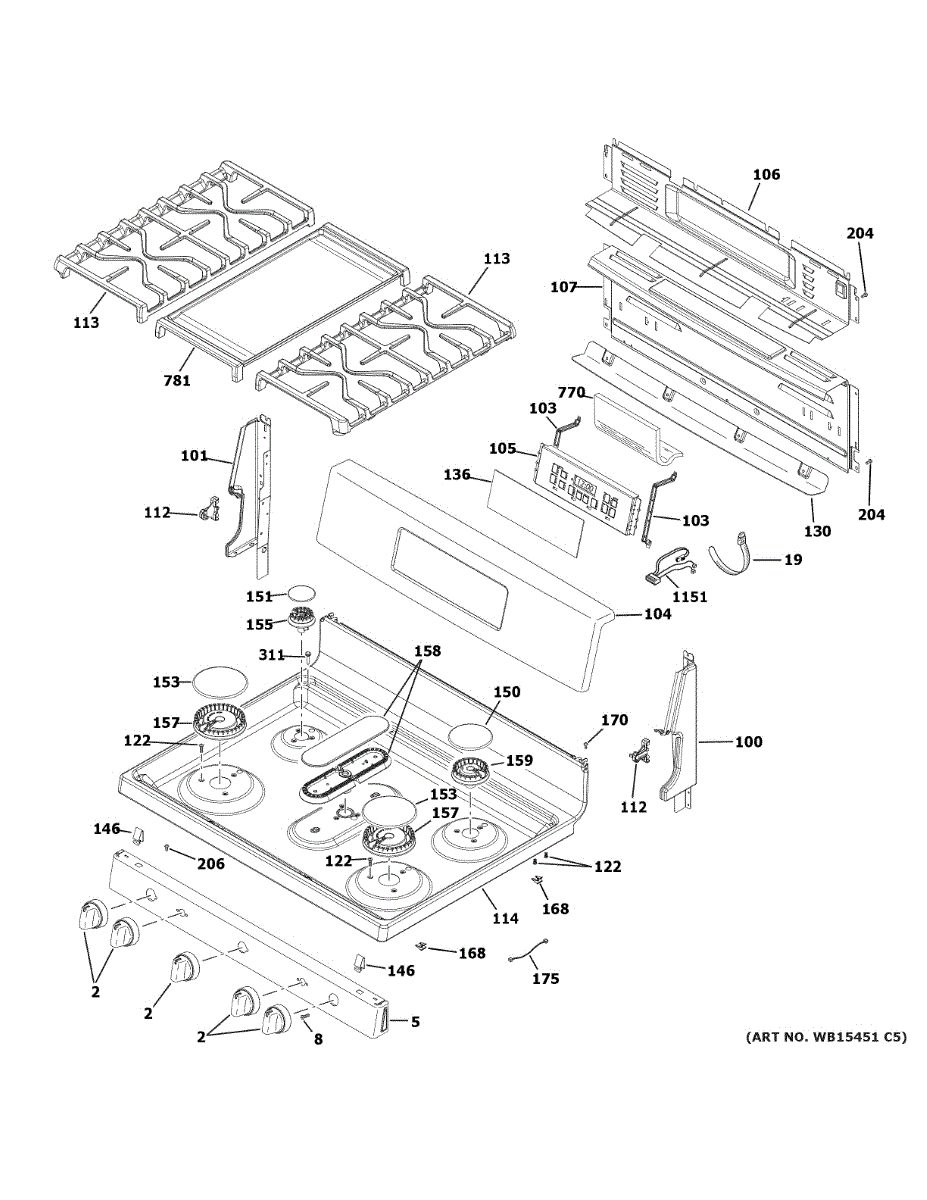

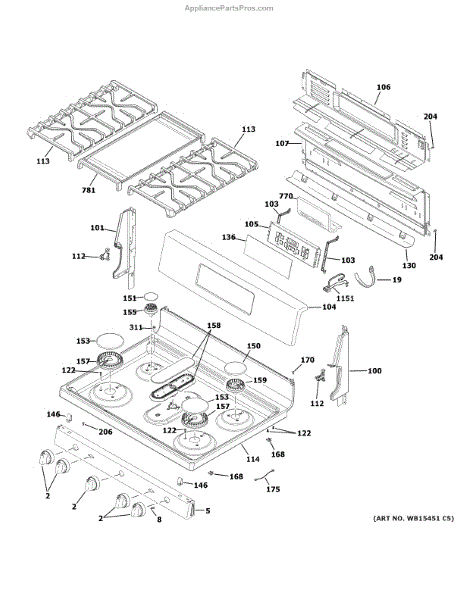

Parts for Ge JGB720EEJ5ES: Control Panel & Cooktop Parts

The Range Knob is an OEM part for GE ranges and ovens. It is used to control the temperature and settings of the stove's burners or oven functions, providing an interface for selecting heat levels and cooking modes.

Causes of a bad range knob can include physical damage from impact, melting due to exposure to high temperatures, or wear and tear from frequent use. Over time, these issues can affect the knob's functionality and accuracy.

Symptoms of a bad range knob include:

• Difficulty turning the knob
• Knob slipping or not staying in place
• Cracks or breaks in the knob
• Inaccurate temperature or setting adjustments

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement 8-18 x 5/16 machine screw used to secure appliance panels and components. It restores proper fastener fit so parts stay mounted and operate safely. What it does:

• Fastens panels, brackets, and small components where an 8-18 x 5/16 screw is specified
• Prevents loose parts, rattling, and misalignment caused by missing or worn screws
• Provides the correct thread size and length for reliable reattachment
• Works wherever the OEM calls for this specific 8-18 x 5/16 screw

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to threads or mounting surfaces
• If replacing multiple fasteners, use matching screws to maintain proper fit and function

This wire tie secures and organizes wiring inside the appliance to help prevent chafing and loose connections. Its 7-7/8 inch length is suited for bundling harnesses and routing cables away from heat and moving parts. What it does:

• Fastens and groups wires or small hoses to keep them neatly routed
• Helps prevent wire chafing, abrasion, and contact with sharp edges
• Reduces the chance of intermittent connections from loose wiring
• Keeps wiring away from moving components to reduce noise and wear

• Disconnect power before servicing the appliance
• Position wiring as needed, insert tie and tighten; avoid over-tightening
• Trim excess tie length flush and secure cut end away from wires
• Replace any damaged wiring insulation and verify routing before restoring power

This control bracket secures the appliance control assembly or console in place, keeping the control board and user interface stable for reliable operation and proper button/knob alignment. What it does:

• Mounts and supports the control board or console to the cabinet or frame
• Prevents the control assembly from shifting, vibrating, or rubbing against other components
• Helps maintain proper button/knob alignment and electrical connection stability
• Can cause a loose or misaligned control panel or intermittent button response when damaged or missing

• One control mounting bracket

• Disconnect power to the appliance before starting any repair
• Handle control board and wiring with care to avoid ESD or connector damage
• Use the original fasteners or recommended replacements and torque evenly

The Oven Control is an OEM component specifically designed for GE range ovens. It houses the electronic module responsible for operating all heating functions and cooking modes of the oven.

Symptoms of a bad control can include:

• Failure to turn on or power up the oven
• Inoperative or non-responsive buttons and dials
• Inaccurate temperature readings
• Inability to bake or roast foods properly

Causes of a bad control include natural wear and tear, overheating the oven excessively or exposure to liquid spills inside the cavity.

This replacement control is also compatible with Hotpoint, RCA, and some Kenmore stove models.

The GE Grate Assembly is an OEM part compatible with GE ranges. It provides the cooking surface for stovetop elements and grills.

Symptoms of a bad grate assembly include:

• Hot or cold spots are felt across the surface when heating
• Foods sticking or burning more easily during cooking
• Grate bars no longer laying flush and evenly across the stovetop
• Rusting, scaling, cracks, or other signs of wear in the metal

Causes of a bad grate assembly can be normal wear over many years of use. Exposure to moisture during cleaning or accidental impacts may also lead to damage.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rangetop bracket assembly secures the cooktop/rangetop to the range frame so the top stays aligned and stable during use. It helps restore proper support and prevents movement or gaps around the cooktop. What it does:

• Provides structural support to hold the rangetop/cooktop firmly in place
• Restores correct alignment between the rangetop and range frame
• Reduces wobble, gaps, and rattling during normal use
• Helps prevent edge damage that can occur when the top is loose

• Recommended for technicians or experienced DIYers; refer to your model's service manual for exact placement and fastening
• Disconnect power and gas and remove burners/control knobs before beginning work
• Retain original fasteners unless replacement hardware is specified; tighten brackets securely but avoid over-torquing
• Verify proper alignment and operation of burners and controls after reassembly

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

This backguard eyebrow is the top trim piece that finishes the range's control panel area, restoring appearance and protecting the backguard edge from spills and heat. It provides a clean factory look for worn or damaged trim. What it does:

• Covers and protects the upper edge of the range backguard and control area
• Restores a finished appearance when the original trim is dented, scratched, or missing
• Helps reduce buildup of grease at the top of the control panel
• Matches OEM fit and mounting points for a direct replacement

• One backguard eyebrow trim piece

• Remove power to the appliance before beginning service
• Basic hand tools typically required; handle trim carefully to avoid scratching finish
• Follow OEM instructions for proper alignment and secure mounting

The Overlay is an OEM part for GE ranges. This overlay serves as a protective covering for the range's internal control board. It is designed with precision tolerances to fit seamlessly over the control board area.

Causes of a bad overlay can include wear and tears over repeated exposure to heat in the oven environment, cracks or damages from accidental impacts near the control area, or discoloration from steam and grease over long-term use.

Symptoms of a bad overlay include:

• Exposure of the internal control board components to dirt, debris or liquid spills
• Cracks, holes or loose/missing pieces of the overlay that diminish its protective function
• Warping or melting of the overlay from excessive heat exposure

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Burner is an OEM replacement part for GE ranges. It is responsible for safely producing gas flames to heat the range surface. Whether baking, broiling, or simmering, the range burner must provide precise flame control and heat distribution.

Causes of a bad range burner can include cracked or rusted burner heads that improperly direct the flame, clogged or restricted gas ports that disrupt fuel flow or wear to ignition components that affect lighting.

Symptoms of a bad range burner include:

• Irregular or uneven heating of the range surface
• Difficulty controlling burner flame heights
• Burners that will not light or stay lit
• Singed, scorched, or burnt foods
• Gas leaks around burners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oval Burner Assembly is an OEM part for GE ranges. This part provides an even heat distribution across the cooktop, facilitating efficient cooking with its distinctive oval shape.

Common causes of a bad burner assembly include normal wear and tear, clogging due to food debris, or damage from overheating or impact.

Symptoms of a bad Oval Burner Assembly include:

• Inconsistent flame or uneven heating
• Burner not igniting or maintaining a flame
• Visible damage or deformities on the burner
• Unusual odors or gas leaks when the burner is in use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Clip Igniter is an OEM replacement part for GE ranges.

This GE OEM replacement is also compatible with some Hotpoint, Sears Kenmore, and RCA models.

A replacement ground harness that restores the appliance's chassis grounding connection to help ensure safe electrical operation. Installs quickly to replace a damaged or corroded ground lead and reduce risk of arcing. What it does

• Provides the dedicated chassis ground connection between appliance wiring and the cabinet
• Restores proper grounding when original harness is broken, frayed, corroded, or detached
• Helps prevent intermittent power issues, arcing, or nuisance tripping caused by poor ground continuity
• Used wherever a short ground lead or bonded connector is required for safety

• One ground harness as shown

• Disconnect power (unplug or shut off circuit breaker) before starting any repair
• Verify correct grounding point on the cabinet and secure the harness with the original screw or fastener
• Match connectors and routing to the original harness; avoid touching energized terminals during installation

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

The Range Surface Burner Grate Bumper is an OEM replacement part for GE ranges. The bumper protects the burner grate from scratching or denting the cooktop surface below when lowered into position.

Symptoms of a damaged or missing bumper include:

• Scuff marks or abrasions on the cooktop under the burner grate area
• Noise or rubbing sensations when operating burners
• Loose or detached fit of the burner grate on the range surface

Causes stem from regular use of the burner grates over many cooking cycles. Natural wear and repeated contact with surfaces can degrade bumpers over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges and cooktops.

This is the flat griddle plate that sits over the center burners on compatible cooktops/ranges. It provides an even cooking surface for pancakes, sandwiches, and more, and replaces a worn or missing griddle so heat is distributed properly.

• Creates a level, flat surface over the center burners for even heating
• Helps improve cooking results when the original griddle is warped, worn, or damaged
• Can reduce sticking and uneven browning compared to a deteriorated plate
• Restores intended fit and stability on the cooktop when the original no longer seats correctly

• Let the appliance cool completely and shut off gas/electric supply before handling
• Lift off existing center grate/griddle once cool; position the new griddle so it seats securely on the designated supports
• Ensure the griddle is stable and clear of burner flames before use
• Season/condition and clean per your range's Use & Care to maintain performance
