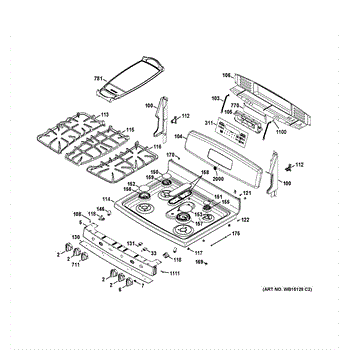

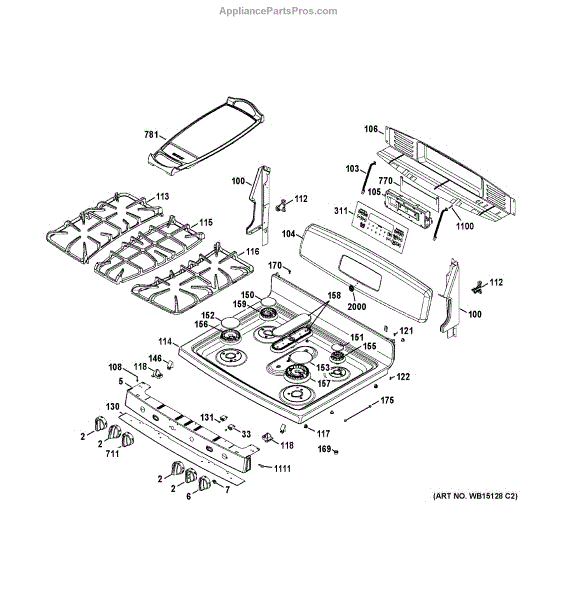

Parts for Ge JGB870DET3WW: Control Panel & Cooktop Parts

Color: White

This knob assembly replaces a worn, cracked, or missing oven/stove control knob to restore safe, precise control of burners or oven functions. Durable replacement that fits on the original control shaft for reliable operation. What it does:

• Replaces a damaged or missing control knob so you can turn burners or oven controls smoothly
• Stops slipping, cracking, or loose knob problems that prevent setting temperatures or burner levels
• Restores a secure grip and accurate user input for cooking controls
• Matches original fit for proper alignment with control shafts

• One knob assembly

• Simple push-on replacement; pull the old knob straight off the shaft and push the new knob on until it seats
• Make sure controls are in the OFF position before removing or installing the knob

This knob locator centers and stabilizes a range control knob on the appliance, restoring proper alignment and reliable knob positioning for accurate temperature or setting selection. What it does:

• Guides and holds the control knob on the control shaft so settings line up correctly
• Prevents the knob from wobbling, slipping, or rotating out of position during use
• Helps restore positive detents and consistent user feedback when turning the knob
• Commonly replaced when knobs no longer point to the selected setting or feel loose

• Designed for installation on the control shaft behind the knob; remove power before servicing
• Often accessed by removing the knob and any trim; verify correct orientation before snapping into place
• No special tools typically required, but use care to avoid damaging the control panel or shaft

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

This control board is made for use with ovens, stoves, and ranges. It is the main component responsible for ensuring all the oven components are working properly. It takes care of making sure the oven heats up, the stove has heat on the right burners, and systems are turned on and off when expected. The control board has a display on the front with time and temperature for the user. Due to the many small parts associated with the control board, it can malfunction or become damaged. If this occurs, the part should be replaced.Replacing the control board on a range may require tools like a screwdriver, wrench set, and putty knife. First, make sure the range is unplugged and the gas supply is shut off. Pull the range out and remove the back shield to the control board. Next, take a photo of where the wires are located on the control board. Disconnect them and pull out the control board. Reconnect the wires to the new component and reassemble.This control board is made to be used with ovens, ranges, and stoves made by General Electric. This is an authentic OEM replacement part sold on an individual basis.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Replacement oven door hinge for gas and electric ranges. Secures and supports the oven door for smooth opening and closing. Needed when hinge is bent, broken, or door sags. Direct fit replacement part.

Cast iron grate for the left front burner position on your range cooktop. Replaces cracked, broken, or missing grates to provide stable support for pots.

Bracket assembly for range installation and structural support. Replaces damaged, bent, or missing mounting brackets. Secures components in place.

Pin locator for gas ranges. Secures and aligns burner components in proper position. Replace if broken, missing, or worn to restore proper burner assembly.

Single fastening screw for range components. Replaces missing, stripped, or damaged screws that secure panels, brackets, and trim pieces in place.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Secures cooktop panels, brackets, and components on your gas range. Replace missing, stripped, or damaged screws to eliminate rattles and restore alignment.

Covers and protects the indicator lamp opening on your range control panel. Replace when cracked, discolored, or missing to restore visibility. Confirm fit with your model number.

Medium burner cap for gas cooktops and ranges. Sits atop the burner head to distribute flame evenly. Replace if cracked, chipped, or worn from use.

Burner cap sits atop the burner base on gas ranges and cooktops. Replace if cracked, chipped, discolored, or missing to restore a clean appearance.

Replacement burner cap for gas cooktops and ranges. Sits atop the burner head to distribute flame evenly. Replace if cracked, chipped, or worn.

Burner cap assembly covers the burner head on gas cooktops and ranges. Replace cracked, stained, corroded, or missing caps to restore appearance.

Replacement small surface burner for gas ranges and cooktops. Installs on stovetop to provide heat for smaller pots. Replace if damaged, discolored, or missing.

Burner base holds and secures the gas burner assembly on your cooktop. Replace if cracked, warped, or corroded to restore proper burner seating.

Surface burner element for cooktops and ranges. Installs on cooktop surface. Replace when burner is cracked, painted finish is damaged, or worn.

Replace your cracked, warped, or missing medium surface burner. Ensures even heat distribution for cooking tasks. Installs on gas range cooktops.

Fixes uneven yellow flames or weak burner performance. This venturi mixes LP gas with air for proper combustion. Moderate DIY repair in 30 minutes.

Color: White. Mounting screw for end caps.

This ground harness is a short wire assembly that connects an appliance's metal chassis to the electrical grounding system, helping ensure safe operation and reduce the risk of electric shock. It replaces a worn or damaged ground lead to restore proper grounding. What it does:

• Provides a secure path to ground between the appliance frame and the house grounding conductor
• Helps prevent electrical faults from energizing the chassis
• Commonly needed if the original wire is corroded, frayed, or has a broken terminal
• Supports safe operation after repairs that require re-establishing chassis ground

• One ground harness (wire lead) as shown

• Install only with the appliance disconnected from power; follow all safety guidelines
• Attach to the designated grounding point on the chassis and to the appliance ground or terminal using the provided or existing fasteners
• Use appropriate tools and replace any damaged connectors
• No additional parts are included unless explicitly listed

Insulation shield that installs behind the range control panel. Protects control board and wiring from oven heat. Replace if cracked, damaged, or missing.

Flat cooking surface that fits over range burners for pancakes, eggs, and sandwiches. Replace if cracked, warped, or missing from previous owners.

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.

Decorative nameplate badge for oven and range front panels. Replaces missing, worn, or damaged emblems to restore factory appearance. Includes adhesive.
