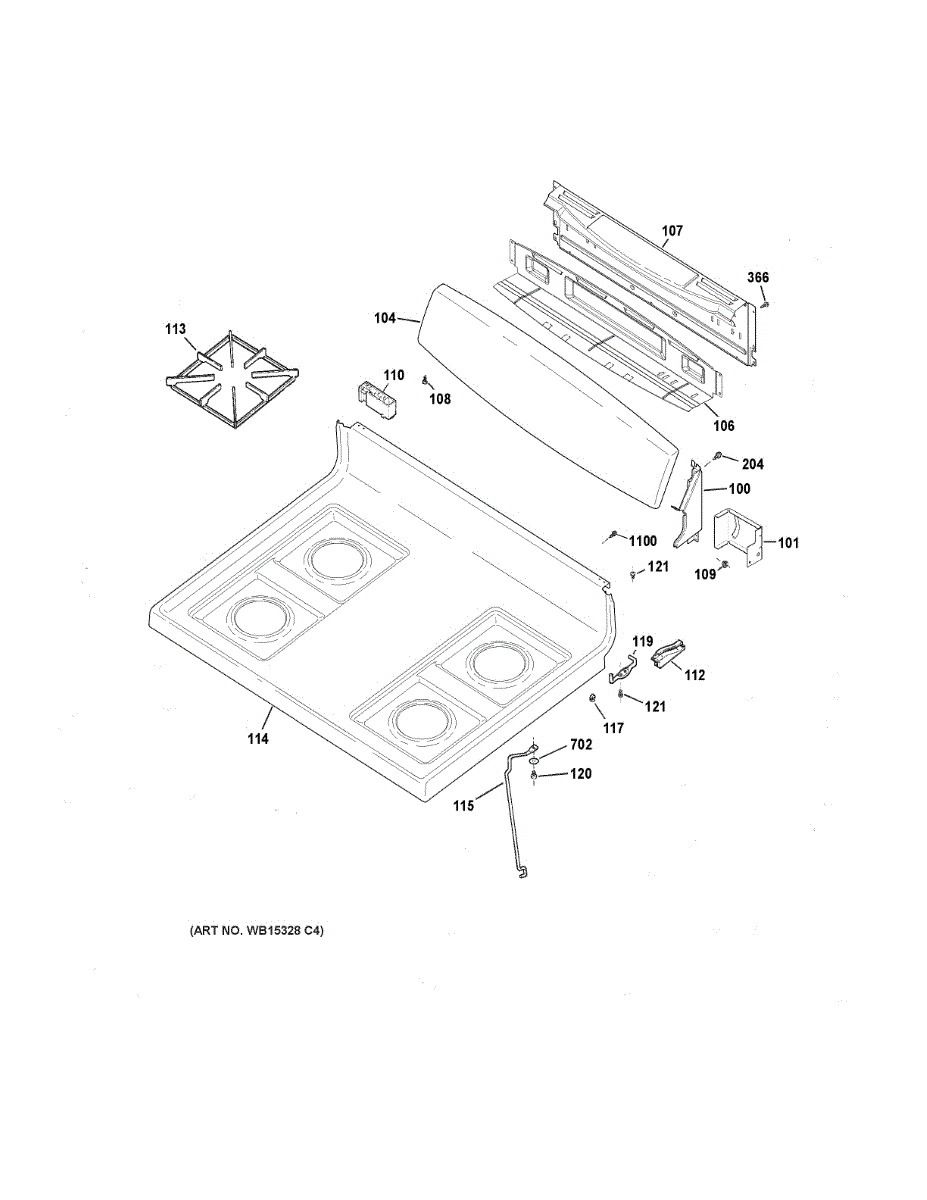

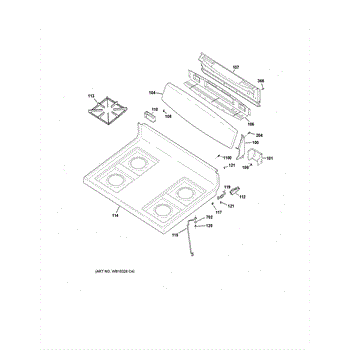

Parts for Ge JGBS10DEF1CC: Control Panel & Cooktop Parts

Color: White. Mounting screw for end caps.

Includes 12 speed nuts.

The Ignition Module is an OEM part for GE ranges. This component plays a critical role in controlling oven ignition by generating high-voltage sparks to light the burners. It consistently monitors flame presence and re-ignites burners as needed throughout baking and cooking.

Symptoms of a bad ignition module include:

• Delayed burner ignition or failure to ignite at all
• Unstable or intermittent burner flames
• Repeated false error codes related to ignition

Causes can be short-circuiting or water damage of electronic components over extended use. This can lead to inconsistent spark outputs and faulty flame sensing.

Reliable ignition is essential for safe and trouble-free cooking. This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the left side guide holder. For right side use WB14K1.

The Burner Grate is an OEM part for GE ranges. It provides a stable and durable surface to hold cookware above the burner, ensuring even heat distribution during cooking.

The burner grate should be replaced if it becomes damaged or worn out. Causes of a bad burner grate can include prolonged exposure to high heat, accidental impacts, or the enamel coating wearing off over time.

Symptoms of a bad burner grate include:

• The grate becoming unstable or wobbly
• Visible cracks or chips in the material
• Difficulty in positioning cookware securely
• Uneven cooking due to instability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the right side guide slide.

This is the left side guide slide. For right side use WB14K3.

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Size: 10-32 GXTT FLP.595 S
