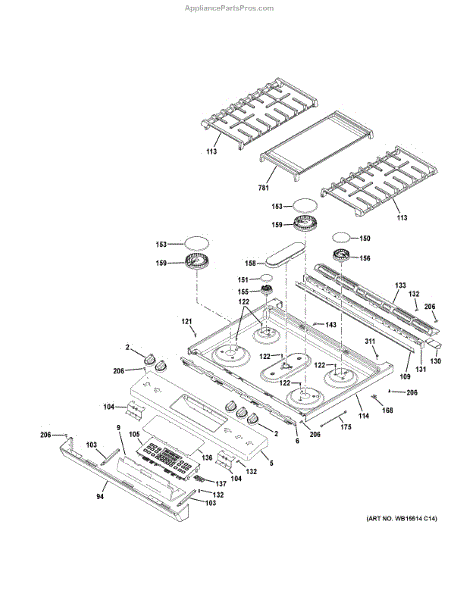

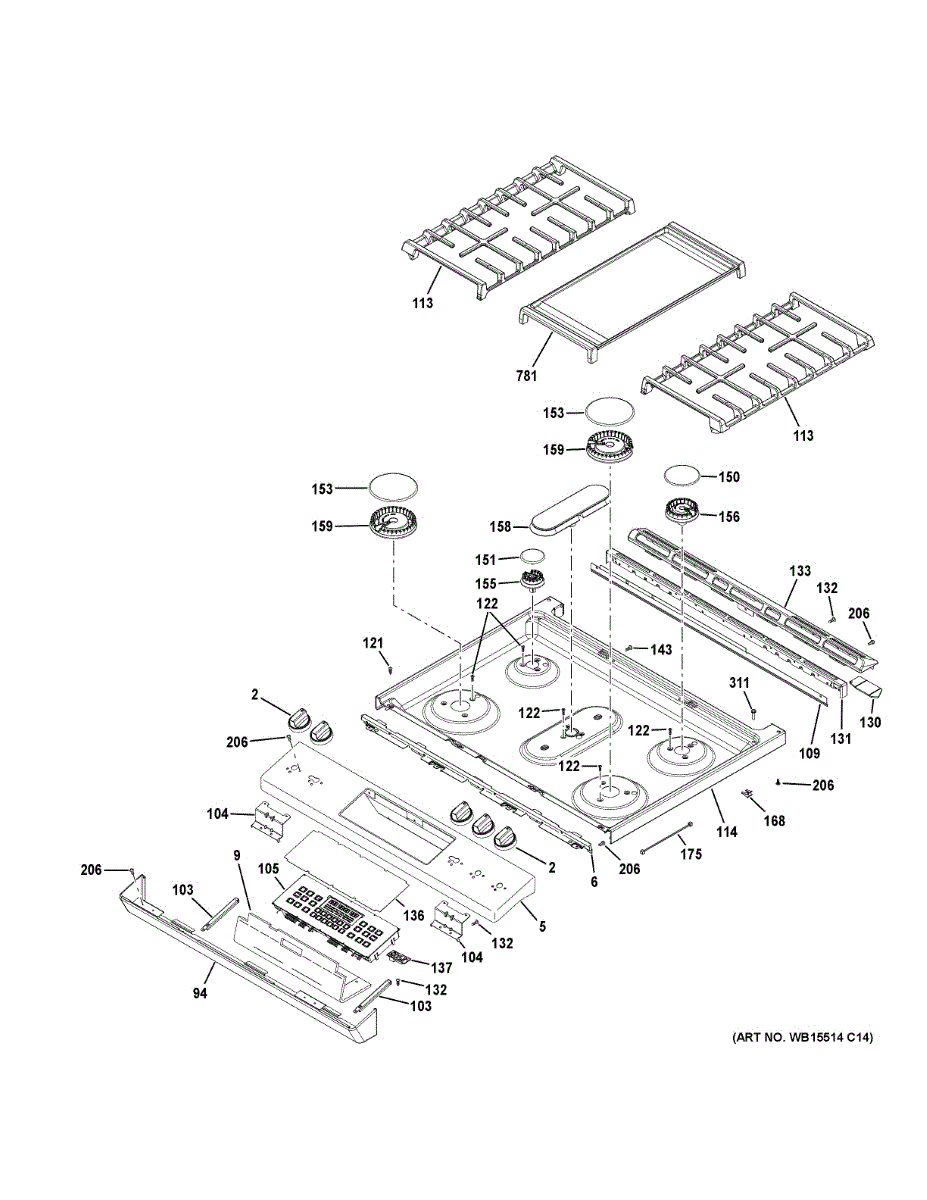

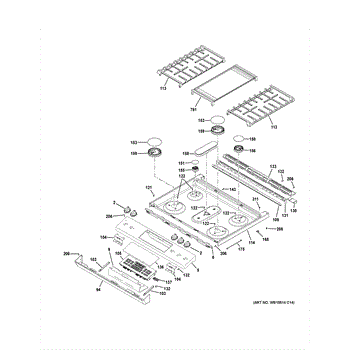

Parts for Ge JGS760DP3BB: Control Panel & Cooktop Parts

This mounting bracket provides a secure support point for internal appliance components, restoring proper fit and stability. Replaces a cracked or broken bracket to reduce rattling and keep parts aligned. What it does:

• Secures internal components to the cabinet or frame to prevent movement
• Restores proper alignment when original bracket is cracked, bent, or missing
• Helps reduce vibration and rattling caused by loose supports
• Supports safe operation by keeping wiring and parts in their intended positions

• One mounting bracket

• Disconnect power before beginning any repair to avoid shock or injury
• Verify bracket orientation and fastener locations before removing the old part
• Use appropriate sized screws or bolts; reuse OEM fasteners when they are undamaged

A replacement mounting bracket that secures internal appliance components and restores proper support and alignment. Replacing a damaged bracket helps stop sagging parts and rattling for more stable operation. What it does:

• Holds and stabilizes an internal component or assembly to maintain correct positioning
• Prevents movement that can cause noise, vibration, or rubbing against other parts
• Restores secure fastening when the original bracket is bent, cracked, or broken
• Helps maintain proper fit and alignment of panels or assemblies for reliable operation

• Disconnect power (and water, if applicable) before starting any repair
• Use basic hand tools; keep fasteners from the original part to ensure correct fit
• Verify bracket orientation and attachment points before tightening
• Do not reshape or force the bracket; replace if damaged to maintain safe operation

This RC19 control (flashed) is the electronic oven/range control board that manages cooking functions and the user display, restoring responsive controls and proper cycle operation when the original control fails. What it does:

• Regulates oven temperature, bake/broil cycles and timed functions so the unit follows selected cook settings
• Powers and updates the control display and front-panel indicators for accurate status feedback
• Replaces faulty logic causing unresponsive touchpads, blank or erratic displays, or control error codes
• Helps resolve intermittent start/shutoff or incorrect cycle behavior tied to a failed control board

• One flashed RC19 control board (as shown)

• High-level replacement only; disconnect power at the breaker before starting to avoid shock or damage
• Handle the board by its edges and avoid touching components; static discharge can damage electronics
• Verify the part number on the existing control before ordering; mounting and connector locations must match

The Grate Assembly is an OEM part for GE ranges. This part consists of the grates that sit above the burner components on gas stove tops.

The grate assembly is responsible for providing a stable platform for cookware and making sure there is even heat distribution for cooking.

Causes of a bad grate assembly can include warping or damage from continued exposure to heat. Burned on or stuck-on debris that compromises heat transfer is also a common issue.

Symptoms of a failed grate assembly include:

• Grates that are loose, wiggly, or detached from their mounting points
• Grates with cracks, holes, or broken tines that no longer fully cover the burners
• Grates that are heavily discolored or corroded from burned-on foods or liquids

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

This trim kit restores the finished edge and appearance of your appliance, covering worn, dented, or chipped surfaces for a clean, factory look. It's a direct-fit cosmetic replacement designed to refresh exterior styling. What it does:

• Replaces damaged or worn exterior trim to restore the appliance's finished appearance
• Hides dents, chips, and scratches along the appliance edge where the trim mounts
• Helps maintain a uniform, factory-style look after repairs or panel replacement
• Fits where OEM trim has become loose, bent, or cosmetically degraded

• Installation generally requires removal of the old trim and fastening the new trim in place with existing or supplied hardware
• Use basic hand tools; keep panels supported to avoid scratching adjacent surfaces
• Disconnect power to affected appliance panels if panels must be moved for access

This is a stainless-steel machine screw used to secure components in appliances. Its #8-18 thread and 3/8" length provide a reliable, corrosion-resistant fastening where a short machine screw is required. What it does:

• Fastens panels, brackets, or small assemblies with a #8-18 threaded hole
• Resists rust and corrosion in humid appliance compartments
• Provides a short, secure hold where space is limited
• Compatible with standard #2 Phillips or compatible driver bit for installation

• Power off and unplug the appliance before servicing
• Use the correct driver to avoid stripping the head
• Do not overtighten; stop when snug to avoid thread or component damage
• If replacing multiple fasteners, reuse only the same size and type

This vent trim is the exterior trim piece that finishes and protects the appliance vent opening, restoring a clean appearance and helping direct airflow. It replaces a cracked, dented or missing vent surround. What it does:

• Covers the vent opening and hides raw edges for a finished look
• Helps channel exhaust airflow and stabilize the vent opening
• Prevents debris and large particles from entering the vent gap
• Stops rattling or movement caused by a loose or damaged trim
• Restores proper fit and alignment of the vent surround

• One vent trim piece

• Disconnect power to the appliance before starting any work
• Remove the old trim by loosening retaining screws or clips, then position the new trim and secure with the original fasteners
• Use basic hand tools; avoid overtightening screws to prevent cracking
• If metal edges are sharp, wear gloves and work carefully

The GEA3 Wi-Fi communication board provides the refrigerator's wireless interface so the appliance can connect to your home network and the manufacturer's mobile services. Restores smart features like remote monitoring and alerts when the original board fails. What it does

• Enables the refrigerator to join a home Wi-Fi network for app connectivity and smart features
• Handles wireless communication between the appliance and cloud services
• Works with the appliance's main control system to send/receive settings and notifications

• One GEA3 Wi-Fi communication board (single wireless interface module)

• Disconnect power to the appliance before replacing the board to avoid shock or damage
• Handle the board as an electrostatic-sensitive device; avoid touching contacts and use ESD precautions if possible
• Reinstall per the appliance wiring diagram/service manual and secure all connectors firmly
• After installation, power the appliance and follow the manufacturer's pairing or network setup steps (may require app re-registration)

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oval Burner Assembly is an OEM part for GE ranges. This part provides an even heat distribution across the cooktop, facilitating efficient cooking with its distinctive oval shape.

Common causes of a bad burner assembly include normal wear and tear, clogging due to food debris, or damage from overheating or impact.

Symptoms of a bad Oval Burner Assembly include:

• Inconsistent flame or uneven heating
• Burner not igniting or maintaining a flame
• Visible damage or deformities on the burner
• Unusual odors or gas leaks when the burner is in use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Burner is an OEM replacement part for GE ranges. It is responsible for safely producing gas flames to heat the range surface. Whether baking, broiling, or simmering, the range burner must provide precise flame control and heat distribution.

Causes of a bad range burner can include cracked or rusted burner heads that improperly direct the flame, clogged or restricted gas ports that disrupt fuel flow or wear to ignition components that affect lighting.

Symptoms of a bad range burner include:

• Irregular or uneven heating of the range surface
• Difficulty controlling burner flame heights
• Burners that will not light or stay lit
• Singed, scorched, or burnt foods
• Gas leaks around burners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Clip Igniter is an OEM replacement part for GE ranges.

This GE OEM replacement is also compatible with some Hotpoint, Sears Kenmore, and RCA models.

This is a replacement 8-18 x 5/16 machine screw used to secure appliance panels and components. It restores proper fastener fit so parts stay mounted and operate safely. What it does:

• Fastens panels, brackets, and small components where an 8-18 x 5/16 screw is specified
• Prevents loose parts, rattling, and misalignment caused by missing or worn screws
• Provides the correct thread size and length for reliable reattachment
• Works wherever the OEM calls for this specific 8-18 x 5/16 screw

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to threads or mounting surfaces
• If replacing multiple fasteners, use matching screws to maintain proper fit and function

The Range Surface Burner Grate Bumper is an OEM replacement part for GE ranges. The bumper protects the burner grate from scratching or denting the cooktop surface below when lowered into position.

Symptoms of a damaged or missing bumper include:

• Scuff marks or abrasions on the cooktop under the burner grate area
• Noise or rubbing sensations when operating burners
• Loose or detached fit of the burner grate on the range surface

Causes stem from regular use of the burner grates over many cooking cycles. Natural wear and repeated contact with surfaces can degrade bumpers over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges and cooktops.

This is the flat griddle plate that sits over the center burners on compatible cooktops/ranges. It provides an even cooking surface for pancakes, sandwiches, and more, and replaces a worn or missing griddle so heat is distributed properly.

• Creates a level, flat surface over the center burners for even heating
• Helps improve cooking results when the original griddle is warped, worn, or damaged
• Can reduce sticking and uneven browning compared to a deteriorated plate
• Restores intended fit and stability on the cooktop when the original no longer seats correctly

• Let the appliance cool completely and shut off gas/electric supply before handling
• Lift off existing center grate/griddle once cool; position the new griddle so it seats securely on the designated supports
• Ensure the griddle is stable and clear of burner flames before use
• Season/condition and clean per your range's Use & Care to maintain performance
