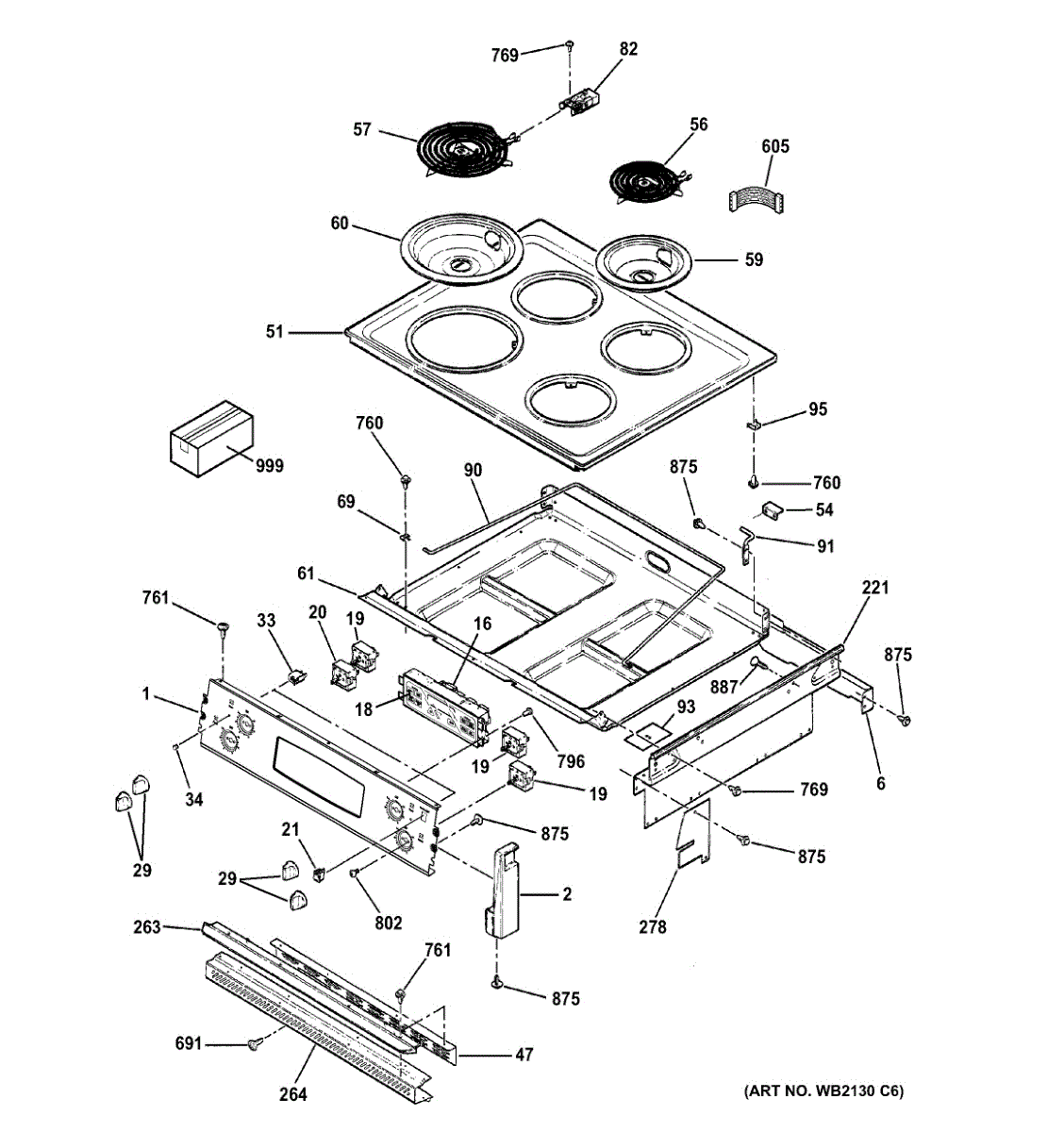

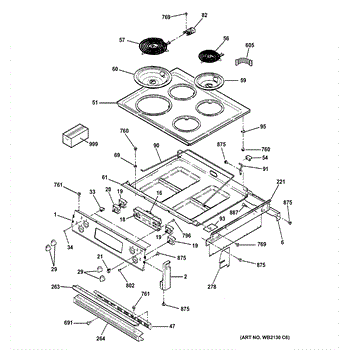

Parts for Ge JM250DF1BB: Control Panel & Cooktop Parts

This black plastic endcap installs on the right side of your range. Replace if the original cap is cracked, broken, or missing to restore appearance.

Replace your range's endcap if it's cracked, broken, or missing. This trim piece installs on the control panel or edge to provide a finished look.

Back panel for electric ranges. This housing cover attaches to the rear of the unit. Replace if cracked, damaged, or missing to restore appearance.

Fix unresponsive buttons, broken timer, or non-working oven controls. This control board manages all cooking operations. DIY repair in about 1 hour.

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Burner stuck on high or won't heat? This 8-inch infinite switch controls heat output on electric ranges. Simple 20-30 minute DIY replacement.

This is a black rocker switch used to control a function on compatible ranges/cooktops. Replacing a worn or inoperative switch restores positive on/off control and reliable operation of the connected feature.

• Controls an appliance function (such as a light or igniter circuit) with a single on/off action
• Common failure signs: switch won't stay on, no response when toggled, intermittent operation, or physical damage/discoloration
• Direct-fit replacement designed for the original switch location
• Helps restore safe, predictable control to the appliance

• Disconnect power and, if applicable, shut off gas before servicing
• Access is typically from the control panel; retain orientation of wires and note terminal positions
• Transfer wires one at a time to the new switch to avoid miswiring
• Inspect connectors for heat damage; replace damaged terminals before reassembly

Replace a cracked, broken, or missing control knob on your electric range. Pushes onto the control shaft for reliable heat adjustment and smooth operation.

Safety bracket that secures your range to the wall or floor to prevent tipping. Replace if damaged, bent, or missing during appliance relocation.

Burner not heating or heating unevenly? This surface heating element restores even heat. Easy DIY install takes minutes—just plug in and secure.

The Surface Heating Element is an OEM part for GE ranges.  The element is a large 8" plug-in style burner. This element is designed to provide consistent and even heat for cooking on the stovetop. It is typically used for tasks such as boiling, simmering, and frying, ensuring that your cookware heats up efficiently.

You should replace the surface heating element if it becomes faulty. Causes of a bad surface heating element can include wear and tear from regular use, electrical faults, or physical damage. Over time, the element may degrade, affecting its ability to heat properly.

Symptoms of a bad surface heating element include:

• Element not heating up
• Inconsistent or uneven heating
• Sparks or electrical shorts
• Visible damage or burning on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement 6-inch drip pan installs under small burner element on electric ranges. Replaces cracked, burnt, rusted, or worn bowls. Easy DIY install.

Replace your cracked, rusted, or stained 8-inch range drip pan. Installs under the large burner to catch spills and protect your cooktop surface.

Bottom burn box replaces the lower gas burner housing in compatible gas ovens, securing the burner assembly and helping direct heat for steady cooking while protecting internal oven components from flame and debris. What it does

• Houses and positions the lower burner assembly to ensure proper flame direction and ignition.
• Channels heat across the oven floor for more even cooking.
• Shields internal components from direct flame, food spills and debris.
• Common symptoms it can address: burner won't stay lit, irregular or uneven heating, visible corrosion or physical damage to the burner area.

• Always shut off gas supply and electrical power before inspecting or replacing gas-oven components.
• Inspect surrounding gaskets, mounting hardware and the burner assembly; replace any damaged parts.
• Follow OEM service instructions and safety guidelines specific to your oven model.

Support rod clip secures internal components in your range. Replace if loose, broken, or causing rattling noises. Verify fit with your model number.

Burner not heating or terminal block burned? This electric range terminal block kit restores power to surface elements. Easy 10-15 minute DIY repair.

Replacement main top hinge for electric ranges. Secures and supports the cooktop when lifted for access. Needed when original hinge is cracked or broken.

This trim piece covers the exterior edges of your wall oven or range. Replace yours if it's cracked, broken, or missing to restore a finished look.

Black decorative vent trim that covers the vent opening and restores a finished appearance. Replace if cracked, discolored, or missing to protect components.

This maintop wire harness routes power and signals to the cooktop controls and surface elements so burners and switches operate reliably. Replaces a damaged or burned harness to restore proper electrical connections at the cooktop. What it does

• Carries power and control wiring between the cooktop surface (maintop) and the appliance control/switches.
• Restores intermittent or failed burner operation caused by broken, frayed, or burned wires.
• Prevents arcing or shorts from damaged insulation or loose terminals when replaced.
• Keeps wiring organized and secured to reduce stress and premature wear.

• One maintop wire harness.

• Disconnect power to the appliance before attempting any service to avoid shock or injury.
• Inspect terminals and connectors for damage; replace the harness if connectors are corroded or pins are bent.
• Route and secure the harness the same way as the original to avoid pinching or contact with hot components.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

Black. 8-18 AB HXW 3/8
