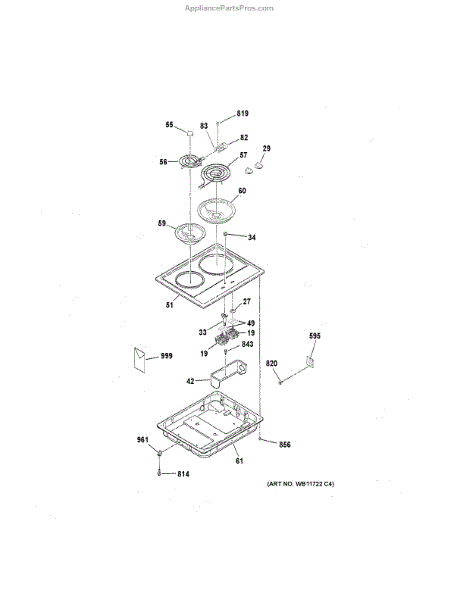

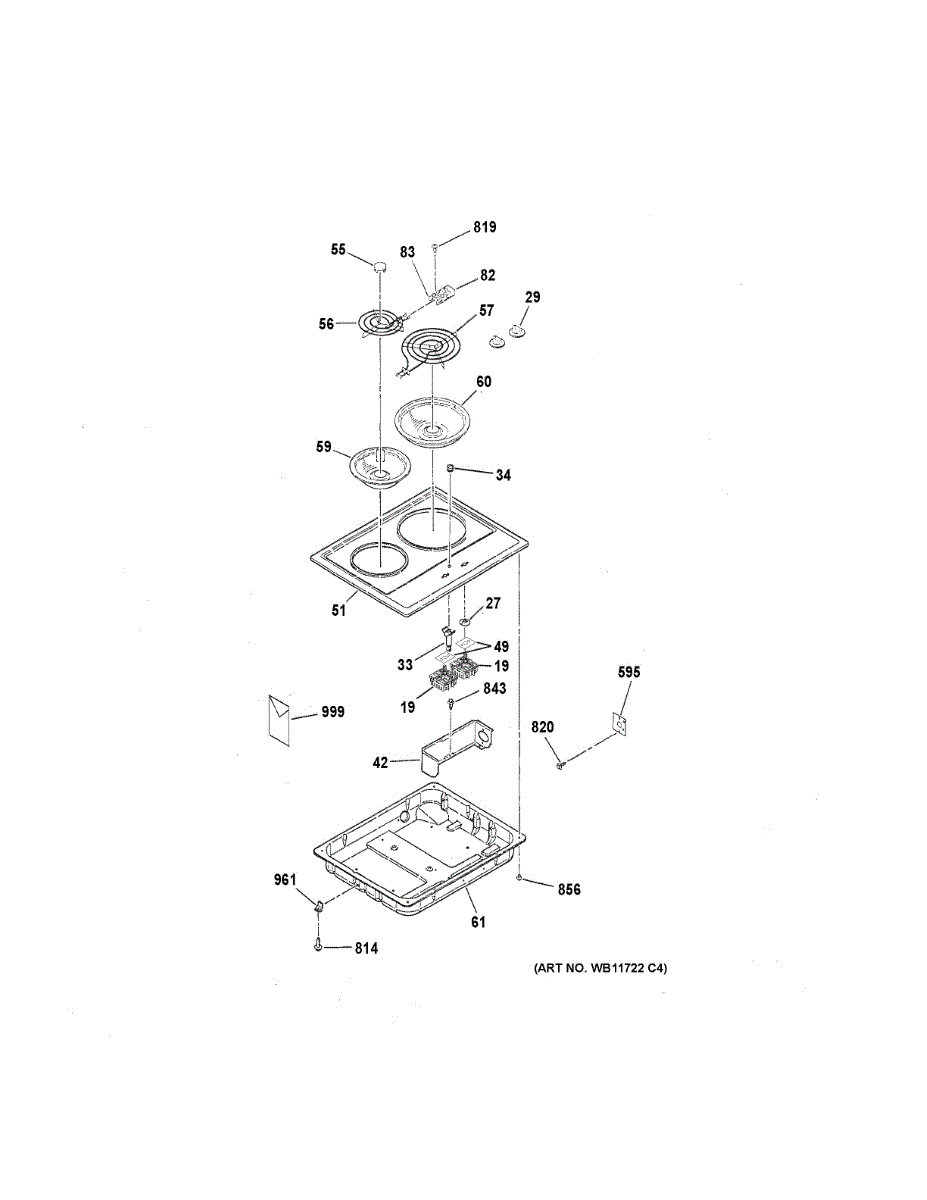

Parts for Ge JP201CB2SS: Control Panel & Cooktop Parts

Restore reliable heat on your range's small burner with this 6-inch surface coil element. Replacing a worn or burned-out coil brings back consistent temperature response and dependable everyday cooking performance.

• Supplies direct electric heat to a 6-inch cooktop burner
• Replaces a coil that is warped, cracked, or has an open/burned-out section
• Common symptoms include: burner won't heat, heats unevenly, or works intermittently
• Visible damage, hot spots, or arcing at the terminals can indicate failure

• Disconnect power by unplugging the range or switching off the circuit breaker
• Lift the old coil and pull straight out from the receptacle to remove
• Inspect the element receptacle/terminal block for discoloration or pitting; replace if damaged
• Align terminals and support, insert fully, and ensure the element sits level in the drip bowl

The 8" Surface Element is an OEM part for GE ranges. It is an 8-inch heating element that fits into the cooktop to provide heat for cooking.

Causes of a bad surface unit include wear and tear from regular use, damage due to heavy cookware, or electrical issues that prevent the element from heating correctly.

Symptoms of a bad surface unit include:

• The burner not heating up
• Uneven heating or hotspots
• Visible damage or burn marks on the element

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Electric range 6 inch surface unit drip bowl. Color: Chrome. It measures about 8 inches in diameter at its widest point at the top. For an 8 inch large drip pan order WB32X106

The 8-Inch Large Drip Pan is an OEM part for GE ranges and cooktops. This drip pan is designed to sit beneath the heating element, catching any spills, drips, or overflow that occurs during cooking. It helps to protect the range from food debris and liquids, making cleaning easier and preventing damage to the stove's surface.

Symptoms of a failing Drip Pan include:

• Visible wear, rust, or corrosion on the pan
• Difficulty in fitting the pan securely beneath the heating element
• Accumulation of burnt food or discoloration that cannot be cleaned
• The pan becoming warped or damaged from high heat exposure

Causes of a bad drip pan can include regular wear and tear from frequent use, exposure to high temperatures, and spills from cooking. Over time, these factors can lead to rust, corrosion, and other forms of damage that necessitate replacement.

This OEM GE part is also compatible with some models from Hotpoint, RCA, and Kenmore.

This terminal block provides a secure, heat-resistant junction for appliance wiring, ensuring stable power to the connected component. Replacing a damaged or charred block restores safe operation and helps prevent arcing, intermittent power, or failure.

• Creates a solid connection point between appliance wiring and the attached component
• Insulates and separates conductors to reduce shorts and arcing
• Helps deliver consistent power for reliable performance
• Replace if the block is cracked, burned, melted, or if terminals are loose
• Common symptoms include intermittent operation, no heat/run condition, visible scorching, or a burning odor

• Disconnect power at the breaker/fuse and verify no voltage is present before servicing
• Photograph or label wires; move one lead at a time to the matching terminals
• Tighten terminal screws/fasteners securely to ensure firm, low-resistance connections
• Inspect wire ends for heat damage and replace any compromised connectors with high-temperature, manufacturer-approved fittings

This mounting bracket secures the surface element terminal block to the cooktop. Replacing a bent or missing bracket helps keep the coil element connection aligned and stable so the burner plugs in firmly during use.

• Provides a fixed mount for the surface element receptacle beneath the burner opening
• Helps prevent the terminal block from shifting, sagging, or rotating when inserting/removing the element
• Common symptoms include a loose or wobbly receptacle, element not seating fully, or visible bracket damage/missing bracket
• Replace if the bracket is bent, broken, or cannot hold the receptacle in position

• Disconnect power at the breaker and allow the cooktop to cool completely
• Remove the surface element and lift/open the cooktop to access the terminal block area
• Transfer the receptacle/terminal block onto the new bracket and secure with existing hardware, ensuring correct alignment
• The element prongs insert smoothly before restoring power

A replacement thumb screw that secures panels and components without tools for quick hand-tightening. Ideal for small appliance access points where frequent removal or adjustment is needed. What it does:

• Provides a hand-tightened fastening point for removable panels and brackets
• Replaces stripped or lost thumb screws to restore secure, tool-free access
• Helps stop rattling or looseness caused by missing or damaged screws
• Fits 10-24 threaded holes with a 2.0" length for proper engagement

• Hand-tighten; avoid using pliers or power tools to prevent stripping threads
• Confirm thread size and length match your application before installing
• If metal fatigue or thread damage is present, replace mating fastener or insert as needed
• Disconnect power to the appliance when working near electrical components

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This element wire harness connects the heating element to your range or wall oven's internal wiring, delivering power for proper heating. Replace a burned or brittle harness to restore consistent oven performance and safe, reliable operation.

• Supplies electrical current from the appliance wiring to the heating element
• Maintains secure, heat-resistant connections at the element terminals
• A damaged harness can cause no heat, slow preheats, or intermittent heating
• Visual clues include burned insulation, discoloration, or loose/melted connectors at the element

• Disconnect power at the breaker and allow the oven to cool completely
• Access element connections from the rear panel or inside the oven (model dependent)
• Note routing; move one connection at a time to the new harness and ensure terminals are fully seated
• Route wires away from sharp edges and hot surfaces; verify secure connections before restoring power
