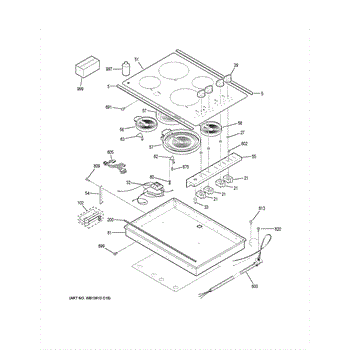

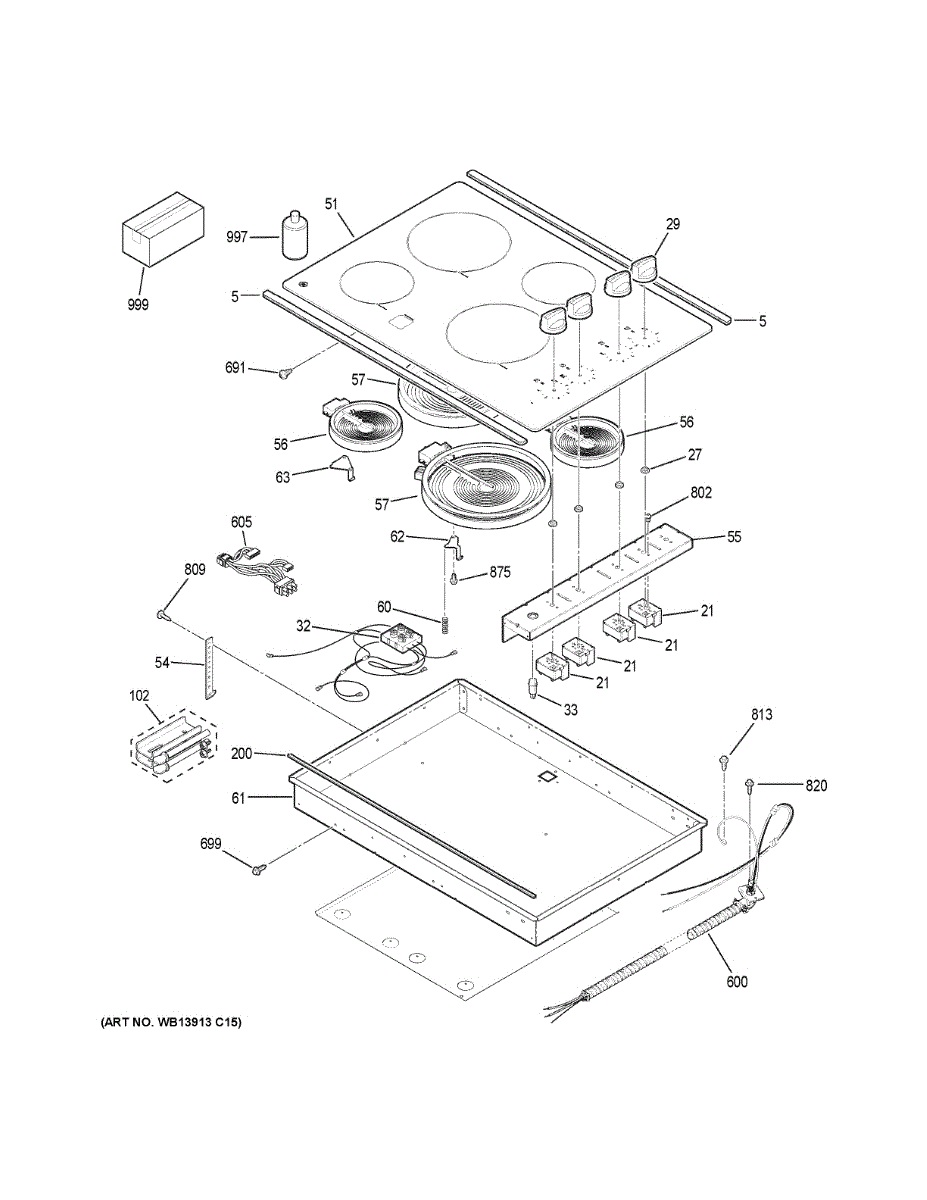

Parts for Ge JP3030SW1SS: Control Panel & Cooktop Parts

This trim assembly replaces a damaged or worn door trim to restore the appliance's finished appearance and proper edge coverage. It provides a clean, factory look and helps protect the door edge from dings and wear. What it does:

• Replaces cracke

Burner won't heat or stuck on high? This infinite switch and seal kit restores heat control and protects against spill damage. Moderate DIY repair.

Replace a broken or cracked cooktop control knob that won't turn or adjust temperature settings. Direct fit stainless steel knob installs in minutes.

Controls status lights on your cooktop, providing visual alerts during operation. Replace when indicators fail or become dim. Snaps into place for easy installation. Verify fit with your model number.

Hold down bracket secures cooktop components in place. Replace if bent, broken, or missing to properly mount internal parts and maintain stability.

Burner not heating? This 5.5" radiant element fits beneath glass cooktops. Common fix for non-working burners. Moderate DIY, 20-30 minutes to replace.

Replace a non-heating or weak 8-inch surface burner with this radiant element. Requires lifting the cooktop and Torx screwdriver. Moderate DIY repair.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include

Fixes loose or wobbly burners caused by bent or cracked mounting hardware. This bracket secures your radiant element firmly to the cooktop surface.

This mounting bracket secures a radiant cooktop element to the range frame so the element stays properly positioned for safe, reliable heating. Replacing a damaged bracket restores stable element support and alignment. What it does:

• Holds the radiant surface element firmly in place to prevent movement during use
• Maintains correct element spacing for even heat and safe operation
• Prevents the element from sagging, vibrating, or shifting when knobs are turned or cookware is moved
• Helps avoid intermittent contact that can cause heating issues

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle the glass/ceramic cooktop and element carefully to prevent cracking or injury
• Reuse existing fasteners if undamaged; replace hardware only with OEM-specified parts

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the c

Foam seal tape creates an airtight barrier between your cooktop and countertop, preventing spills from dripping into cabinets. Replace when worn or gaps appear.

Wire harness assembly for electric cooktop control systems. Connects power and control circuits. Replace if wires are frayed, damaged, or corroded.

Wire harness assembly for electric cooktop burner control. Replaces damaged, frayed, or disconnected wiring. Ensures proper electrical connection.

Wire harness for the right side of your electric cooktop's main top assembly. Replaces damaged, frayed, or burnt wiring harnesses. Essential component.

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw

Replacement mounting screw for cooktops and ranges. Secures cooktop components to the frame. Replace if screw is stripped, missing, or damaged.
