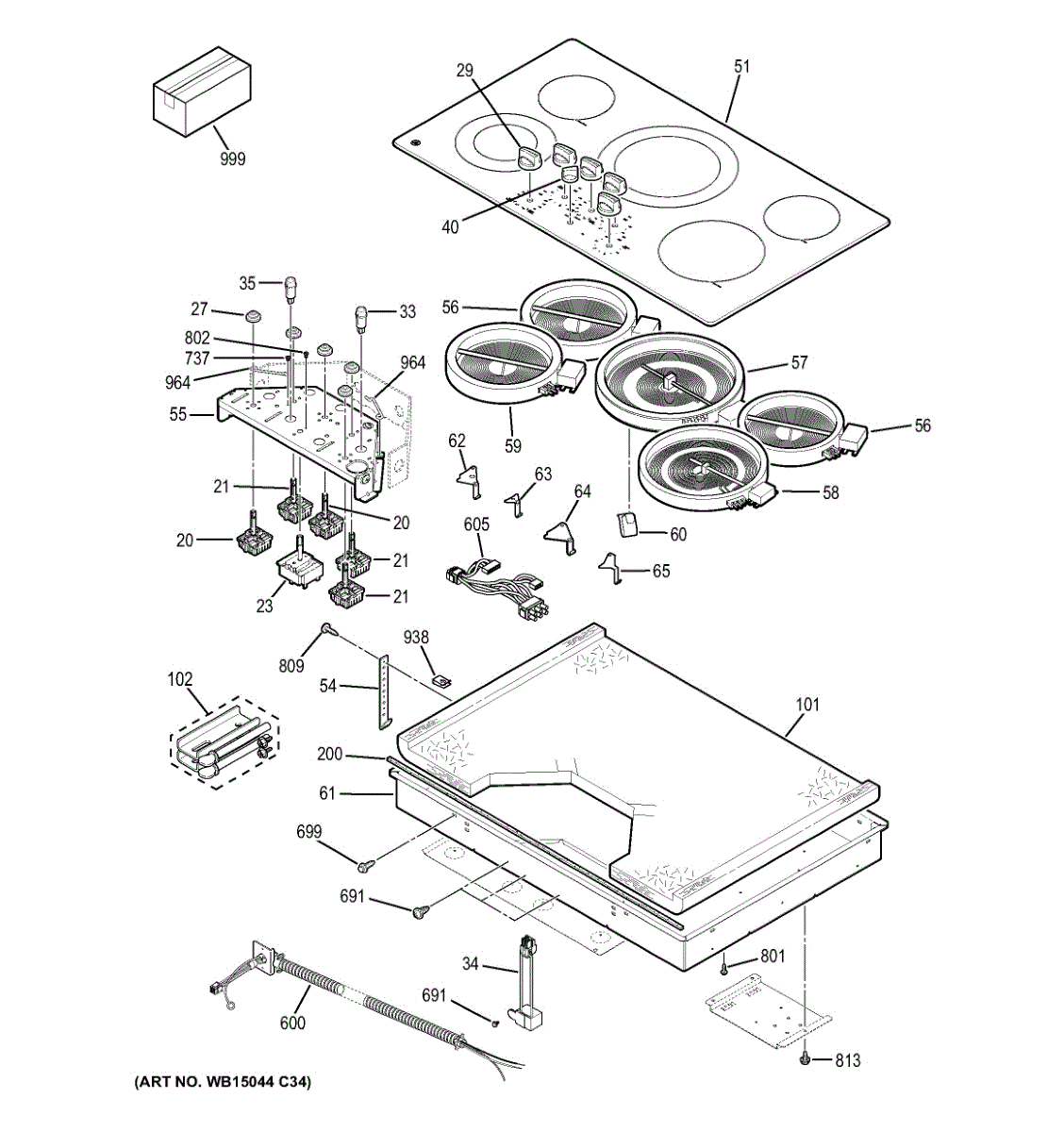

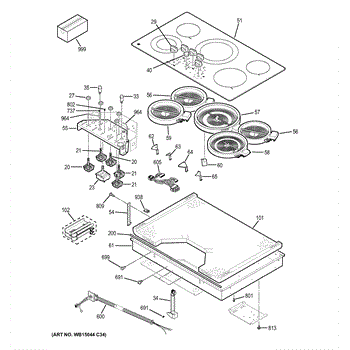

Parts for Ge JP3536DJ1BB: Control Panel & Cooktop Parts

This replacement seal fits around an electric cooktop infinite switch to help keep moisture, grease and debris out of the switch assembly for more reliable burner control. Simple part to restore proper sealing at the control. What it does:

• Seals the gap between the infinite switch and the cooktop/control panel to help prevent liquid and crumbs from entering the switch cavity.
• Helps reduce intermittent contact, arcing, or corrosion that can cause burners to act erratically.
• Useful when an existing seal is cracked, flattened, missing or soaked with grease.
• Helps maintain cleaner switch operation and can prevent premature switch failure linked to contamination.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Remove the control knob and access the switch per your model's service instructions; replace the old seal with the new seal seated fully around the switch body.
• Inspect the switch and surrounding area for damage or excessive corrosion; replace the switch if damaged.

Restore smooth heat control to a surface burner and help protect the control from spills. This kit combines a replacement infinite switch with a protective shaft seal to regulate element power and guard the switch against moisture intrusion.

• Regulates power to the surface element for adjustable heat levels
• Replaces a faulty control that causes no heat, only high heat, won't turn off, or erratic temperatures
• Shaft seal helps block liquids and debris from entering the control shaft area
• Labeled terminals aid in transferring wires from the old switch to the new one

• Disconnect power at the breaker before servicing
• Access the control panel; remove the knob and panel as needed to reach the switch
• Note/photograph wiring; transfer wires to matching terminals on the new switch and install the shaft seal
• Reassemble, restore power, and test burner operation

A push-button lockout switch that engages the appliance's control-lock feature to prevent accidental or child operation of the controls. Restores the control lock function so settings can be secured or released when needed. What it does:

• Acts as the user-accessible control-lock (child lock) switch for the control panel.
• Signals the main control board to enable or disable button and touch-pad input.
• Common symptom fix: control lock won't engage or disengage when pressed.
• Common symptom fix: control buttons appear unresponsive or the lock indicator doesn't change.

• Disconnect power to the appliance before attempting service to avoid shock or injury.
• Access typically requires removing the control console or panel.
• Handle electrical connectors carefully; replace only with the exact OEM-numbered part.

This replacement control knob restores smooth, accurate selection of settings on your range or cooktop. It attaches to the control shaft so you can reliably adjust heat and replace a worn, cracked, or missing knob.

• Provides manual selection of burner or function settings
• Press-fits onto the appliance's control shaft to restore proper feel and alignment
• Common fix for knobs that are cracked, stripped, wobbly, hard to turn, or missing
• Helps maintain a clean, consistent front-panel appearance

• Disconnect power; shut off gas supply if applicable
• Pull the old knob straight off the shaft—avoid prying against the panel
• Align the new knob's hub with the switch/valve shaft and press straight on until fully seated
• OFF aligns correctly and smooth operation before use

This indicator light replaces a failed pilot light on a range or cooktop. Mounted in the control area, it illuminates to show when a burner or function is on, restoring clear visual status and everyday safety.

• Lights when the associated heating element or oven function is active
• Provides a visible "on" cue to help prevent accidental contact
• Common symptoms: won't light, flickers/intermittent, or stays on when controls are off
• Restores proper visual feedback when the original light has failed

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; remove back cover/trim as needed
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely and reuse existing mounting hardware; ensure wires are not pinched

This black selector knob replaces a worn or broken control knob and restores clear, positive selection of oven or cooktop settings. It's a direct-fit control knob designed to match the original look and function. What it does:

• Fits onto the control shaft to allow selection of oven functions or surface element settings
• Provides a secure grip and audible/positive detents for accurate selection
• Replaces cracked, faded, or loose knobs that slip or won't turn properly
• Helps restore normal control operation without replacing the entire control assembly

• One black selector knob

• Always disconnect power to the appliance before removing or installing control parts
• Pull the old knob straight off the shaft; press the new knob onto the shaft until fully seated
• Do not force or use excessive tools—confirm spline alignment before installing
• If fit is loose or the control shaft is damaged, inspect the underlying control assembly for service

This maintop glass and frame assembly replaces a cracked or damaged cooktop surface to restore a clean, stable cooking area. It provides a finished edge and a secure mounting surface for burners and components. What it does

• Replaces damaged or cracked main cooktop glass to improve appearance and safety
• Restores a flat, stable surface so burner components seat correctly
• Helps contain spills and provides a finished edge around the cooktop opening
• Reduces risk of further chipping or glass failure from continued use

• Disconnect power to the appliance before starting any work.
• Handle glass carefully; wear cut-resistant gloves and eye protection.
• Basic disassembly of the cooktop is usually required; keep fasteners organized.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A 12-inch Haliant radiant surface element that restores heating to compatible smooth-glass cooktops. Replaces a failed 12" burner so cookware heats evenly and your range cooks reliably. What it does:

• Heats cookware on smooth-top ranges using a 12" radiant Haliant element
• Replaces a damaged, cracked, or non-heating 12" surface burner
• Common symptoms it can fix: burner won't heat, won't glow, or produces uneven heating
• Matches the original-style heating element for like-for-like replacement

• Disconnect power at the breaker before accessing the cooktop; glass tops can retain heat and pose shock risk
• Handle the glass surface and element carefully to avoid cracking or chipping the cooktop
• Follow the range manufacturer's service manual for correct wiring and mounting; replace only with the exact element specified

The 8-inch Haliant Element is an OEM replacement part for GE ranges. This component is located beneath the glass surface of the stove and is responsible for heating up the cooking area. It glows bright red at its highest setting, providing the necessary heat for cooking or boiling. The 8-inch size indicates its diameter, making it suitable for larger pots and pans.

Symptoms of a bad 8-inch Haliant Element include:

• The element not heating up or only heating intermittently
• Uneven cooking results due to inconsistent heat
• Visible damage to the element, such as burns or breaks
• Error codes on the range’s display indicating a heating issue

Causes for a malfunctioning 8-inch Haliant Element can include a burnt-out element, electrical issues like faulty wiring or connections, or problems with the control board that regulates its operation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dual radiant surface element sits beneath the glass cooktop and provides two heating zones to match your pan size. Replacing a failed element restores fast, even heating and proper control on the affected burner.

• Heats cookware via two concentric radiant circuits beneath the glass-ceramic surface
• Lets you select inner, outer, or both rings for small or large pans (via the burner control)
• Cycles with its internal limiter to maintain the temperature you set
• Common symptoms: no heat, only one ring heats, uneven or slow heating

• Disconnect power at the breaker before servicing
• Lift/remove the glass cooktop to access elements; support the glass to prevent stress or cracks
• Transfer wiring and any mounting brackets from the old element to the new one, moving one connection at a time and documenting positions
• Test the burner for proper operation before reassembly

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bracket secures a radiant surface heating element to the cooktop assembly, keeping the element aligned and stable for consistent heating. It's a direct-fit mounting piece used when the element won't sit or stay properly. What it does

• Fastens the radiant surface element to the cooktop for stable positioning.
• Maintains proper alignment so the element makes reliable electrical and physical contact.
• Common symptom: element shifts, wobbles, or won't stay seated.
• Common symptom: visible looseness or misalignment under the glass or around the burner opening.

• One radiant element mounting bracket.

• Disconnect power at the breaker or unplug the range before starting work.
• Handle glass cooktops and ceramic surfaces carefully to avoid chips or cracks.
• Use basic hand tools; follow the oven/range service manual for removal and reassembly steps.

This mounting bracket secures a range's radiant cooktop element to the cooktop assembly so the heating element stays properly positioned for safe, even operation. Designed to replace a worn or damaged support bracket. What it does:

• Holds the radiant cooktop element in the correct position and alignment
• Restores stable contact between the element and cooktop for reliable heating
• Helps prevent element movement, misalignment, or intermittent contact
• Fits where the original bracket is bent, cracked, or broken

• High-level replacement only; disconnect power at the breaker before starting
• May require removal of the cooktop or element for access—follow the appliance OEM service manual
• Use proper fasteners and torque to avoid damaging the cooktop or element

This mounting bracket secures a radiant cooktop element to the range frame so the element stays properly positioned for safe, reliable heating. Replacing a damaged bracket restores stable element support and alignment. What it does:

• Holds the radiant surface element firmly in place to prevent movement during use
• Maintains correct element spacing for even heat and safe operation
• Prevents the element from sagging, vibrating, or shifting when knobs are turned or cookware is moved
• Helps avoid intermittent contact that can cause heating issues

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle the glass/ceramic cooktop and element carefully to prevent cracking or injury
• Reuse existing fasteners if undamaged; replace hardware only with OEM-specified parts

Replacement bracket that secures a cooktop radiant heating element, restoring stable element positioning and safer operation. Use this bracket when the original is bent, cracked, or no longer holds the element firmly in place. What it does:

• Secures the radiant heating element to the cooktop so the element stays aligned and stable.
• Helps prevent element sagging or movement that can cause uneven heating or rattling.
• Keeps element terminals positioned for proper contact with the cooktop assembly.
• Common service part when the original bracket is bent, broken, or corroded.

• Disconnect power at the breaker and ensure the cooktop and element are fully cool before starting.
• Remove damaged bracket and fasten the replacement using the original screws or clips; confirm element alignment before restoring power.
• Use basic hand tools and avoid overtightening fasteners to prevent bracket or element damage.

This oven cavity insulation panel helps retain heat inside the oven for more even cooking and reduces heat transfer to surrounding components. It's a direct-replacement oven insulation piece designed to restore proper thermal performance. What it does:

• Provides thermal barrier around the oven cavity to help maintain cooking temperatures
• Reduces heat transfer to adjacent parts and cabinet surfaces to protect components
• Helps improve oven temperature stability and efficient operation when installed correctly
• Addresses symptoms like excessive exterior heat or uneven cooking when damaged or missing

• Disconnect power (and gas if applicable) before starting any repair and allow the appliance to fully cool
• Handle with care and wear gloves; insulation fibers may irritate skin or lungs
• Ensure panel is positioned and secured as original—do not compress or block vents

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit
