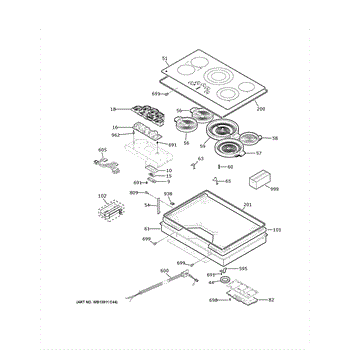

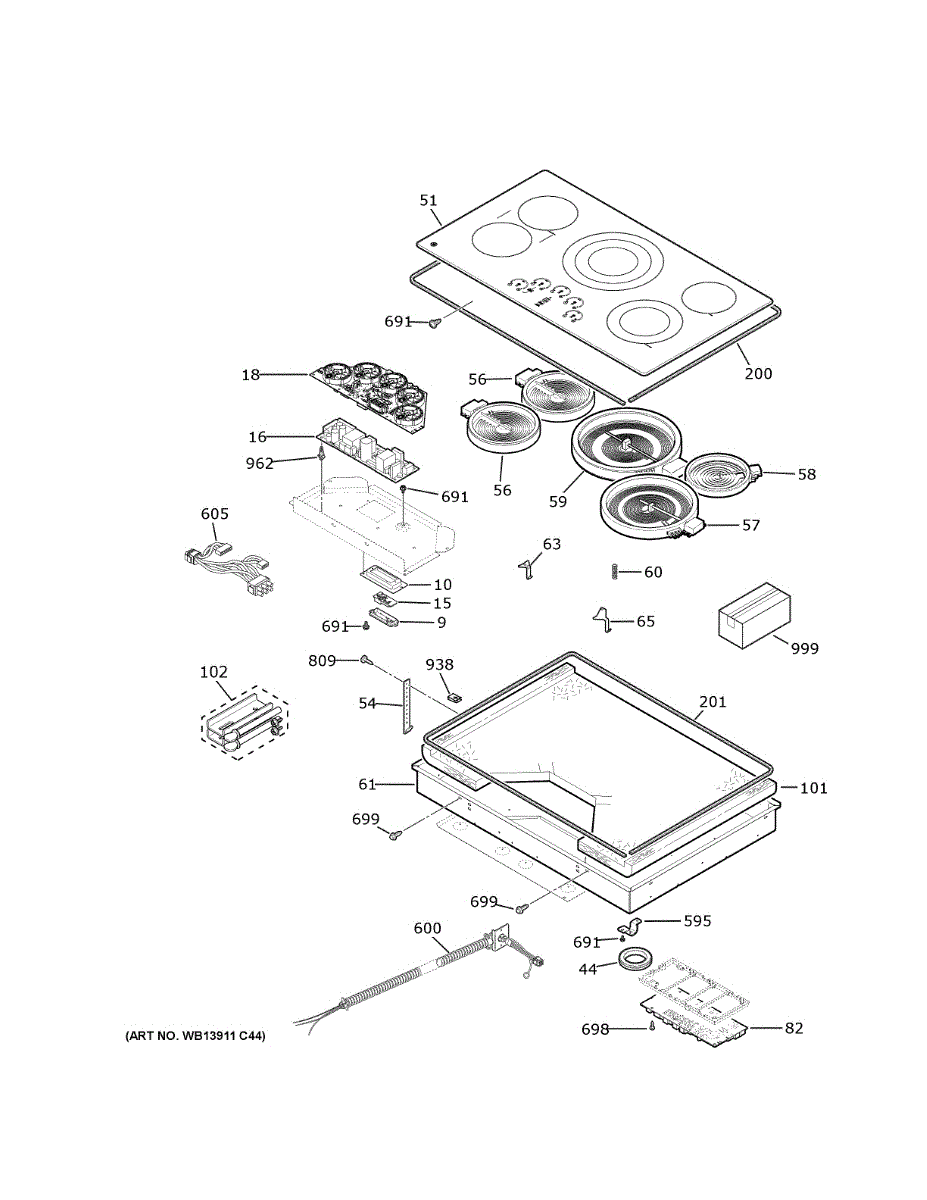

Parts for Ge PEP9036DT1BB: Control Panel & Cooktop Parts

The power supply board is an OEM replacement part for GE cooktops. It serves as the central hub for providing and regulating the electrical power needed to operate various components within the cooktop, such as the control board, ignition systems, and surface burner elements.

Symptoms of a bad Power Supply Board include:

• Cooktop not powering on or receiving electricity
• Burners failing to ignite or heat inconsistently
• Control panel displays or indicators not functioning properly
• Flickering or dimming of lights on the cooktop

Causes of a bad power supply board can include electrical surges or voltage fluctuations, component failure due to age or wear, physical damage from impact or exposure to excessive heat or moisture. Over time, the internal components of the board can degrade, leading to power supply issues.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore cooktop models.

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

This bake element is the oven heating element that produces consistent radiant heat for baking and roasting. It restores proper oven temps so cookware heats evenly and recipes finish correctly. What it does:

• Heats the oven cavity during bake cycles to cook and brown food
• Restores lost or reduced heating when the original element has failed
• Works with the oven's bake cycle and thermostat to maintain set temperature

• One oven bake element

• Disconnect power to the range at the breaker before starting work
• Element typically mounts with two screws and plugs into a terminal; handle terminals carefully
• Wear gloves; the element and oven interior can be sharp

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Triple Haliant Element is an OEM part for GE cooktops and ranges, designed to provide versatile and powerful heating options. This element features a triple-ring design that allows for three different sizes of cookware to be heated efficiently on the same burner. It's ideal for situations requiring precise temperature control and flexibility, such as when cooking with large pots or pans that need even heat distribution.

Causes for a Triple Haliant Element to fail can include prolonged use leading to wear and tear, overheating that damages the internal components, or electrical issues such as short circuits.

Symptoms of a bad Triple Haliant Element include:

• The element does not heat up
• Only parts of the element heat up
• Unusual fluctuations in heat levels

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This mounting bracket secures a range's radiant cooktop element to the cooktop assembly so the heating element stays properly positioned for safe, even operation. Designed to replace a worn or damaged support bracket. What it does:

• Holds the radiant cooktop element in the correct position and alignment
• Restores stable contact between the element and cooktop for reliable heating
• Helps prevent element movement, misalignment, or intermittent contact
• Fits where the original bracket is bent, cracked, or broken

• High-level replacement only; disconnect power at the breaker before starting
• May require removal of the cooktop or element for access—follow the appliance OEM service manual
• Use proper fasteners and torque to avoid damaging the cooktop or element

This replacement bracket secures a radiant surface heating element to the cooktop for stable operation and correct alignment. It helps restore proper element positioning so the burner sits flush and heats reliably. What it does:

• Anchors the radiant element to the cooktop frame to prevent shifting during use
• Maintains correct element spacing so heat transfers evenly across cookware
• Prevents movement that can cause arcing, uneven heating, or poor contact
• Used when the original bracket is bent, broken, or worn

• Disconnect power to the range at the breaker before servicing
• Handle ceramic/glass cooktop parts carefully to avoid damage
• Remove the element and existing bracket, then secure the new bracket and reinstall the element
• If you see damaged element terminals or mounting hardware, replace those parts as needed

This oven cavity insulation panel helps retain heat inside the oven for more even cooking and reduces heat transfer to surrounding components. It's a direct-replacement oven insulation piece designed to restore proper thermal performance. What it does:

• Provides thermal barrier around the oven cavity to help maintain cooking temperatures
• Reduces heat transfer to adjacent parts and cabinet surfaces to protect components
• Helps improve oven temperature stability and efficient operation when installed correctly
• Addresses symptoms like excessive exterior heat or uneven cooking when damaged or missing

• Disconnect power (and gas if applicable) before starting any repair and allow the appliance to fully cool
• Handle with care and wear gloves; insulation fibers may irritate skin or lungs
• Ensure panel is positioned and secured as original—do not compress or block vents

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

This foam insulation tape seals and cushions joints in your appliance. It restores a compressible barrier where panels meet, helping contain heat/airflow and reduce vibration once the original tape becomes brittle, flattened, or missing.

• Creates a soft, insulating barrier between adjoining components to limit heat transfer and air leaks
• Cushions trim and panels to reduce vibration and metal-to-metal contact
• Restores proper fit/seal when the original foam is worn or missing
• Common signs: tape is cracked, flattened, or loose; visible gaps at seams; buzzing or rattling from trim

• Disconnect power and allow the appliance to cool completely; shut off gas if applicable
• Note the tape's original location/path before removal; clean off old residue and dry surfaces
• Install the new tape in the same location without stretching; avoid gaps or overlaps
• Do not block burner openings or ventilation paths; refer to your model's diagram for exact placement

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This power harness connects the appliance's main power and routes electrical power to internal components for reliable operation. It replaces a damaged or worn wiring harness to restore proper power delivery and electrical connectivity. What it does:

• Transfers incoming power from the terminal block or power source to control boards and components
• Re-establishes lost or intermittent power caused by frayed, burned, or broken wiring
• Prevents shorts and electrical arcing when a worn harness is replaced
• Helps resolve symptoms such as no power to controls, intermittent operation, or blown fuses/circuit breakers

• 1 power wiring harness

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Inspect surrounding insulation and mounting clips; replace or secure as needed

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

This SCR (silicon controlled rectifier) is a replacement power-regulation semiconductor used in select GE appliances to control voltage to heating elements or motors, restoring reliable variable power control and stable operation. What it does

• Regulates and switches power to heating elements or drive motors as part of the appliance's control circuitry.
• Helps maintain consistent heat or motor speed when the control board calls for variable output.
• Can resolve symptoms such as intermittent heating, fluctuating motor speed, or appliances that run only on certain settings.
• Functions as a direct electrical switching component—not a user-serviceable interface.

• One SCR (silicon controlled rectifier) matching OEM part WB01X24096.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle the part carefully; observe anti-static precautions and avoid touching leads or terminals.
• Verify the part number on the old component matches WB01X24096 before installation.

A replacement plastic PCB standoff that secures and insulates the appliance control board from the chassis to prevent shorts and maintain stable mounting. Restores correct spacing and support for a loose or rattling control board. What it does:

• Holds the printed circuit board off the metal frame to prevent electrical contact and shorting
• Keeps the control board aligned and stable to reduce vibration-related faults or intermittent connections
• Provides an insulated mounting point where an original standoff is cracked, missing, or worn
• Helps ensure reliable screw placement and consistent board spacing during reassembly

• One plastic PCB standoff

• Disconnect power to the appliance before servicing to avoid shock or damage
• Use the original screw size and do not overtighten to prevent cracking the standoff or PCB
• Replace any damaged mounting hardware; verify the board sits flat and is properly insulated from metal parts
