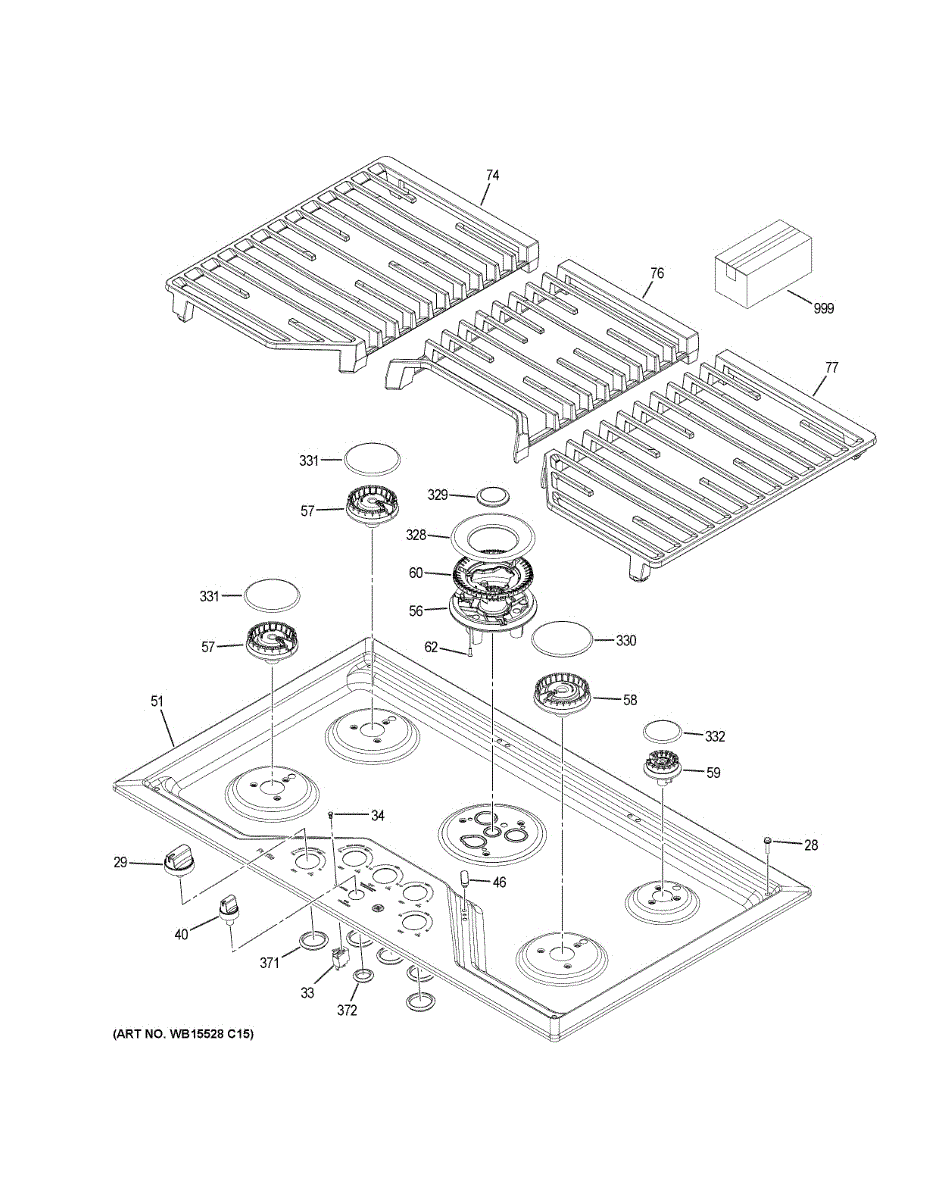

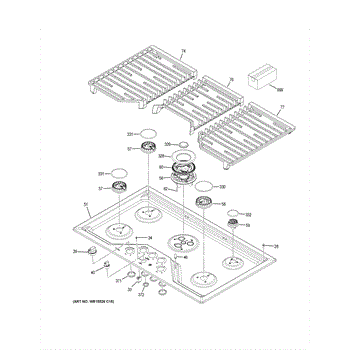

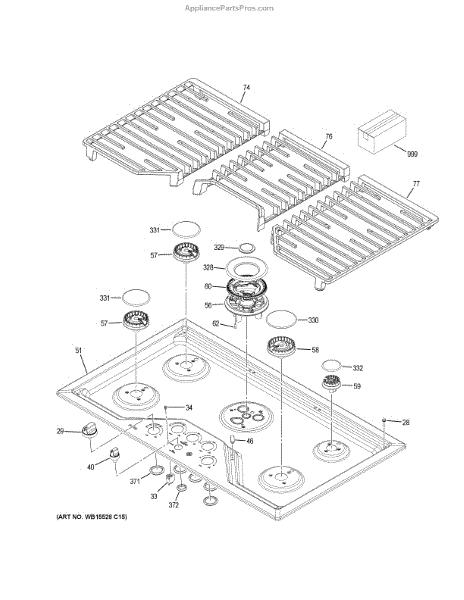

Parts for Ge PGP9030SL1SS: Control Panel & Cooktop Parts

The Range Surface Burner Grate Bumper is an OEM replacement part for GE ranges. The bumper protects the burner grate from scratching or denting the cooktop surface below when lowered into position.

Symptoms of a damaged or missing bumper include:

• Scuff marks or abrasions on the cooktop under the burner grate area
• Noise or rubbing sensations when operating burners
• Loose or detached fit of the burner grate on the range surface

Causes stem from regular use of the burner grates over many cooking cycles. Natural wear and repeated contact with surfaces can degrade bumpers over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges and cooktops.

The Cooktop Burner Knob is an OEM part for GE gas cooktops. It is responsible for controlling the gas flow to the burner and allowing precise adjustment of flame intensity.

Causes of a bad knob can include normal wear and tear over time that results in looser fitting, cracking or damage of the knob itself, or internal mechanisms failing that prevent proper adjustment of the flame.

Symptoms of a bad knob include:

• Inability to turn the knob or adjust the flame
• The knob feels loose or does not stay in the selected position

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

The Light Lens is an OEM replacement part for GE gas cooktops. It is a small yet important part that covers and protects the indicator light bulb in your cooktop so that the light bulb remains protected from grease, spills, and other potential hazards.

Symptoms of a faulty light lens include:

• Dim or inadequate lighting in the cooking area
• Difficulty in seeing or monitoring your cooking
• Exposure of the light bulb to grease or spills

A bad light lens can occur due to accidental damage or wear and tear over time. If you notice cracks, discoloration, or any other signs of damage on the lens, it may be time to replace the old or damaged light lens with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This stainless-finish selector knob restores smooth, precise control of your appliance's settings. It fits onto the control shaft so you can choose burner levels or functions, replacing knobs that are worn, cracked, or spin without engaging.

• Attaches to the valve/switch shaft to select settings from Off to the desired level
• Restores positive engagement if the original knob is stripped, loose, or broken
• Replaces a missing knob to keep the control panel complete and easy to use
• Common symptoms: knob won't stay on, hard to turn, or rotates without changing the setting

• Turn all controls to Off and allow the appliance to cool before servicing
• Pull the old knob straight off the stem; do not pry against the glass or control panel
• Align the new knob with the shaft and indicator, then press firmly until fully seated
• Verify the pointer aligns with Off and the control operates smoothly through all positions

The Bridge Bumper is an OEM part for GE electric cooktops. It is a protective bumper located at the bridge that connects the front control panel area to the cooking surface. The bumper acts as a safeguard, cushioning any potential impact to the underside of the control panel.

Causes of a bad bridge bumper include normal wear and tear, exposure to heat or moisture during cooking, or tears from impact.

Symptoms of a bad bridge bumper include:

• Visible damage or deterioration of the bumper material
• Exposure of raw edges that were previously covered
• Increased risk of scratches or damage to the control panel surface

This GE replacement part is also compatible with some Hotpoint, General Electric, and Kenmore electric cooktop models. Protect your appliance with this genuine OEM bridge bumper to safeguard the control panel from accidental impact.


This 30" maintop assembly replaces the cooktop surface to restore a clean, stable cooking area and support burners and grates. It refreshes appearance and provides a correct mounting surface for cooktop components. What it does:

• Replaces the main cooktop surface that supports burners, grates and control components
• Restores a level, heat-resistant area for safe cooking
• Helps resolve symptoms like warped/dented cooktop, loose burner fit, or cosmetic damage
• Works with existing burner caps, grates and igniters when undamaged

• One 30" maintop assembly (stainless) as shown

• Basic disassembly of grates, burner caps and ignition components is typically required
• Disconnect power and gas supply before starting and follow appliance-specific service manual steps
• Handle edges carefully to avoid cuts; use proper tools to avoid damaging surface finish

The Base Burner is an OEM part for GE gas range and cooktops. It securely holds the burner assembly in place on the cooktop.

Symptoms of a faulty base burner include:

• Loose or wobbly burners that could tip or shift during cooking
• Difficulty cleaning accumulated debris from recessed areas
• Potential gas or electric exposed connection hazards

Causes involve worn or cracked mounting brackets after years of use, missing or stripped retention screws, and impact damage to supports.

This OEM part is compatible with Hotpoint and RCA electric range brands as well.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Burner is an OEM part for GE gas ranges. As the critical surface heat is delivered through, it is exposed to extreme temperature variations during cooking.

Symptoms of a bad surface burner include:

• Deteriorated or cracked porcelain-enamel exterior
• Warped or misshapen burner base that no longer sits flat
• Cookware that rocks or is unstable when placed on the burner

Causes can be normal wear over many heating and cooling cycles or damage from the continuous use of larger pots that put undue stress on the burner head.

Replacing with this OEM GE part restores a stable, level cooking surface. It is compatible with Hotpoint, RCA, and Kenmore ranges as well as preventing future repairs from minor issues. Install yours today for reliable stove-top performance.


This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

This left surface burner grate replaces a damaged or missing left cooktop grate, restoring a stable cooking surface and even pot support. It's a direct-fit replacement for the left-side burner on compatible gas ranges. What it does

• Supports cookware over the left surface burner for safe, stable cooking.
• Maintains proper clearance and alignment so flames contact the cookware, not the grate.
• Replaces cracked, chipped, warped or unstable grates that cause pots to wobble.
• Helps prevent pans from sliding toward adjacent burners or controls.

• One left surface burner grate (left).

• Allow the range to cool and burners to be off before removing or installing the grate.
• This part is typically lift-off; align with burner head and set into position—no special tools required.
• Clean the cooktop and burner heads before installation to ensure proper seating.
• Check burner caps and ports for proper positioning and debris after installation.

The Center Grate is an OEM part for GE gas ranges and cooktops. This center grate sits between the front burners and serves as a cooking surface. The grate is designed with an open design that allows heat from the burners to circulate up while safely containing hot cookware.

Causes of a bad center grate can include warping or deformation from high heat, cracks or breakage from mishandling heavy pots and pans, or scratches and wear over time.

Symptoms of a bad center grate include:

• Difficulty fitting pots and pans between the grate bars
• Food or liquids dripping below the grate
• Loose or unstable grate that moves during cooking
• Safety concerns with exposed burner flames

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GRATE (Right) is an OEM component specifically designed for GE gas cooktops. This grate sits over one of the cooktop burners and serves as a durable, heat resistant surface for cooking pots and pans.

Symptoms of a bad grate include:

• Uneven or inefficient heating of cookware
• Hot spots under pans that cause food to burn
• Difficulty moving cookware smoothly across the surface
• Appearance of cracks, holes, or imperfections on the grate itself

Causes of a bad grate can include warping or discoloration from continued heat exposure, as well as scratches or defects that degrade its heat distribution properties.

This OEM GE part is also compatible with Hotpoint, RCA and some Kenmore models.

The Burner Cap is an OEM replacement part for GE gas cooktops. This one is the outer part of the burner cap that sits over the inner burner head and flames on a gas cooktop burner. The cap helps protect the inner burner parts while also directing and controlling the burner flame.

Symptoms of a faulty burner cap include:

• Uneven or weak flame
• Gas leakage around the burner heads
• Difficulty in adjusting the flame intensity

A bad outer cap can occur due to wear and tear, accidental damage, or exposure to high temperatures. If you notice signs of damage, such as cracks, discoloration, or a loose fit, it may be time to replace the outer cap. Replacing this part can help improve burner performance and flame if the old cap is damaged or corroded.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The burner cap is an OEM component specifically designed for GE wall ovens and ranges. The inner burner cap is responsible for evenly distributing heat across the burner surface while protecting the burner element underneath.

Causes of a bad burner cap can include damage from scratches or cracks that occur over time from regular use and cleaning. The burner cap material may also deteriorate due to exposure to high heat.

Symptoms of a bad burner cap include:

• Uneven or inconsistent burner performance
• Hot spots on the burner surface
• Damage or cracking visible on the cap
• Difficulty cleaning residue or spills from the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control knob seal fits around the control shaft opening on your range or cooktop to close the gap under the knob. It helps block spills and debris from entering the control area and keeps the console looking clean and finished.

• Forms a barrier between the knob/valve shaft and the control surface
• Helps prevent liquids, crumbs, and grease from seeping into the control cavity
• Restores a tidy appearance; replaces cracked, shrunken, or missing seals
• Typical signs of wear: visible damage, gaps around the knob, or residue appearing beneath the panel after spills

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool
• Pull the knob straight off the shaft and remove the old seal
• Clean the area; seat the new seal flat around the shaft—avoid side pressure on the valve stem
• Reinstall the knob and verify smooth operation and proper seal seating
