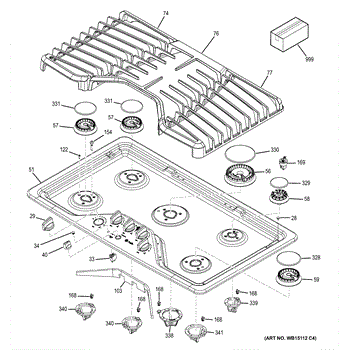

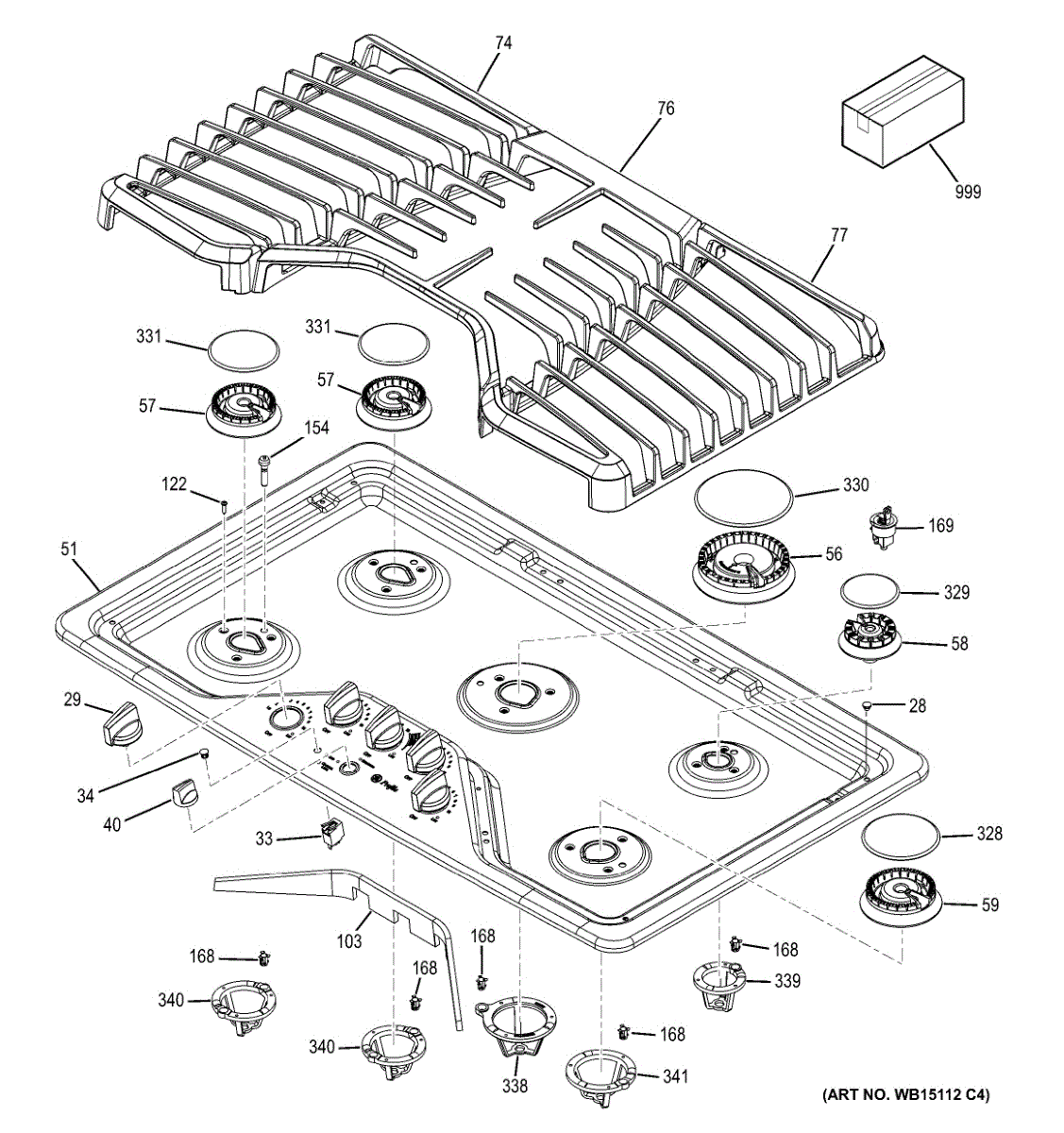

Parts for Ge PGP976DET4WW: Control Panel & Cooktop Parts

The Bumper is an OEM part for GE ranges. These small bumpers are designed to fit onto the underside of the burner grates, providing cushioning and stability. They help prevent the grates from scratching the cooktop surface and reduce noise and vibration during cooking.

Causes of bad burner grate bumpers can include continuous exposure to high temperatures, wear and tear from regular use, and physical damage from moving or cleaning the grates.

Symptoms of a bad burner grate bumper include:

• Burner grates wobbling or not sitting level
• Increased noise or vibration during cooking
• Scratches or marks on the cooktop surface
• Missing or visibly damaged bumpers

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Knob is an OEM replacement part responsible for controlling the gas flow on a GE cooktop. When the knob is turned, it rotates the shaft on the gas valve, allowing the user to regulate the amount of gas being released to the burner.

Over time, range knobs can become worn or damaged due to frequent use, exposure to kitchen greases and cleaning chemicals, or accidental impacts.

Symptoms of a bad Range Knob include:

• Difficulty in turning the knob
• The knob not engaging with the range's control mechanism
• Visible cracks or damage
• The knob falling off or failing to stay attached

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Pilot Indicator Light is an OEM part for GE ranges. It indicates whether an element on the range is active and hot, providing a safety feature that alerts users to potentially dangerous heat levels.

Common causes of a bad pilot indicator light include electrical failures, wear and tear from frequent use, or physical damage to the light or its housing. A malfunctioning indicator light can lead to difficulty in determining whether the appliance is on, which could pose safety risks.

Symptoms of a bad pilot indicator light include:

• The light fails to illuminate when an element is turned on.
• The light remains on, indicating an element is hot when it is not.
• Flickering or erratic behavior of the indicator light.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

This white selector knob lets you choose settings on compatible GE appliance controls and restores a secure, easy-to-grip interface. It replaces a cracked, faded, or missing control knob so dials turn smoothly and selections register correctly. What it does:

• Fits the control shaft to allow manual selection of cooktop/oven/dryer settings
• Restores grip and control when the original knob is stripped, cracked, loose, or missing
• Provides a visible, color-matched replacement to match the appliance finish
• Helps prevent accidental setting changes by seating firmly on the control shaft

• One white selector knob

• Disconnect power to the appliance before removing or installing the knob to avoid injury
• Remove the old knob by pulling it straight off the control shaft; inspect the shaft for damage
• Align the knob with the splines on the control shaft and push it fully onto the shaft until seated
• If the original knob used a set screw, reuse it and tighten securely.

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This center cooktop grate replaces a damaged or missing middle grate on 36-inch gas ranges, restoring a stable cooking surface for pots and pans. It helps center cookware and maintain even support across the cooktop. What it does:

• Replaces a worn, cracked, or chipped center grate so cookware sits flat and stable
• Eliminates rocking or uneven heating caused by a damaged center grate
• Reduces rattling and vibration from loose or broken grate pieces
• Restores proper spacing between burner areas for safer cooking

• Make sure all burners are off and the cooktop is completely cool before handling
• Set the grate into the cooktop slots so it rests flat and engages any support rails
• Clean the area before installation and avoid using abrasive cleaners on the grate finish
• If the grate does not seat correctly, verify you have the correct center grate for your cooktop model

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Clip Electrode that secures a spark/flame electrode to the burner assembly, keeping the igniter properly positioned for reliable ignition. Replaces a worn or broken retainer to help restore consistent spark alignment and lighting. What it does:

• Secures the spark/flame electrode to the burner/orifice holder so the electrode stays correctly positioned.
• Maintains electrode gap and alignment to support a strong, consistent spark for ignition.
• Helps address ignition symptoms such as weak or intermittent spark, clicking without ignition, or a burner that won't light.
• Replaces a bent, broken, or missing retainer without replacing the full electrode assembly.

• Always turn off power to the appliance and shut off the gas supply before servicing ignition components.
• Handle the electrode and its ceramic insulator carefully—they can be brittle; use needle-nose pliers to seat the clip if needed.
• After installing, verify electrode alignment and gap; improper alignment can prevent ignition.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cooktop bracket secures the cooktop to the range frame, helping keep the surface stable and aligned for safe use. It replaces a worn or damaged support bracket to restore a snug, even fit. What it does:

• Anchors the cooktop to the range cabinet/frame to prevent shifting or rocking
• Helps maintain a flush, even cooktop surface for proper operation
• Can stop gaps that let debris fall between the cooktop and counter
• Useful when a loose, wobbly, or uneven cooktop is observed

• One cooktop mounting bracket

• Turn off power at the breaker and disconnect the appliance before starting work
• Access may require lifting the cooktop or removing trim—use proper support and a helper if needed
• Tighten mounting fasteners securely but avoid over-torquing to prevent damage

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service
