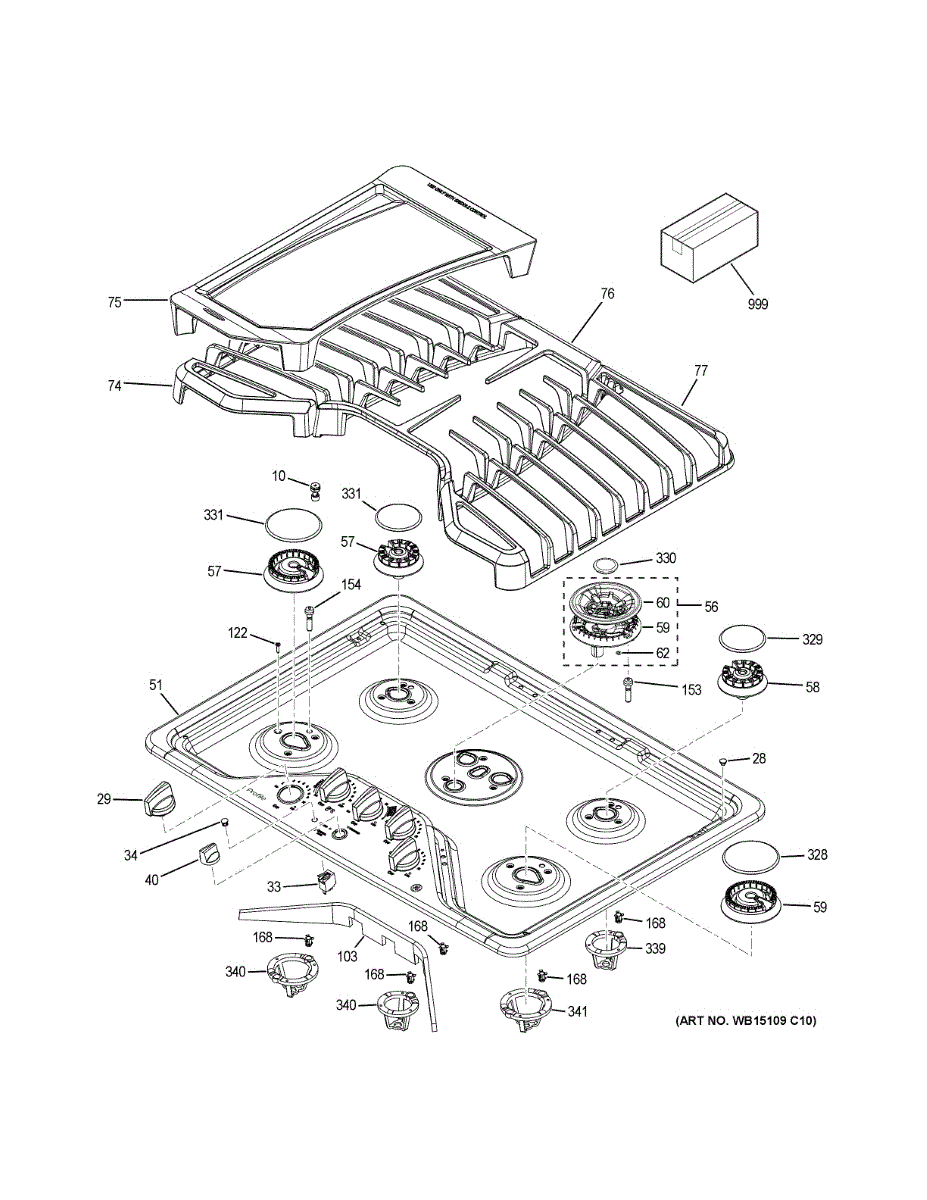

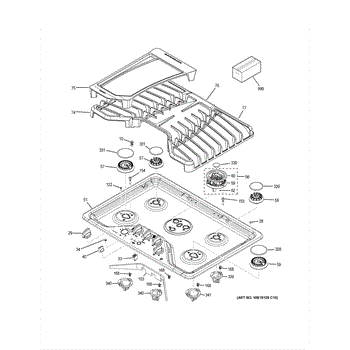

Parts for Ge PGP986SET5SS: Control Panel & Cooktop Parts

The Bumper is an OEM part for GE ranges. These small bumpers are designed to fit onto the underside of the burner grates, providing cushioning and stability. They help prevent the grates from scratching the cooktop surface and reduce noise and vibration during cooking.

Causes of bad burner grate bumpers can include continuous exposure to high temperatures, wear and tear from regular use, and physical damage from moving or cleaning the grates.

Symptoms of a bad burner grate bumper include:

• Burner grates wobbling or not sitting level
• Increased noise or vibration during cooking
• Scratches or marks on the cooktop surface
• Missing or visibly damaged bumpers

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Knob Assembly (SS) is an OEM part for GE ranges. This stainless steel knob assembly is used to control the heat settings on the range’s burners, ensuring precise temperature adjustments for cooking.

You should replace this knob assembly if it becomes worn or damaged. Causes of a bad knob assembly can include regular wear and tear, accidental impacts, or exposure to high heat that can affect its integrity and functionality.

Symptoms of a bad knob assembly include:

• Difficulty turning the knob
• Burners not responding to adjustments
• The knob feeling loose or unstable
• Visible cracks or damage on the knob

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Pilot Indicator Light is an OEM part for GE ranges. It indicates whether an element on the range is active and hot, providing a safety feature that alerts users to potentially dangerous heat levels.

Common causes of a bad pilot indicator light include electrical failures, wear and tear from frequent use, or physical damage to the light or its housing. A malfunctioning indicator light can lead to difficulty in determining whether the appliance is on, which could pose safety risks.

Symptoms of a bad pilot indicator light include:

• The light fails to illuminate when an element is turned on.
• The light remains on, indicating an element is hot when it is not.
• Flickering or erratic behavior of the indicator light.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

The Selector Knob is an OEM part for GE ranges and cooktops. It allows the user to control various settings such as burner temperature or oven function by turning the knob to the desired position. This knob is essential for the proper operation and user interface of the appliance.

Causes of a bad selector knob can include repeated use leading to wear and tear, accidental impact causing cracks or breakage, and exposure to high heat which can cause the material to degrade.

Symptoms of a bad selector knob include:

• Difficulty in turning the knob
• The knob not staying in the selected position
• Cracks or visible damage to the knob

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This maintop assembly replaces the cooktop surface on compatible ranges, restoring a flat, heat-resistant work area and proper fit for burners and grates. It helps eliminate warped or damaged tops that cause uneven cookware support. What it does:

• Replaces a cracked, dented or severely scratched maintop to restore safe, stable cookware support
• Provides correct mounting surface and alignment for burners, grates and control components
• Prevents heat and spill damage from reaching internal components when the top is intact
• Restores appearance by replacing worn or discolored cooking surface

• Intended for users comfortable with basic appliance disassembly; disconnect power (and gas if applicable) before starting
• Remove burners, grates and control knobs per your model's service instructions to access and fasten the maintop
• Handle carefully to avoid scratching the finished surface; use proper hardware torque and alignment

The Gas cooktop tri-ring surface burner assembly is an OEM part for GE ranges and cooktops. It is comprised of three gas burners designed to provide flexible cooking options by allowing pots or pans to be placed over single or multiple rings.

The gas burner assembly is responsible for heating food safely and efficiently when using gas cooking. Each ring burner produces a defined flame pattern to heat pots or pans evenly.

Causes of a bad gas burner assembly can include cracks, corrosion or damage to burner rings, misalignment of flame ports, or malfunctioning gas valves.

Symptoms of a bad gas burner assembly include:

• Uneven or inconsistent flame patterns
• Inability to light or stay lit
• Yellow or sooty flames
• Gas leaks around burner rings

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This triple ring burner head restores strong, even flame on your cooktop's high-output burner. It directs gas to three concentric rings for powerful heat and smooth simmering when the original head is clogged, warped, or damaged.

• Distributes gas to three concentric flame rings for high, even heat and precise simmer control
• Works with the igniter and orifice to light quickly when properly seated and aligned
• Replace if this burner won't ignite or takes too long to light
• Addresses uneven, weak, or yellow flames, and visible cracks, warping, or clogged ports

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove the burner cap, then lift the old burner head straight up
• Clean the burner base/orifice area and ensure the igniter is free of debris
• Set the new head over the orifice and igniter; ensure it sits flat and aligned, reinstall the cap, and test ignition

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the outer burner cap for a sealed gas burner. It covers the burner's outer ring to shape a steady flame, protect the burner head from spills, and help ensure consistent ignition and even cooking results.

• Shapes and distributes the flame around the outer ring for balanced heating
• Promotes reliable ignition when properly centered and seated
• Shields burner head and ports from spills and debris that can affect performance
• Replace if the cap is chipped, warped, or missing; symptoms can include yellow/uneven flames, sooting, or repeated clicking/delayed ignition

• Disconnect power and allow the cooktop/range to cool before servicing
• Lift off the old cap; clean the burner head and seating surface
• Position the new cap flat and centered; it should sit level and not rock
• Light the burner to verify a steady, blue flame; reposition if needed

A small metal lock washer that secures fasteners and helps prevent nuts or bolts from loosening under vibration. Fits specific GE appliances where a locking washer is required to keep assemblies tight and stable. What it does:

• Provides a locking grip under a nut or head of a bolt to resist loosening from vibration
• Helps maintain secure connections on panels, brackets, or components
• Can stop intermittent rattling or movement caused by a loose fastener
• Used wherever the original equipment calls for a retaining/lock washer

• One lock washer as shown

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use appropriate tools (needle-nose pliers or small wrench) and replace only in the original orientation
• Do not over-tighten fasteners — tighten just enough to compress the washer and engage locking feature
• Keep small parts away from children and pets

This center cooktop grate replaces a damaged or missing middle grate on 36-inch gas ranges, restoring a stable cooking surface for pots and pans. It helps center cookware and maintain even support across the cooktop. What it does:

• Replaces a worn, cracked, or chipped center grate so cookware sits flat and stable
• Eliminates rocking or uneven heating caused by a damaged center grate
• Reduces rattling and vibration from loose or broken grate pieces
• Restores proper spacing between burner areas for safer cooking

• Make sure all burners are off and the cooktop is completely cool before handling
• Set the grate into the cooktop slots so it rests flat and engages any support rails
• Clean the area before installation and avoid using abrasive cleaners on the grate finish
• If the grate does not seat correctly, verify you have the correct center grate for your cooktop model

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Clip Electrode that secures a spark/flame electrode to the burner assembly, keeping the igniter properly positioned for reliable ignition. Replaces a worn or broken retainer to help restore consistent spark alignment and lighting. What it does:

• Secures the spark/flame electrode to the burner/orifice holder so the electrode stays correctly positioned.
• Maintains electrode gap and alignment to support a strong, consistent spark for ignition.
• Helps address ignition symptoms such as weak or intermittent spark, clicking without ignition, or a burner that won't light.
• Replaces a bent, broken, or missing retainer without replacing the full electrode assembly.

• Always turn off power to the appliance and shut off the gas supply before servicing ignition components.
• Handle the electrode and its ceramic insulator carefully—they can be brittle; use needle-nose pliers to seat the clip if needed.
• After installing, verify electrode alignment and gap; improper alignment can prevent ignition.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This central burner cap covers the center of a gas burner to shape the flame and protect the burner head. Replacing a worn or missing cap restores proper ignition, even flame, and clean cooktop performance.

• Directs the center flame for more even heat distribution
• Shields the burner head/igniter area from spills and drafts
• Helps ensure consistent ignition when properly seated
• Common symptoms: uneven or yellow flames, delayed ignition, sooting, or a chipped/warped cap

• Turn all burner controls off and let the surface cool completely
• Lift off the old cap; clean and dry the burner head surface
• Center the new cap on the burner head so it sits flat with no rocking or gaps
• Test the burner; if the flame is uneven or lifting, re-seat the cap until level

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service
