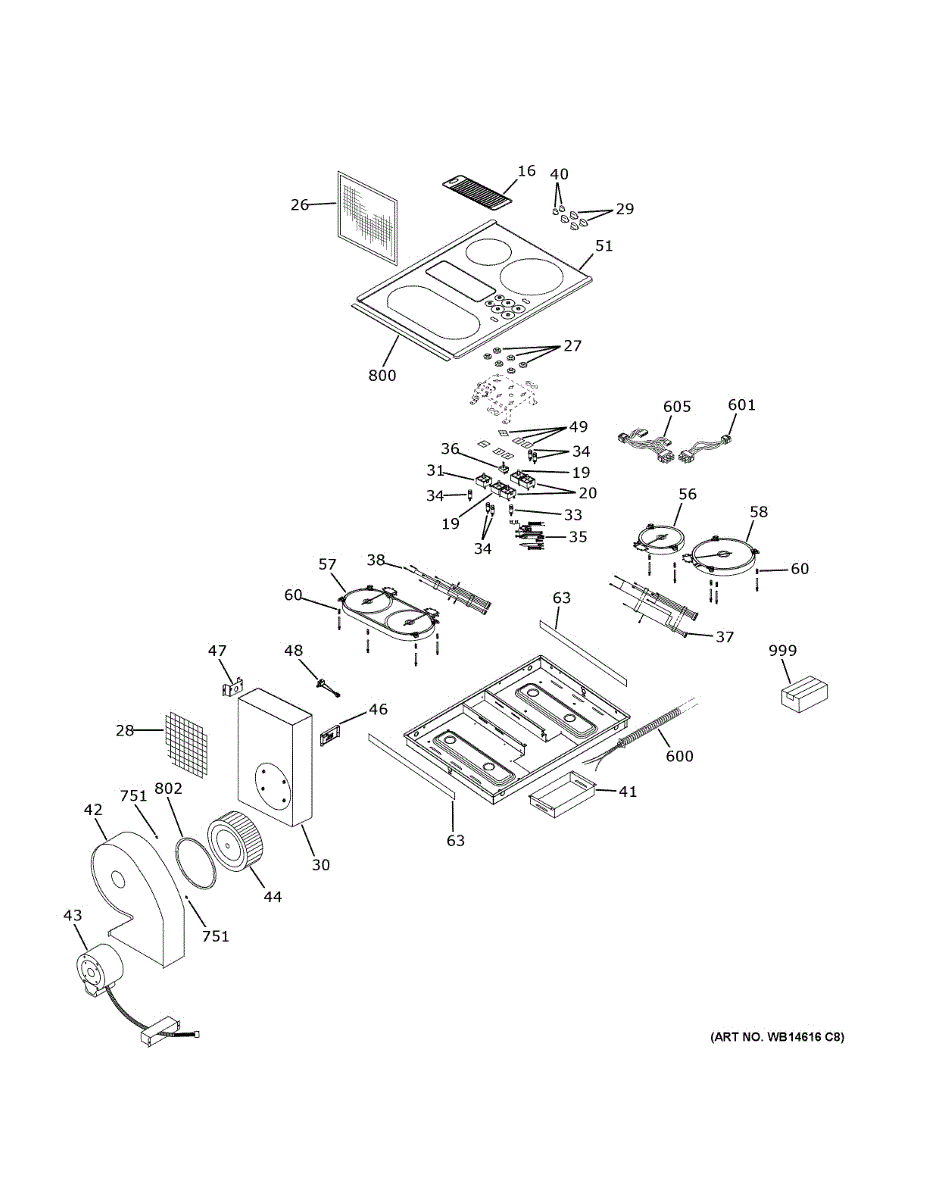

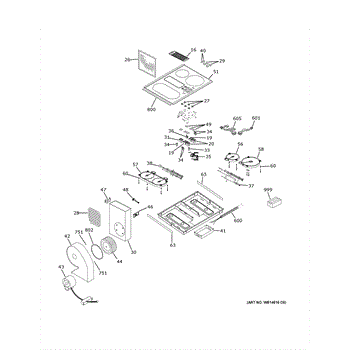

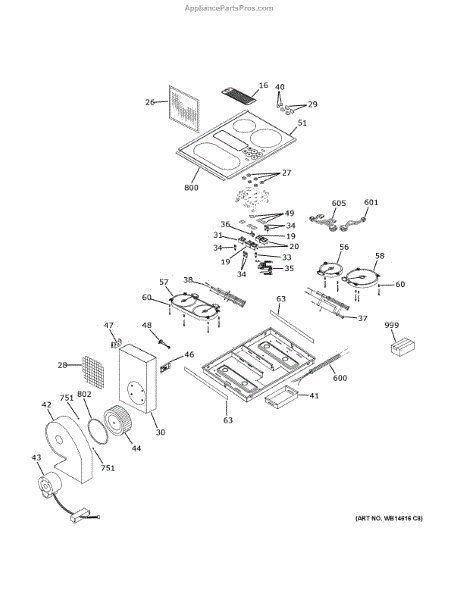

Parts for Ge PP9830SR1SS: Control Panel & Cooktop Parts

This infinite switch controls the variable heat output for a cooktop surface burner, restoring adjustable temperature settings for safe, even cooking. Use it to replace a worn or failed burner control. What it does:

• Regulates power delivered to a surface burner so you can set low-to-high heat levels
• Replaces a faulty control that causes burners to stay off or not heat properly
• Addresses symptoms like burners that won't heat, uneven or inconsistent heat, or controls that don't click or respond
• Works with standard slide or rotary knob-operated surface burner circuits

• Disconnect power to the appliance at the breaker before starting any repair.
• Verify the part number and terminal layout match your existing switch before removing the old part.
• Basic hand tools required; access typically involves removing the backguard or cooktop surface.

This infinite switch regulates power to a range or cooktop surface element, letting you adjust heat from low to high. Replacing a worn switch restores smooth, reliable burner temperature control and helps prevent overheating or no-heat issues.

• Varies power to the surface element by cycling on and off based on the knob setting
• Helps deliver the selected heat level from simmer to full boil
• Failure can cause no heat, only high heat, inability to turn off, or erratic heating
• May present with a loose/nonresponsive knob, buzzing/arcing, or a burnt odor at the control

• Disconnect power at the breaker or unplug the appliance before servicing
• Pull off the knob and open the control panel to access the switch
• Transfer wires one at a time to the matching terminals on the new switch; mount using existing hardware
• Reassemble, restore power, and test all heat settings on the burner

This glass and shaft seal assembly replaces a damaged oven door glass seal and the shaft seal that helps keep heat and moisture contained. Restores proper sealing to improve oven performance and reduce heat loss. What it does:

• Seals the gap around the oven door glass and shaft to help contain heat and cooking vapors
• Reduces heat transfer and prevents excess moisture buildup near the door area
• Helps maintain consistent oven temperatures by restoring a proper seal
• Commonly replaced when you see visible wear, cracked/brittle seal, or heat leaking from the door edge

• One glass and shaft seal assembly as shown

• Disconnect power to the appliance before beginning any repair
• Handle glass components carefully to avoid breakage or injury; wear work gloves and eye protection
• Basic hand tools are typically required; follow the appliance service manual for disassembly/reassembly steps

This control knob installs on the burner control valve/switch stem to let you select and adjust heat on your cooktop or range. Replacing a worn knob restores smooth, accurate control and a clean stainless-look appearance. What it does:

• Turns the surface burner control to set and adjust heat
• Replaces cracked, stripped, loose, or missing knobs
• Helps resolve slipping or hard-to-turn operation
• Refreshes the front panel with a stainless-style finish

• One stainless-finish control knob

• Disconnect power and, if applicable, shut off gas before working near controls.
• Pull the old knob straight off the stem; align the new knob with the stem orientation and press straight on.
• Ensure the knob seats fully and turns smoothly; test burner response before use.

A blower plenum that channels airflow from the blower to the appliance's exhaust path, helping maintain proper circulation and venting. Replaces a worn or damaged plenum to restore directed airflow and reduce airflow losses. What it does

• Directs air from the blower housing into the appliance's vent/exhaust path
• Helps maintain consistent airflow for proper operation
• A damaged or cracked plenum can cause reduced airflow, longer cycle times, or uneven heating
• Replacing a warped or broken plenum can reduce unusual noises and air leakage

• One blower plenum

• Disconnect power (and gas if applicable) before beginning any repair
• Basic hand tools typically required; follow appliance disassembly steps in the service manual
• Handle carefully to avoid cracking tabs or mounting points; secure all fasteners and seals
• Inspect surrounding seals, ducts, and the blower housing for lint, damage, or obstructions while replacing the part

The Fan Switch is an OEM replacement part for GE cooktops. Measuring approximately 2 inches by 1 inch, this fan switch serves as a component in activating the downdraft fan. The downdraft fan aids in extracting smoke, steam, and odors, promoting a cleaner and fresher cooking environment.

A malfunctioning Fan Switch can be attributed to electrical issues, wear and tear from regular use, or physical damage. These problems can lead to the downdraft fan not activating, resulting in inadequate ventilation and the accumulation of smoke and odors during cooking.

Symptoms of a bad Fan Switch include:

• The downdraft fan failing to activate, leading to poor ventilation
• Accumulation of smoke and odors during cooking
• The switch being unresponsive or failing to maintain the fan’s operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Selector Knob is an OEM part for GE ranges. This knob allows users to select various cooking settings and temperatures by turning it to the desired position on the control panel.

Causes of a bad selector knob can include regular wear and tear, cracks or breaks from excessive force, and damage from heat exposure over time.

Symptoms of a bad selector knob include:

• The knob not turning smoothly or getting stuck
• Cracks or visible damage on the knob
• Difficulty selecting or changing settings
• The knob coming off easily or not staying securely in place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-inch radiant cooktop element replaces a failed smooth-top heating element to restore even surface heating for stovetop cooking. Fits many smooth-top ranges and offers a direct swap for the worn or broken element. What it does

• Heats the glass-ceramic cooktop surface to provide a cooking zone for pots and pans.
• Replaces cracked, non-heating, or intermittently heating elements that prevent burners from warming.
• Restores consistent heat output when an old element no longer reaches cooking temperature.
• Works with the cooktop's burner control and infinite switch to regulate heat settings.

• One 10-inch radiant cooktop element (WB30X45058)

• Disconnect power to the range at the breaker before servicing; verify power is off.
• Handle the glass surface and element terminals carefully to avoid damage or personal injury.
• After installation, restore power and test each heat setting to confirm proper operation.

The Clear Tape is an OEM part for GE cooktops. This specialized tape is used to secure and protect various components of the cooktop, including glass panels and control assemblies. It ensures that these components stay in place during operation and helps maintain the cooktop's structural integrity.

Causes of a bad cooktop clear tape can include exposure to high temperatures over time, wear and tear from regular use, or accidental damage during cleaning or maintenance.

Symptoms of a bad cooktop clear tape include:

• Loose or shifting glass panels
• Parts of the cooktop not staying securely in place
• Visible deterioration or peeling of the tape
• Difficulty in maintaining a stable cooktop surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
