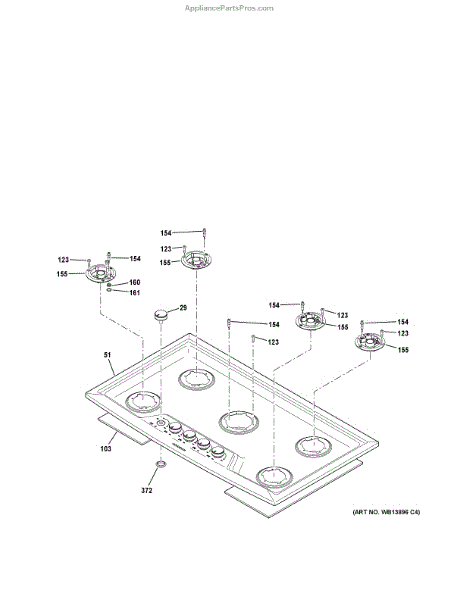

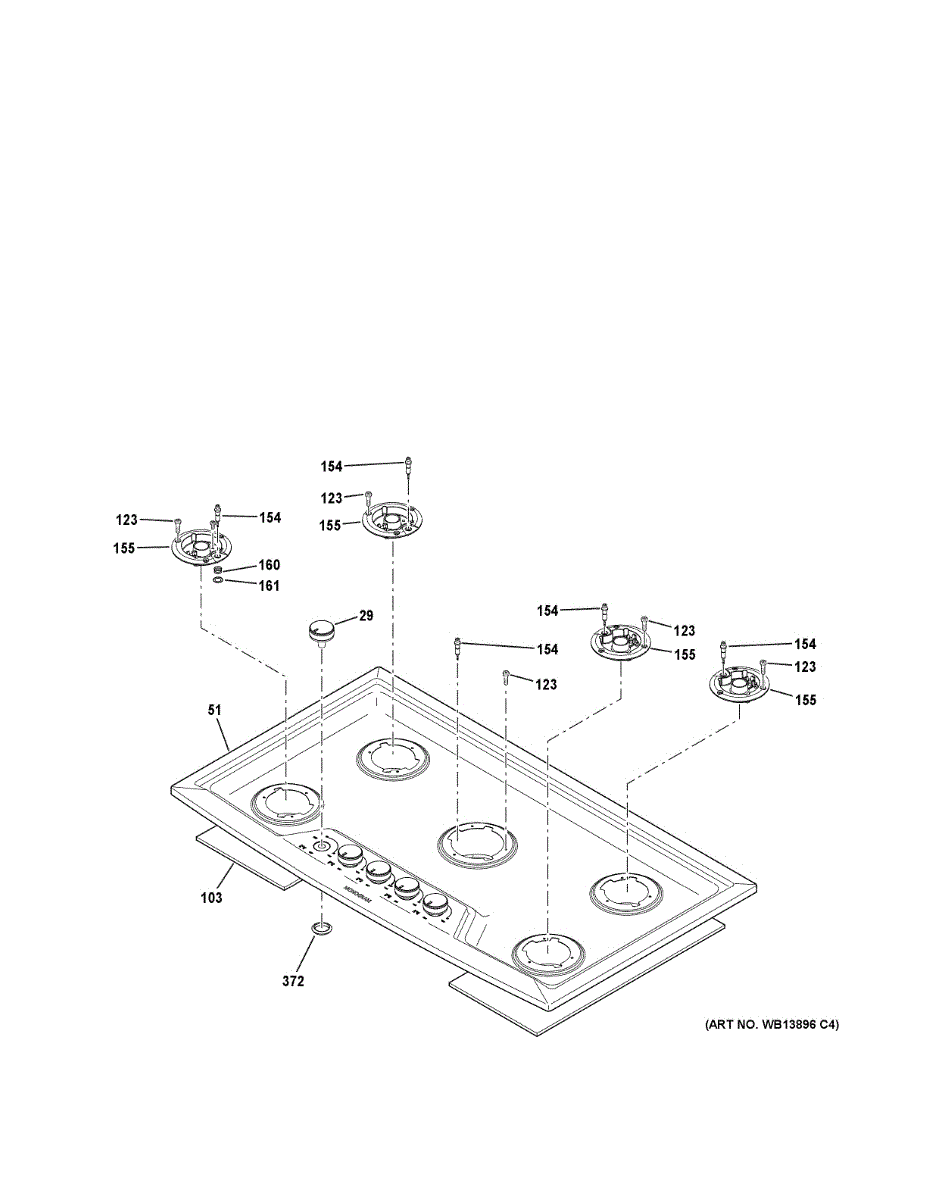

Parts for Ge ZGU385QSL1SS: Control Panel & Cooktop Parts

The Burner Knob Assembly is an OEM part for GE cooktops. It is responsible for allowing users to control the burner settings, including igniting the burner and adjusting the flame intensity.

Over time, burner knobs can become worn out or damaged due to frequent use, exposure to heat, or accidental impact. A faulty burner knob can affect the user’s ability to control the burner accurately and safely.

Symptoms of a bad burner knob include:

• Difficulty turning the knob
• Loose or wobbly knob
• The burner not igniting or responding to knob adjustments
• Knob markings becoming illegible

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This machine screw fastens appliance components such as brackets, panels, and trim. Replacing a missing or stripped screw restores a tight, secure fit and helps prevent vibration, rattling, and loosening during normal use.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain alignment and stability under vibration and heat
• Restores holding power when the original screw is stripped, lost, or corroded
• Common symptoms include loose or rattling panels, misaligned trim, or wobbling handles/brackets

• Disconnect power; shut off gas supply before servicing.
• Use the correct driver for the screw head to avoid stripping.
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening.
• Replace one fastener at a time to maintain alignment.

The Top Burner Igniter is an OEM part for GE gas ranges. This igniter is responsible for lighting the gas burner on the cooktop, providing the necessary spark to ignite the gas and start the burner.

Causes of a bad igniter can include wear and tear from regular use, buildup of food debris or grease, or electrical issues.

Symptoms of a bad top burner igniter include:

• The burner not lighting or taking a long time to ignite
• No clicking sound when attempting to ignite the burner
• Weak or no spark produced by the igniter
• The igniter glowing but not igniting the gas

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This burner base restores consistent flame and reliable ignition on your gas cooktop or range. It routes gas from the orifice through the burner ports and supports the cap and igniter for even, dependable heat.

• Directs gas from the orifice through burner ports for a stable, even flame
• Provides the seating surface for the burner cap and alignment for the igniter electrode
• Helps ensure quick, reliable lighting when clean and intact
• A worn, cracked, or clogged base can cause weak/uneven flames, delayed ignition, or burners that won't light

• Shut off gas supply and power; allow the surface to cool completely
• Remove grates and burner caps; take out mounting screws and lift off the old base
• Protect the igniter electrode; transfer any reusable screws or gasket as needed; set the new base flat over the orifice holder
• Reassemble, restore gas/power, and test for proper ignition and flame; check connections with a leak-detection solution

This igniter spring secures the appliance's igniter in its bracket, keeping the component properly positioned for reliable ignition. Replacing a tired spring restores stable alignment and helps resolve intermittent light-off issues.

• Holds the igniter securely in its mounting bracket or burner base
• Maintains proper gap and positioning for consistent ignition performance
• Helps address symptoms such as a loose or misaligned igniter and delayed or inconsistent lighting
• Replaces springs that are stretched, corroded, or broken

• Disconnect power and shut off gas supply before servicing; allow the appliance to cool fully.
• Access the igniter by removing burner components or the access panel as required by your model.
• Support the fragile ceramic igniter while removing/installing the spring; avoid bending the electrode or over-stretching the spring.
• Test operation after installation.

This igniter washer is a small retaining piece for gas ranges/cooktops that holds the surface burner spark igniter securely in place. Replacing a worn washer keeps the electrode aligned for a consistent spark and reliable burner ignition.

• Secures the surface burner igniter to the burner base
• Maintains correct igniter alignment and gap for consistent sparking
• Helps prevent arcing or misfires caused by a loose/missing retainer
• Common signs include a wobbly/misaligned igniter, intermittent spark, or that burner not lighting

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove the burner cap and head to access the igniter
• Handle the ceramic electrode carefully; install the washer to secure the igniter in its original orientation
• Reassemble, restore power/gas, and test burner ignition

This control seal sits in the control area of your range or cooktop. It creates a barrier that helps keep spills, grease, and debris out of the manifold/console for smoother control operation and longer component life.

• Seals the gap around control openings to block spill intrusion
• Helps protect internal valves/switches from moisture and debris
• Aids reliable knob/control function after cleanups and spills
• Common signs it's needed: cracked, deformed, or missing seal; liquids passing through control openings; gritty or sticky knob feel

• Disconnect power; also shut off gas. Allow the appliance to cool.
• Pull the control knob straight off and remove the old seal.
• Clean and dry the mating surface; seat the new seal evenly and flat.
• Reinstall the knob and verify the control turns freely with the seal fully seated.
