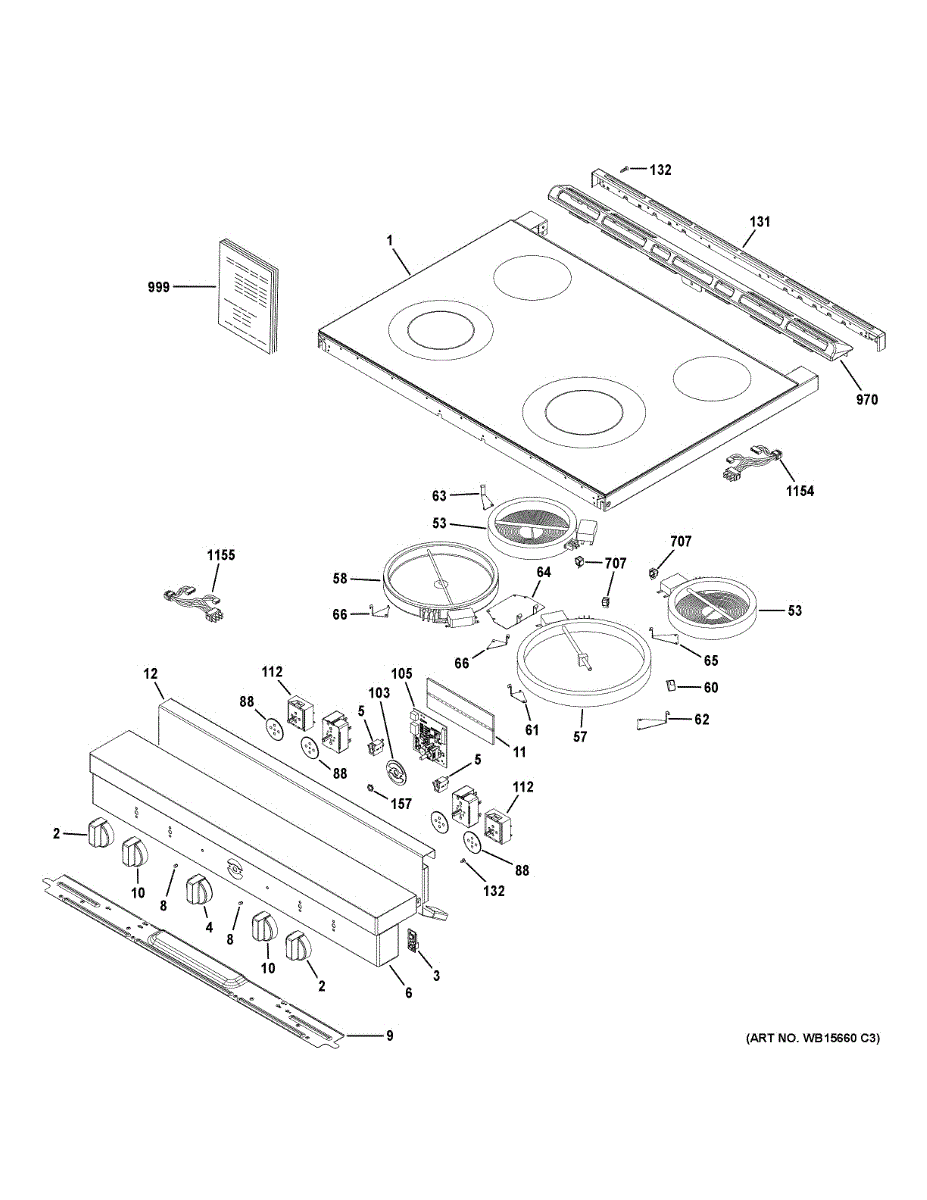

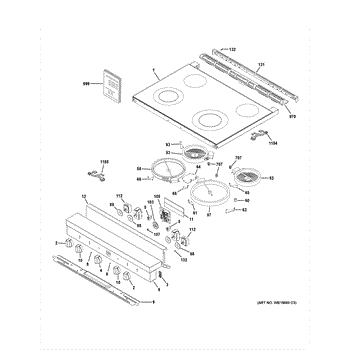

Parts for QSS740RN2SS: Control Panel & Cooktop Parts

This pilot lamp is the small indicator light that shows when a function or surface element is active, giving a clear visual cue for operation and status. It replaces a burned-out or broken indicator lamp to restore visible operation feedback. What it does

• Lights to indicate when a control, burner or other function is energized
• Replaces a dim, flickering or non-working indicator light
• Helps you quickly verify power or status at a glance
• Compatible with panels and controls that accept the OEM pilot lamp design

• Disconnect power to the appliance before starting any work to avoid shock
• Access usually requires removing the control panel or bezel; keep track of fasteners
• Handle the lamp carefully — glass and terminals are fragile

This replacement lens is the interior light cover that protects and diffuses the appliance light so you can see the cavity clearly while shielding the bulb from spills and debris. It restores proper light diffusion and protection after damage or loss. What it does:

• Covers and protects the interior light bulb from food, grease, and impact
• Diffuses light for more even interior illumination
• Helps prevent direct contact with the hot bulb for safer operation
• Restores appearance when the original lens is cracked, chipped, or missing

• One replacement lens

• Disconnect power to the appliance before starting work to prevent electrical shock.
• Allow the bulb to cool completely before removing or installing the lens to avoid burns or breakage.
• Handle the lens carefully—use gloves to protect hands and prevent fingerprints on clear surfaces.
• Follow the appliance owner's manual for lens removal/installation steps; do not force or overtighten.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Element Radiant 9 Dual is an OEM part for GE cooktops and ranges. It provides the heating surface for cooking and is designed to offer two different heating zones, allowing for versatile temperature control depending on the size of the cookware.

Causes of a bad element radiant can include burnouts from excessive use, damage due to spills or impacts, and electrical issues. A faulty heating element can result in uneven cooking or the element failing to heat up at all.

Symptoms of a bad Element Radiant 9 Dual include:

• The element not heating or only partially heating
• Uneven heating across the surface
• Visible damage or discoloration on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dual radiant surface element sits beneath the glass cooktop and provides two heating zones to match your pan size. Replacing a failed element restores fast, even heating and proper control on the affected burner.

• Heats cookware via two concentric radiant circuits beneath the glass-ceramic surface
• Lets you select inner, outer, or both rings for small or large pans (via the burner control)
• Cycles with its internal limiter to maintain the temperature you set
• Common symptoms: no heat, only one ring heats, uneven or slow heating

• Disconnect power at the breaker before servicing
• Lift/remove the glass cooktop to access elements; support the glass to prevent stress or cracks
• Transfer wiring and any mounting brackets from the old element to the new one, moving one connection at a time and documenting positions
• Test the burner for proper operation before reassembly

This seal valve keeps the refrigerator water valve properly sealed to help prevent leaks and water damage. It restores a tight seal where the valve connects to the water line or manifold for reliable dispenser and icemaker operation. What it does:

• Replaces a worn or damaged valve seal to stop water leaks at the water valve connection.
• Helps restore proper water flow control to the dispenser and icemaker when leaks or drips occur.
• Commonly used when you notice water leaking beneath or behind the fridge, puddles under the valve area, or reduced dispenser/ice performance linked to a leak.
• Works as the sealing component between the water valve and its fittings or tubing.

• One seal valve (single replacement seal)

• Disconnect power and shut off the water supply before beginning repairs.
• The valve and fittings are dry, then remove the old seal and install the new seal in the correct orientation.
• Check all tubing and connectors for damage and replace if necessary to ensure a reliable seal.
• After installation, restore water and power, then test the dispenser/icemaker and inspect for leaks.

This wiring harness connects an appliance's infinite control switch to the cooktop's wiring, restoring reliable control of the surface element. It replaces a damaged or worn connector lead to help re-establish proper heat control. What it does:

• Provides the electrical connection between the infinite control switch and the cooktop element
• Replaces frayed, burnt, or loose switch leads that cause intermittent or no heating
• Restores proper control response when the control knob doesn't change element heat
• Helps eliminate arcing or poor contact from damaged wiring

• One infinite switch wiring harness

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Compare the new harness to the old one for matching connector types and wire lengths before installation
• Route wiring away from sharp edges and hot surfaces; secure with existing clips or ties
• If you see burned terminals or additional damage, inspect surrounding components and replace as needed

This trim kit restores the finished edge and appearance of your appliance, covering worn, dented, or chipped surfaces for a clean, factory look. It's a direct-fit cosmetic replacement designed to refresh exterior styling. What it does:

• Replaces damaged or worn exterior trim to restore the appliance's finished appearance
• Hides dents, chips, and scratches along the appliance edge where the trim mounts
• Helps maintain a uniform, factory-style look after repairs or panel replacement
• Fits where OEM trim has become loose, bent, or cosmetically degraded

• Installation generally requires removal of the old trim and fastening the new trim in place with existing or supplied hardware
• Use basic hand tools; keep panels supported to avoid scratching adjacent surfaces
• Disconnect power to affected appliance panels if panels must be moved for access

This is a stainless-steel machine screw used to secure components in appliances. Its #8-18 thread and 3/8" length provide a reliable, corrosion-resistant fastening where a short machine screw is required. What it does:

• Fastens panels, brackets, or small assemblies with a #8-18 threaded hole
• Resists rust and corrosion in humid appliance compartments
• Provides a short, secure hold where space is limited
• Compatible with standard #2 Phillips or compatible driver bit for installation

• Power off and unplug the appliance before servicing
• Use the correct driver to avoid stripping the head
• Do not overtighten; stop when snug to avoid thread or component damage
• If replacing multiple fasteners, reuse only the same size and type

This fastener nut secures appliance components and wiring connections to keep assemblies stable and aligned during normal operation. It's a small replacement part that restores proper fastening where the original nut is missing, stripped, or damaged. What it does:

• Secures mounting studs, terminals, or brackets to prevent parts from coming loose
• Restores a solid mechanical and electrical connection where a worn or missing nut causes poor contact
• Helps stop vibration-related noise or movement from loose assemblies
• Used wherever a matching threaded stud or bolt requires a retained fastener

• One replacement nut (quantity: 1)

• Disconnect power and water before servicing the appliance
• Start threads by hand to avoid cross-threading; then tighten with the correct size wrench or socket
• Tighten securely but do not overtighten—over-torquing can strip threads or damage components
• Replace if threads are damaged, corroded, or if the nut no longer holds securely

This harness interface connects a range appliance control board to the wiring harness, restoring proper signal and power paths so the console and controls communicate with appliance components. It's a direct-replacement electrical connector assembly. What it does:

• Links the main control board to the appliance wiring harness for reliable signal and power transfer
• Restores communication between console/buttons and modules when connector damage prevents operation
• Can resolve symptoms like unresponsive controls, intermittent operation, or control board not detecting components
• Helps replace a melted, corroded, or broken connector to prevent shorting or open circuits

• Disconnect all power to the appliance before installing to avoid shock or damage
• Inspect mating connector and wiring for heat damage or corrosion; replace damaged wiring as needed
• Ensure connectors fully seat and locking tabs engage to prevent intermittent connections
