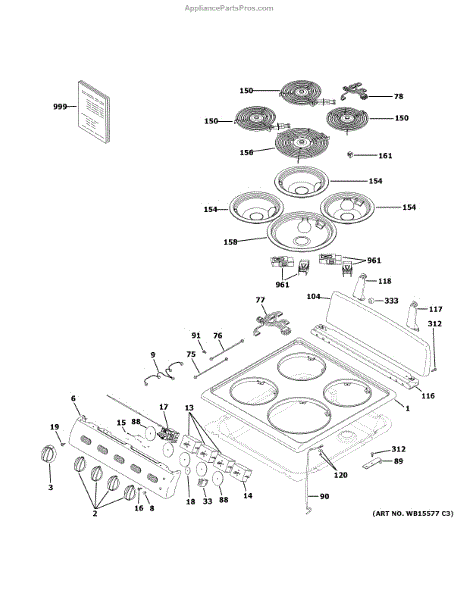

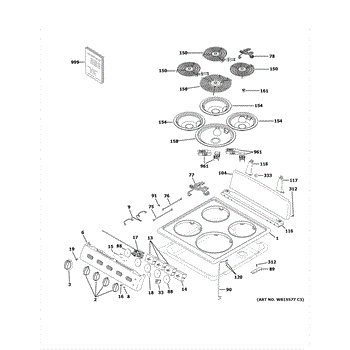

Parts for Hot Point RAS200DM2WW: Control Panel & Cooktop Parts

This is the white surface burner control knob that mounts on the range's infinite switch shaft. It lets you turn the surface element on and adjust heat levels, restoring accurate, easy temperature control when a knob is worn or broken.

• Controls a surface element by turning the infinite switch from Off through multiple heat settings
• Common failure signs: cracked or stripped knob, knob won't turn the switch, loose fit, or missing knob
• Color: white to match compatible white control panels
• Fits the switch shaft style designed for this knob's insert

• Disconnect power before replacing the knob
• Pull the old knob straight off the switch shaft; align the new knob with the shaft flat before pushing on
• Do not force—misalignment can damage the knob insert or switch
• Test each heat setting after installation

This white thermostat control knob fits the oven temperature control. It fits onto the thermostat shaft so you can select temperature settings. Replace a knob that is cracked, stripped, loose, or missing to restore normal control and a clean, matched look.

• Mounts to the oven thermostat shaft to select temperature settings
• Fixes issues like cracking, stripping, wobbling, or falling off
• Helps when markings are worn or the knob no longer turns the control
• Restores the original look of the control panel

• Turn all controls OFF and let the appliance cool before replacing the knob
• Align the flat/D-shaped shaft with the knob insert and press straight on—do not force
• Verify the pointer aligns with the panel's temperature markings
• If replacing multiple knobs, match each knob to its specific control

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

This infinite switch controls the heat output of a stove's electric surface element, restoring precise temperature adjustment for cooking. It replaces a worn or failed burner control to regain variable heat settings. What it does:

• Regulates power to an electric cooktop surface element, allowing variable heat levels
• Replaces a faulty control that causes a burner to stay off, stay on, or not change heat settings
• Stops intermittent heating, no-click conditions, or elements that only run at full or low power
• Works with standard knob-style controls

• One infinite switch assembly

• Disconnect power at the breaker before starting any repair to avoid shock
• Remove the knob and console or back panel to access the switch; handle wiring gently
• Match the part number on the switch to your original before installing

An infinite switch regulates power to a range or cooktop surface element for smooth, variable heat control. Replacing a worn switch restores accurate low-to-high settings and dependable on/off operation for the burner.

• Controls the cycling of power to a surface element based on the knob setting
• Common symptoms of failure: burner won't heat, only heats on high, won't turn off, or temperature can't be adjusted
• Can also cause intermittent heating or an unresponsive/loose-feeling knob if the shaft is damaged

• Disconnect power at the breaker before servicing; high voltage is present
• Access the control area, label/photograph wiring, and transfer leads one at a time to the matching terminals on the new switch
• Mount the switch securely, align the shaft with the knob, and reassemble the panel
• Test the burner through low, medium, and high settings to ensure proper operation

The Electric Thermostat is an OEM replacement part for GE ovens. This component is responsible for monitoring and regulating the temperature inside the oven. When you set a desired temperature, the electric thermostat ensures the oven heats to that specific temperature and maintains it throughout the cooking process.

Causes for a malfunctioning Electric Thermostat can include electrical issues, such as faulty wiring or connections, calibration problems, or wear and tear from regular use.

Symptoms of a bad Electric Thermostat include:

• Oven not reaching the set temperature
• Overheating or under-heating of the oven
• Inconsistent temperature fluctuations during cooking
• Error messages related to temperature or heating

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

This seal valve keeps the refrigerator water valve properly sealed to help prevent leaks and water damage. It restores a tight seal where the valve connects to the water line or manifold for reliable dispenser and icemaker operation. What it does:

• Replaces a worn or damaged valve seal to stop water leaks at the water valve connection.
• Helps restore proper water flow control to the dispenser and icemaker when leaks or drips occur.
• Commonly used when you notice water leaking beneath or behind the fridge, puddles under the valve area, or reduced dispenser/ice performance linked to a leak.
• Works as the sealing component between the water valve and its fittings or tubing.

• One seal valve (single replacement seal)

• Disconnect power and shut off the water supply before beginning repairs.
• The valve and fittings are dry, then remove the old seal and install the new seal in the correct orientation.
• Check all tubing and connectors for damage and replace if necessary to ensure a reliable seal.
• After installation, restore water and power, then test the dispenser/icemaker and inspect for leaks.

This backsplash is the rear panel that fits behind a freestanding or slide-in range, restoring the appliance's finished appearance and protecting the wall from heat, grease, and splatter. It's a direct-replacement trim panel for worn or damaged backsplashes. What it does:

• Covers the rear area above the cooktop to block grease and splatter from reaching the wall
• Restores the appliance's original appearance when the original panel is dented, scratched, or corroded
• Helps maintain a cleaner cooking area by providing a smooth, easy-to-clean surface
• Works with existing control and vent openings when correctly matched to the range model

• One backsplash panel

• Turn off power to the range and allow all surfaces to cool before beginning installation
• Installation typically requires removing rear mounting screws and aligning the panel tabs into the cabinet/range slots
• Use proper fasteners and avoid overtightening to prevent panel distortion

This replacement screw fastens appliance components to restore secure fit and reduce vibration or panel movement. Simple, direct replacement for a missing or stripped fastener to help maintain proper assembly and operation. What it does:

• Secures panels, brackets or trim to keep parts aligned and prevent rattling
• Restores mounting where a lost or damaged screw causes loose or sagging components
• Helps maintain electrical and mechanical connections by keeping parts properly seated
• Small hardware solution for cosmetic and functional stability

• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Inspect mating threads and replace if damaged; do not force a stripped screw
• Tighten until snug — avoid over-tightening which can crack plastic or strip threads
• If accessing areas near power or controls, disconnect appliance power first and follow all safety precautions

The 6" Surface Burner with Sensor is an OEM part for GE ranges. This part provides precise heating for cooking on your range's stovetop. The integrated sensor helps regulate the burner temperature, ensuring even and consistent cooking results.

Common causes of a bad surface burner include electrical issues, wear and tear over time, or damage from excessive heat or spills.

Symptoms of a bad surface burner with sensor include:

• Burner not heating up
• Inconsistent or uneven heating
• Burner temperature not being properly regulated
• Error codes or malfunction indicators on the range display

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6" Burner Bowl is an OEM part for GE cooktops and ranges. It is designed to sit beneath the heating element, catching spills and drips that occur during cooking. This helps to keep the cooktop clean and ensures that the heating element functions properly by preventing food debris from interfering with its operation.

Over time, burner bowls can become discolored, warped, or corroded due to exposure to high heat and spills. Additionally, frequent cleaning or scraping can cause scratches and other damage, which may compromise their ability to effectively catch spills and support the heating element.

Symptoms of a bad burner bowl include:

• Discoloration or charring
• Warping or misalignment with the heating element
• Difficulty in fitting the bowl securely in place
• Residue buildup that is difficult to clean

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Notes:

• For the matching 8” drip pan, order WB31K10266.
• Surface elements:
• 6": WB30M1;  8"WB30M2.
• Element terminal block: WB17X5113.

This 8-inch drip bowl sits beneath the surface coil on your range to catch spills and support the element. Replacing a rusted or stained bowl refreshes the cooktop and helps the coil sit level for reliable heating.

• Collects drips and boilovers under the 8-inch surface coil
• Positions and supports the element over the receptacle
• Helps keep the cooktop cleaner and easier to maintain
• Common signs to replace: heavy staining, rust/corrosion, warping, holes, or the element not sitting level

• Disconnect power and allow the cooktop to cool completely
• Lift the coil element slightly, then pull straight out of the receptacle
• Remove the old bowl, align the notch/orientation of the new bowl, and seat it flat
• Reinsert the coil element terminals fully into the receptacle and verify it sits level

The 8" Burner Bowl is an OEM replacement part for GE ranges and cooktops. It is responsible for safely collecting and containing grease and cooking liquids below the burner.

Causes can include damage or deformation from repeated high heat exposure over time.

Symptoms of a bad drip pan include:

• Grease or liquids leaking outside of the drip pan area
• Warping or bending that prevents proper placement below the burner
• Inability to fully trap and contain grease and cooking residue
• Accelerated buildup or residue that impacts burner performance

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This handle spacer positions the appliance handle at the correct distance from the door or panel for smooth operation. Replacing a worn or missing spacer restores proper standoff, alignment, and feel, and helps prevent rubbing, rattling, or looseness.

• Maintains proper spacing between the handle base and mounting surface
• Helps keep the handle aligned and secure
• Reduces rubbing or contact with the door/panel
• Common fix for a wobbly, misaligned, or scraping handle

• Unplug power and allow hot surfaces to cool before servicing
• Support the door/handle while removing mounting screws to prevent strain
• Note the spacer's position and orientation; reinstall the new spacer in the same location
• Tighten screws snugly; do not overtighten to avoid damage

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.
