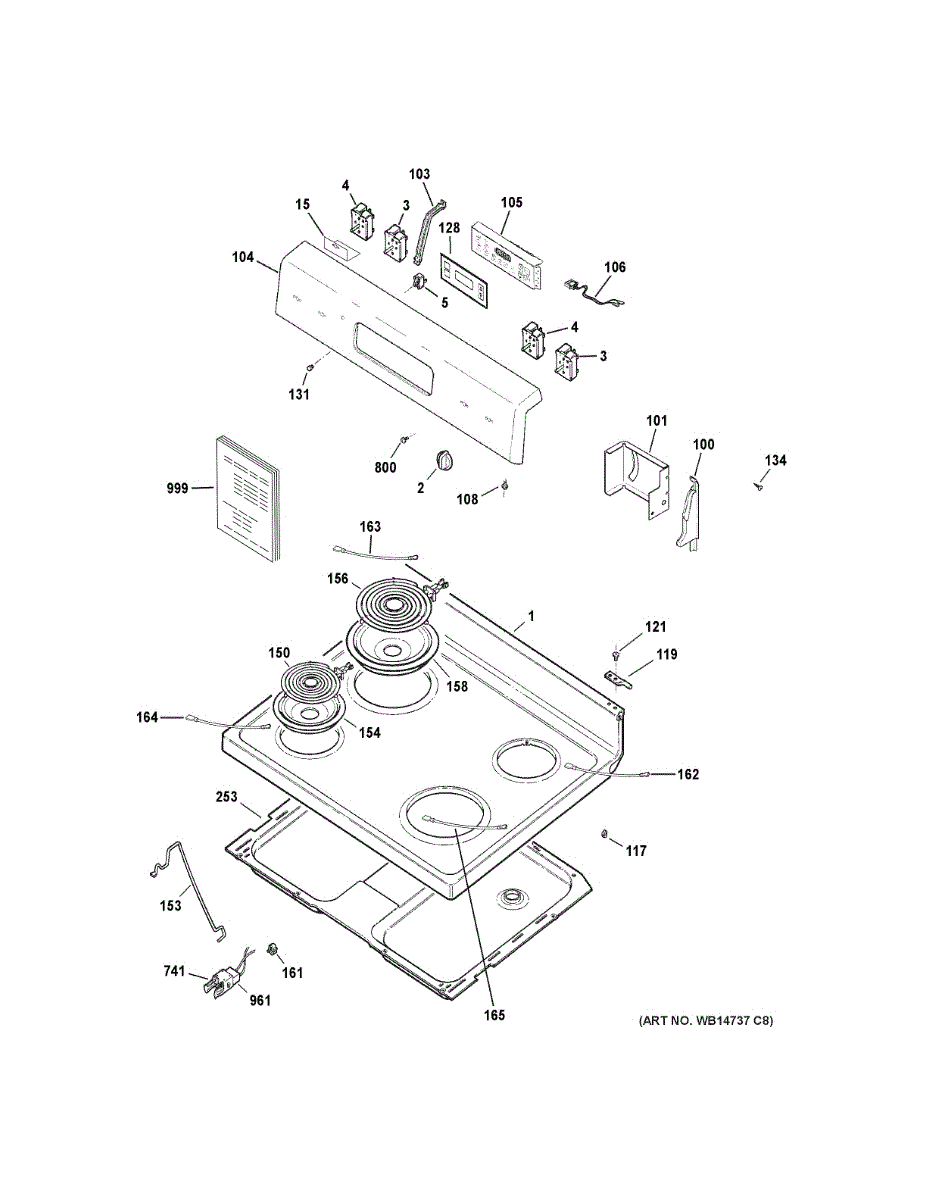

Parts for Hot Point RBS360DM2BB: Control Panel & Cooktop Parts

This replacement range top restores the flat surface that supports burners and cookware, renewing appearance and providing a stable cooking platform. Fits compatible GE ranges and helps keep the cooktop area sealed and serviceable. What it does:

• Provides the cooktop surface that supports burners, grates, and cookware
• Replaces a warped, dented, corroded, or cosmetically damaged top
• Helps maintain proper alignment of burner assemblies and trim
• Can prevent debris from falling into the range interior around burners

• One range top

• Disconnect power and gas supply before beginning service
• Remove burner grates, burner caps and assemblies as required to access mounting fasteners
• Handle carefully to avoid scratching the finished surface; use two people for larger tops

This control knob replaces a worn or broken knob on your range, restoring a solid feel and precise control of settings. It fits onto the control shaft to let you reliably select and adjust cooking settings.

• Attaches to the valve or switch shaft to select and adjust settings
• Restores proper engagement when the original hub is cracked or stripped
• Helps ensure accurate adjustments of flame or element power
• Typical signs you need this part: knob is cracked, loose, slipping, or missing

• Disconnect power and ensure all burners are cool before servicing
• Pull the old knob straight off the stem; avoid prying sideways
• Align the new knob with the stem orientation and press firmly into place; if your model uses a set screw, tighten gently
• Test for smooth operation and correct indexing after installation

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

Color: Black. Left hand side.

Color: Black. Right hand side.

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

The 6" Surface Burner with Sensor is an OEM part for GE ranges. This part provides precise heating for cooking on your range's stovetop. The integrated sensor helps regulate the burner temperature, ensuring even and consistent cooking results.

Common causes of a bad surface burner include electrical issues, wear and tear over time, or damage from excessive heat or spills.

Symptoms of a bad surface burner with sensor include:

• Burner not heating up
• Inconsistent or uneven heating
• Burner temperature not being properly regulated
• Error codes or malfunction indicators on the range display

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This support rod props up the lift-up top on your range, providing a secure hold while you clean or service components beneath. Replacing a bent or missing rod restores safe, stable support for the top panel.

• Holds the range top securely in the raised position during cleaning or service
• Helps prevent the top from dropping unexpectedly
• Restores proper alignment if the original rod is bent or worn
• Common symptoms: top won't stay up, rod is missing, bent, or loose

• Disconnect power and shut off the gas supply before servicing
• Support the top while removing/installing the rod to prevent accidental dropping
• Reuse or transfer any retaining hardware/clips from the original part
• Ensure the rod is fully seated in its retainer before lowering the top

This 8-inch drip bowl sits beneath the surface coil on your range to catch spills and support the element. Replacing a rusted or stained bowl refreshes the cooktop and helps the coil sit level for reliable heating.

• Collects drips and boilovers under the 8-inch surface coil
• Positions and supports the element over the receptacle
• Helps keep the cooktop cleaner and easier to maintain
• Common signs to replace: heavy staining, rust/corrosion, warping, holes, or the element not sitting level

• Disconnect power and allow the cooktop to cool completely
• Lift the coil element slightly, then pull straight out of the receptacle
• Remove the old bowl, align the notch/orientation of the new bowl, and seat it flat
• Reinsert the coil element terminals fully into the receptacle and verify it sits level

This cooktop box houses and protects the cooktop's wiring connections, restoring a safe, code-ready junction point for electrical supply lines. Use this part when the original box is damaged, corroded, or missing fasteners. What it does

• Provides a secure enclosure for cooktop electrical connections and strain relief
• Prevents exposed wiring and reduces risk of shorts or arcing at the connection point
• Restores proper mounting for incoming supply conduit or cable
• Helps correct symptoms like intermittent power, visible damage to the wiring box, or a loose/unstable connection area

• One cooktop junction wiring box

• Disconnect power at the breaker before inspecting or replacing the box
• Replacement typically requires removing the cooktop and transferring wiring into the new box; keep wire routing and grounding intact
• Use only approved screws/fasteners and maintain proper strain relief and grounding per local code

This small retainer secures the surface element receptacle in a range or cooktop so the element plugs in straight and stays seated. Replacing a bent or missing clip helps restore a stable, reliable connection.

• Holds the surface element receptacle firmly to the cooktop or bracket
• Keeps the element plug aligned and fully seated
• Helps prevent arcing, heat damage, and intermittent burner performance from a loose receptacle
• Useful when the element feels wobbly or the receptacle shifts during use

• Disconnect power before servicing
• Lift the cooktop or access panel to reach the receptacle area
• Support the receptacle, release the old clip, and snap the new clip into place
• Ensure the receptacle is secure and aligned before reinstalling the element

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.
