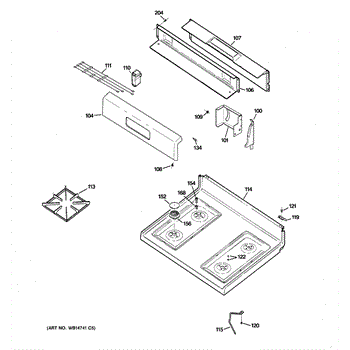

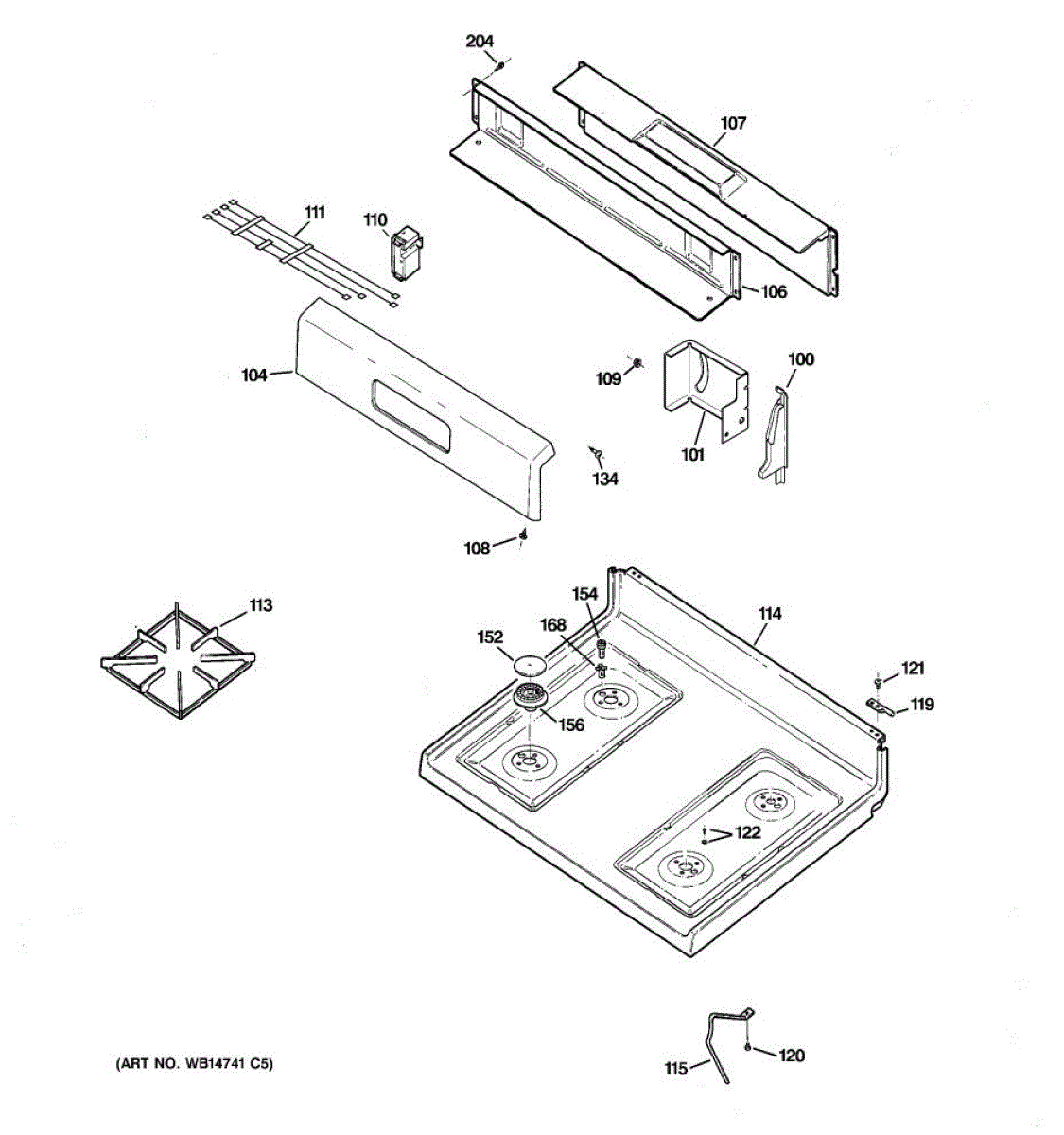

Parts for Hot Point RGB526DET2BB: 02 - Control Panel & Cooktop Parts

Color: White. Left Hand side.

Color: White. Right Hand side

Color: Black. Left hand side.

Color: Black. Right hand side.

Right hand side

Left hand side

Includes 12 speed nuts.

Spark plug modules are a part required in the operation of ranges. The spark that comes from the spark module ignites a low-pressure flow of gas to the pilot light. It stays lit until the control in the oven's thermostat is off. With use, because of accidental damage, or as a result of misuse, the spark plug module may wear out or stop functioning correctly. If that happens, it will require a replacement.The spark plug module should emit a white spark between the metal edge of the burner and the igniter pin. If there is no spark or if the spark is yellow in color, the part is likely not working correctly. The repair of the spark plug module is simple. Unplug the range from the power supply before starting the replacement.This spark plug module is a genuine OEM replacement part. It is sourced directly from the manufacturer. The spark plug module is made of durable, high-quality materials. The replacement part is sold as an individual unit. The piece is compatible with different range models. It can be installed in appliances that were manufactured by brands including General Electric, Hotpoint, and RCA.

Color: Gray

Color: Black. Measures about 9 inches wide by 9 inches deep.

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This factory screw secures components in your appliance for a tight, reliable fit. Replacing a missing or damaged screw helps stop rattles, restore alignment, and keep panels or brackets firmly attached. What it does:

• Acts as a mounting fastener for appliance components such as panels, brackets, or assemblies
• Maintains proper alignment and stability of secured parts
• Helps reduce vibration, rattling, or looseness caused by worn or missing hardware
• Replaces stripped, rusted, or lost screws to restore secure attachment

• One screw

• Disconnect power; shut off gas supply before servicing
• Replace screws one at a time to match length and location
• Start threads by hand to avoid cross-threading; use the correct driver/bit
• Tighten snugly—do not overtighten; inspect mating clip or bracket if threads are damaged

Color: White. Mounting screw for end caps.

Medium. Color: Grey. It measures about 3 inches in diameter.

The Burner Cap is an OEM part for GE gas ranges. This component sits on top of the burner head, dispersing the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high temperatures, accidental drops or impacts, and buildup of food residues or cleaning chemicals that can erode the surface over time.

Symptoms of a bad burner cap include:

• Uneven flame distribution or yellow flames
• Difficulty in igniting the burner
• Visible cracks, chips, or warping on the cap
• Poor cooking performance due to inconsistent heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold
