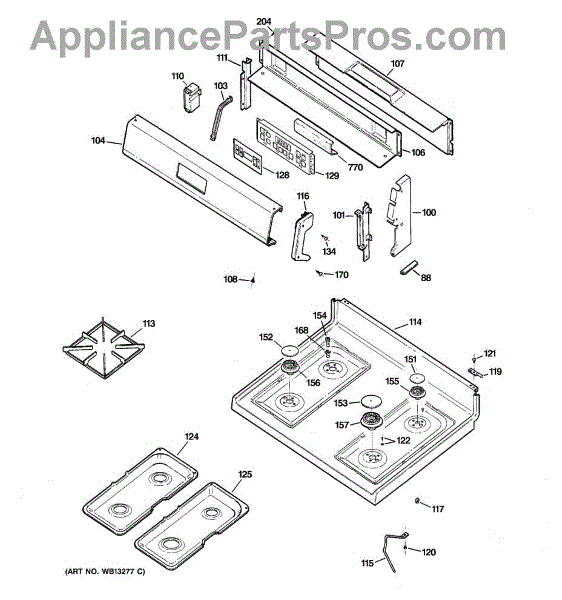

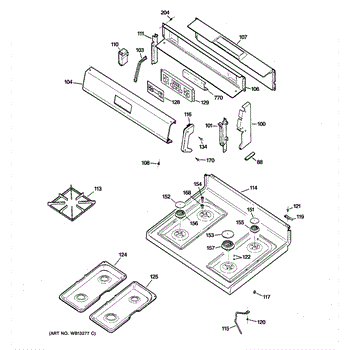

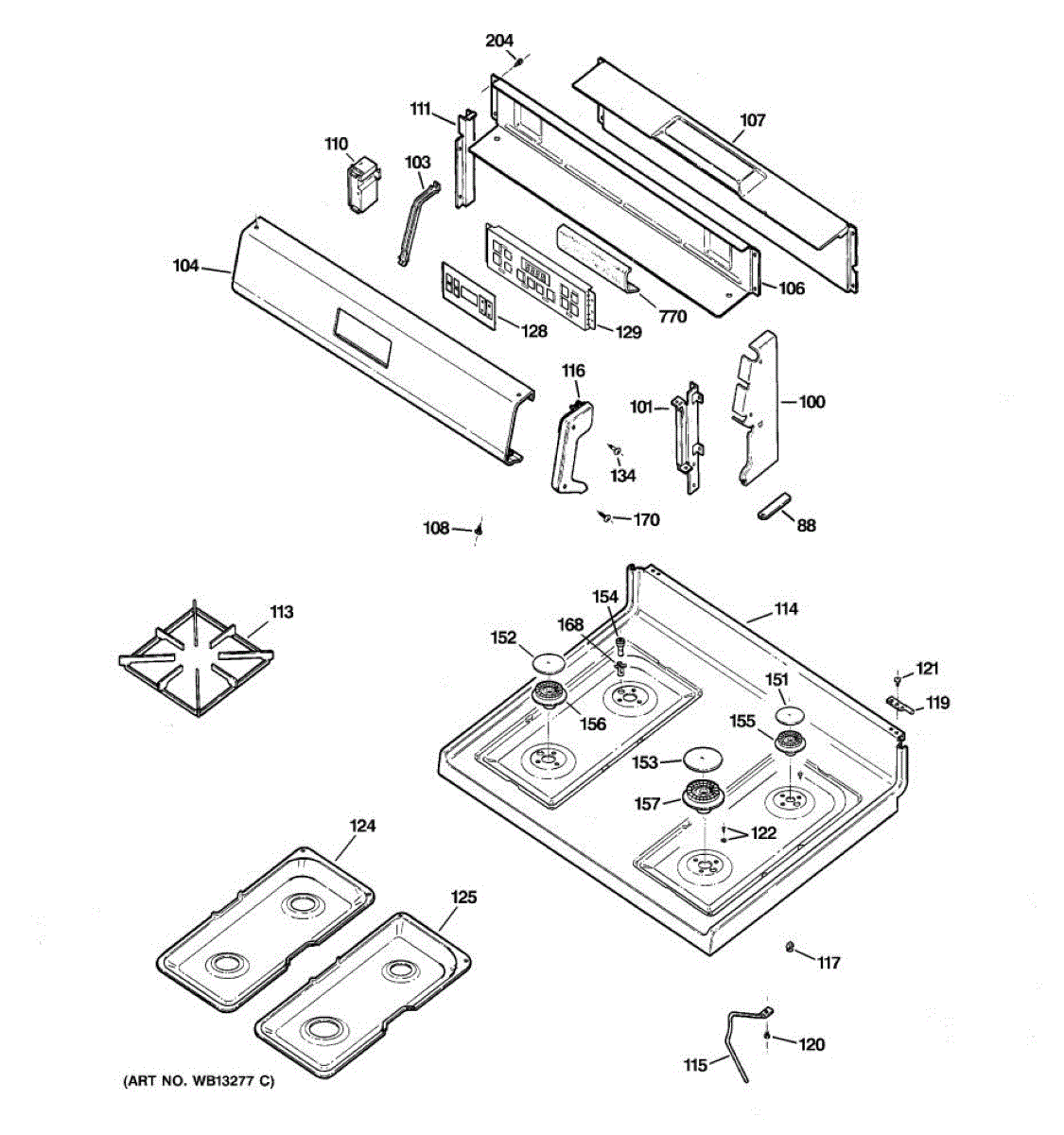

Parts for Hot Point RGB740BEHFCT: 02 - Control Panel & Cooktop Parts

Color: Black

Color: White. This is the left side end cover. For right side use WB07K10001.

Color: Whie. This is the right side end cover. For left side use WB07K10002.

This right-hand end plate is a direct-replacement body panel that restores proper support and alignment to the appliance's exterior components. It helps maintain a secure fit and appearance after damage or wear. What it does:

• Replaces a bent, cracked, or corroded right-side end plate to restore panel alignment
• Provides mounting/support for adjacent trim and components to prevent gaps or sagging
• Stops rattling or vibration caused by a loose or damaged end plate
• Helps maintain a finished exterior look and proper sealing where panels meet

• One right-hand end plate

• Disconnect power (and water, if applicable) before beginning any repair
• Use appropriate hand tools; avoid overtightening fasteners to prevent panel distortion
• Handle edges carefully — panels and sheet metal can be sharp
• Test fit and align panels before fully tightening all screws

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Spark plug modules are a part required in the operation of ranges. The spark that comes from the spark module ignites a low-pressure flow of gas to the pilot light. It stays lit until the control in the oven's thermostat is off. With use, because of accidental damage, or as a result of misuse, the spark plug module may wear out or stop functioning correctly. If that happens, it will require a replacement.The spark plug module should emit a white spark between the metal edge of the burner and the igniter pin. If there is no spark or if the spark is yellow in color, the part is likely not working correctly. The repair of the spark plug module is simple. Unplug the range from the power supply before starting the replacement.This spark plug module is a genuine OEM replacement part. It is sourced directly from the manufacturer. The spark plug module is made of durable, high-quality materials. The replacement part is sold as an individual unit. The piece is compatible with different range models. It can be installed in appliances that were manufactured by brands including General Electric, Hotpoint, and RCA.

The Burner Grate is an OEM part for GE ranges. It provides a stable surface for pots and pans on the stovetop, ensuring they remain securely in place during cooking. This grate is designed to withstand high temperatures and support heavy cookware, contributing to a safe and efficient cooking experience. The grate measures about 8-1/2 inches wide by 9 inches deep.

Over time, burner grates can become worn or damaged due to constant exposure to heat, spills, and heavy use. A compromised grate can affect the stability of your cookware and hinder proper heat distribution.

Symptoms of a bad burner grate include:

• Cracks or breaks in the grate
• Uneven or unstable surface for pots and pans
• Difficulty positioning cookware securely
• Visible signs of wear or rust

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White

Color: Biscuit

This right-side black end cap finishes and secures the end of a trim, rail or channel to restore proper fit and appearance. It prevents sharp edges and keeps the assembly aligned for reliable operation. What it does:

• Covers and protects the exposed end of a trim, rail or channel to reduce sharp edges and wear
• Helps hold the trim/rail in place so shelves, drawers or doors stay aligned and operate smoothly
• Stops rattling or movement caused by a missing or broken end cap
• Restores OEM appearance where the original end cap is cracked, warped or lost

• One right-side black end cap

• High-level replacement; typically snaps or slides into position without special tools
• Remove power or secure appliance parts as needed before working in the area
• Inspect mating trim/rail for damage and replace if worn to ensure proper fit

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This cooktop mounting screw secures the cooktop to its frame or mounting brackets, keeping the surface stable and properly aligned. Replace stripped, missing, or rusty hardware to eliminate wobble, rattling, or lifted corners.

• Secures the cooktop to the chassis or brackets to prevent movement during use
• Helps maintain a flush, stable installation and proper alignment
• Replacing damaged or missing screws can reduce vibration, rattling, and gaps
• Supports safe, consistent operation of the cooking surface

• Disconnect power at the breaker; for gas models, also shut off the gas supply
• Support the cooktop while loosening/tightening hardware to avoid stressing the top
• Start all screws before tightening; do not overtighten

The Double Drip Pan is an OEM part for GE ranges. This component is located beneath the burners and is designed to catch spills, drips, and other cooking residues, helping to keep the stove clean and preventing potential damage to the internal components of the range. It features a double design to accommodate two burners simultaneously. This drip pan measures approximately 8 inches wide by 17 inches deep.

You should replace the double drip pan if it becomes damaged, corroded, or excessively dirty to the point where it can no longer be cleaned effectively. Causes of a bad drip pan can include exposure to high heat, spills of acidic or corrosive substances, or general wear and tear over time.

Symptoms of a bad double drip pan include:

• Visible rust or corrosion
• Holes or cracks in the pan
• Persistent residue or buildup that cannot be removed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Double Drip Pan is an OEM part for GE ranges and stoves. It is specifically designed to sit beneath the burner elements, catching spills, drips, and crumbs that fall during cooking. This not only helps keep your stove clean but also reduces the risk of burn-on residues that can be difficult to remove and may cause smoke or odors during cooking.

Causes of a bad drip pan include accumulation of burnt food particles, rusting due to prolonged exposure to moisture, and physical damage such as warping or cracking.

Symptoms of a bad double drip pan include:

• Persistent stains and residues that are hard to clean
• Rust or corrosion that can transfer to other parts of the stove
• Inefficient heating due to uneven surfaces affecting pan stability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Overlay is an OEM replacement part for GE ranges and ovens, designed to provide a clear, durable interface for the appliance's control panel. The overlay is a protective and decorative film that labels each function and control on the electronic control board of your range or oven. It allows users to select settings and modes accurately.

Common causes of a bad overlay include frequent cleaning using harsh chemicals that degrade the material, exposure to high heat or direct sunlight resulting in fading or warping, and physical damage from impacts or scratches that may occur during cleaning or general use.

Symptoms of a bad overlay include:

• Difficulty in selecting the correct settings due to faded or missing labels.
• The appearance of the control panel looks worn or unattractive, affecting the overall look of your kitchen.
• Moisture infiltration into the control panel, potentially causing electrical issues.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electronic Control Board is an OEM part for GE ovens. This component manages the oven's various functions, such as temperature regulation, cooking modes, and timing.

Common causes of failure include electrical surges, component wear over time, or exposure to moisture and high temperatures. A defective control board can lead to improper functioning of the oven's features and settings.

Symptoms of a bad Electronic Control Board include:

• Oven not heating or not maintaining the set temperature
• Display not working or showing error codes
• Unresponsive control buttons
• Oven shutting off unexpectedly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black. Small

The Burner Cap is an OEM part for GE gas ranges. This component sits on top of the burner head, dispersing the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high temperatures, accidental drops or impacts, and buildup of food residues or cleaning chemicals that can erode the surface over time.

Symptoms of a bad burner cap include:

• Uneven flame distribution or yellow flames
• Difficulty in igniting the burner
• Visible cracks, chips, or warping on the cap
• Poor cooking performance due to inconsistent heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black. This large cap measures about 3-1/2 inches in diameter.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

A replacement control insulation piece that helps protect the appliance control assembly from heat and abrasion. Restores the thermal barrier behind the control panel to help prevent heat-related control damage. What it does:

• Shields the control board and wiring from oven/burner heat and radiant heat buildup.
• Helps prevent heat-related failures, melting, or damage to the control assembly.
• Reduces risk of shorting or chafing where wiring passes near the control area.
• Can reduce intermittent control issues that occur when components overheat.

• One control insulation piece

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the console/control panel to access and replace the insulation.
• Align the insulation carefully; secure any clips or adhesive exactly as OEM design specifies.
• If insulation is brittle, torn, or shows heat damage elsewhere, inspect adjacent components and wiring for damage.
