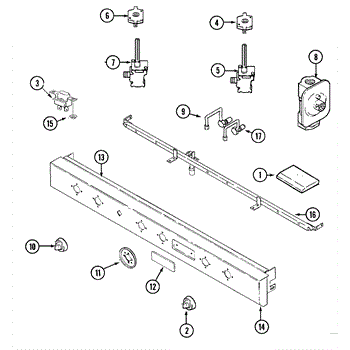

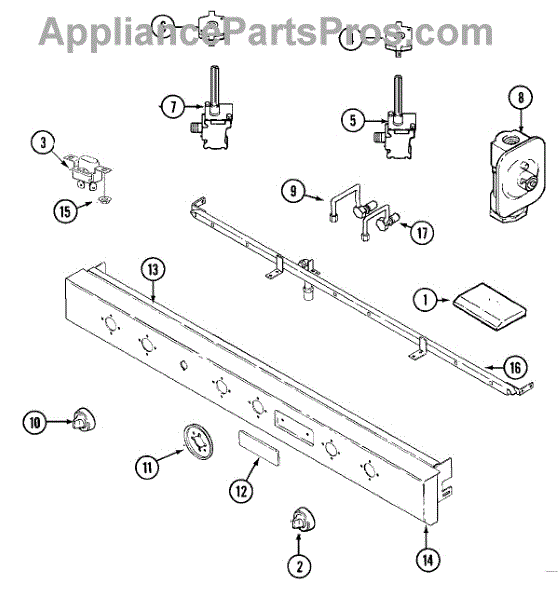

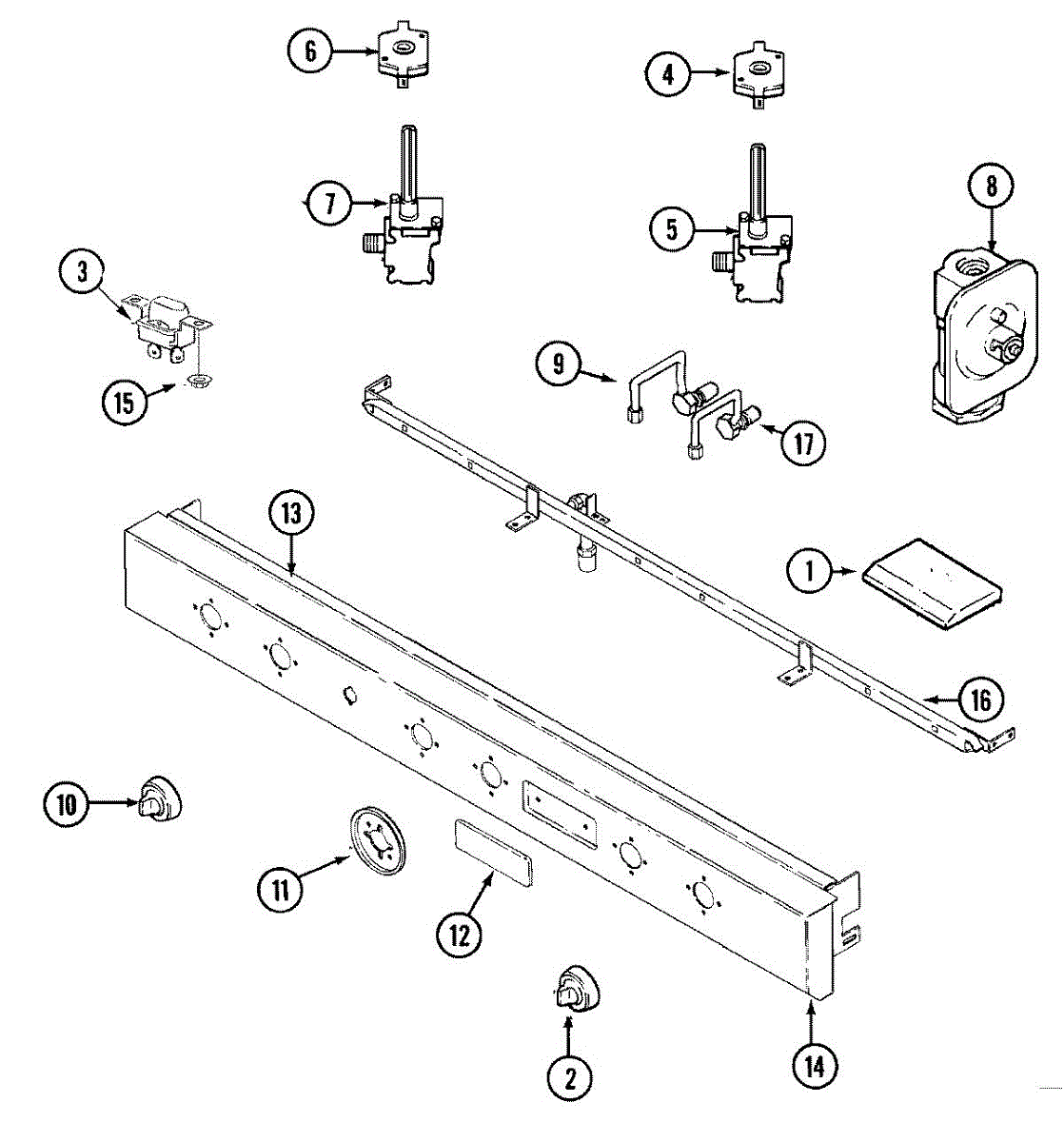

Parts for Jenn-Air CVG4380PR: 03 - Control Panel Parts

Color: black. It measures about 2-1/2 inches in diameter.

Replacement igniter switch that restores spark ignition for gas cooktops and ranges, helping burners light reliably and reducing intermittent or no-ignite symptoms. Designed as a like-for-like control component when your original switch fails. What it does:

• Sends the electrical spark signal to the burner ignition circuit so the burner lights
• Stops clicking or sparking when the switch fails, which can cause burners not to ignite
• Addresses symptoms like intermittent ignition, continuous clicking without flame, or no spark from the burner electrode
• Works as the control point between user knob/ignition module and the spark system

• Turn off power to the appliance and shut off the gas supply before servicing
• Replace with the exact part number and match connector types; do not force-fit a non-matching switch
• After installation, test burners for proper ignition and check for gas leaks before normal use

This gas valve controls the flow of gas to a burner, enabling safe ignition and precise flame adjustment. Replacing a worn valve restores smooth knob operation and consistent flame performance on your gas cooking appliance.

• Opens and closes to start/stop gas flow to a specific burner
• Works with the control knob to modulate flame size
• Helpful when a burner won't light despite spark/ignition present
• Can address issues like inconsistent flame or a knob that's hard to turn

• Disconnect power and shut off the gas supply before servicing
• Match the orientation and connections to the original valve
• Use an approved gas-rated thread sealant on threaded fittings
• After installation, check all joints for leaks with a soap-and-water solution

This top burner valve switch mounts to a surface burner gas valve and closes the ignition circuit when you turn the knob to Lite. Replacing a worn switch restores dependable sparking and stops intermittent or nonstop clicking at the burners.

• Mounts on the surface burner valve and closes the ignition circuit at the Lite position
• Signals the spark module to fire the igniters so the burner lights
• Helps ensure quick, consistent burner ignition
• Common symptoms: no spark at a burner, intermittent ignition, or continuous clicking with knobs in Off

• Disconnect power and shut off the gas supply before servicing
• Pull off the burner knob and remove the control/manifold panel to access the valve switch
• Transfer wires one at a time and align the switch correctly on the valve stem; avoid overtightening
• Reassemble, restore power, test for spark with gas off, then relight and check for leaks

The Regulator is an OEM replacement part for Whirlpool gas ranges. It regulates the flow of gas from the supply line to the burners, ensuring safe and efficient operation of your range. It maintains a consistent gas pressure, allowing for accurate and controlled heat distribution during cooking.

A bad pressure regulator can occur due to wear and tear, clogging, or damage to the internal components. If you notice symptoms such as uneven flame, difficulty in igniting the burners, or gas leaks, it may be time to replace the pressure regulator.

Symptoms of a bad gas pressure regulator include:

• Uneven flame
• Difficulty in igniting burners
• Gas leaks

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
