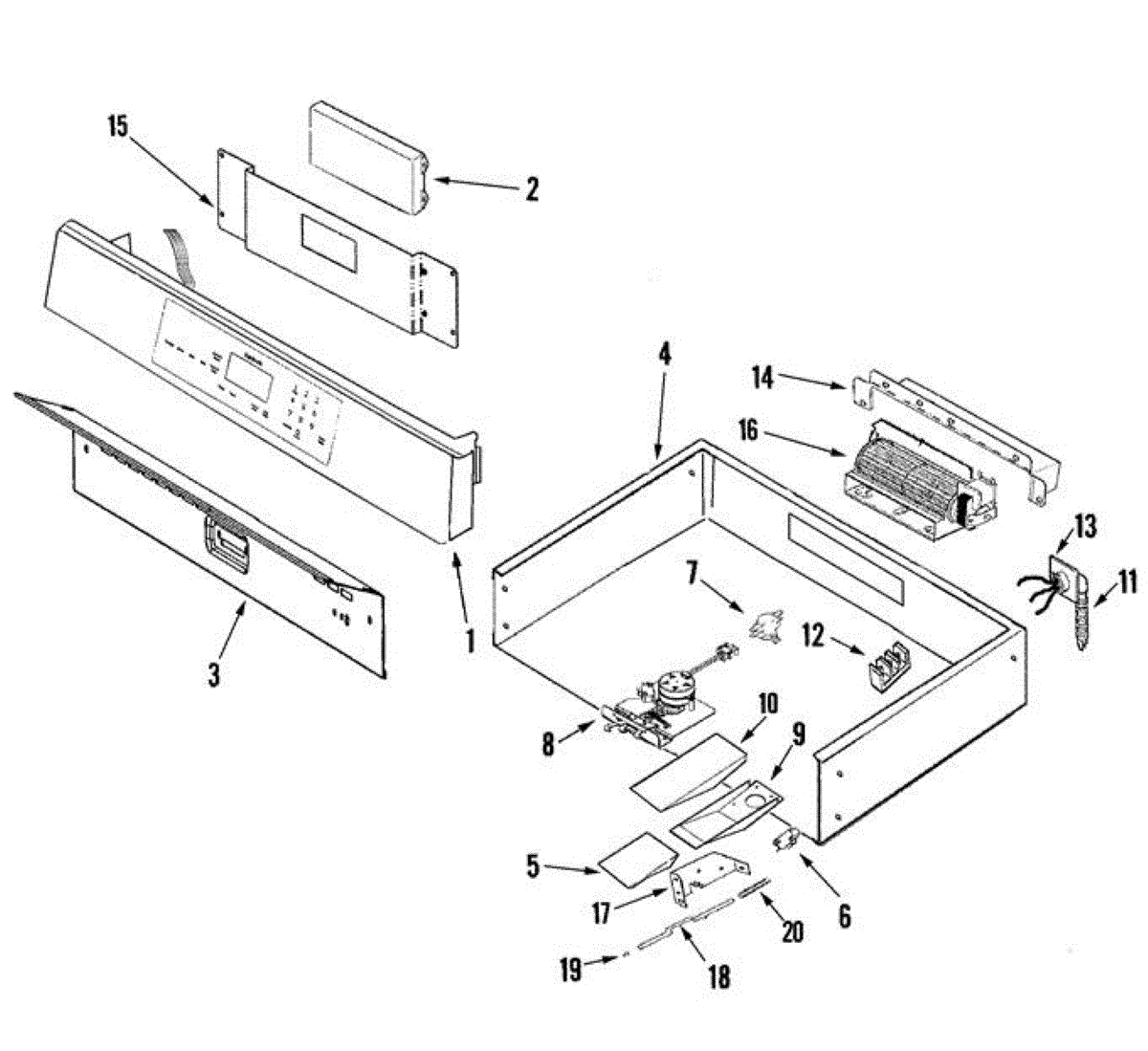

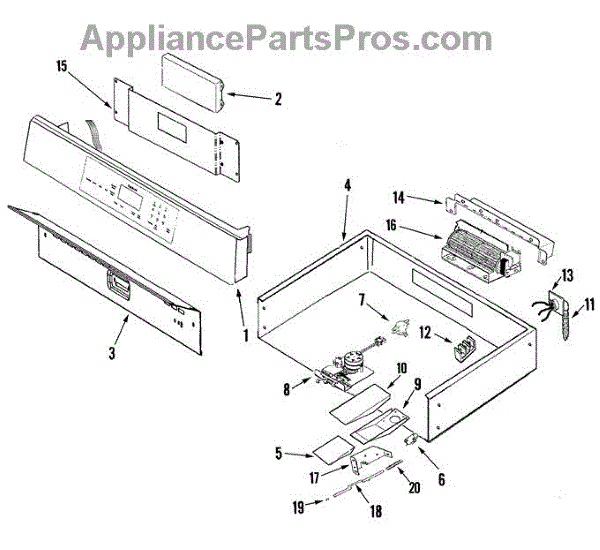

Parts for Jenn-Air JJW8330DDS: Control Panel And Internal Controls Parts

Designed for use on an range, this is a control panel assembly. It is often referred to as the touchpad. This part houses the selection buttons and display components for the unit. The purpose of the control panel is to control all of the functions of the oven. There are buttons for each function, such as bake, broil, light, and timer.When one or more of the range buttons do not work, it is possible that the control panel assembly has gone bad. Over time, the buttons may begin to wear and the user may wish to replace this part for cosmetic purposes. Be sure to unplug the unit from its power source before trying to replace this part.This particular control panel assembly is compatible with electric ranges that have been manufactured by the Whirlpool and Jenn-Air brands. It is sourced from the manufacturer and is sold individually.

Electronic H1 clock control for your oven — replaces the oven's clock/timer and user-interface control to restore timekeeping and basic oven operation. Designed to restore visible clock/timer functions and allow normal oven cycles. What it does

• Replaces the H1 electronic clock/control assembly that manages the oven clock, timer and key inputs.
• Restores a working clock display and timer/alarm functions.
• Helps resolve symptoms such as a blank or non-responsive clock/timer display, unresponsive controls, or oven that won't start when timed functions are used.
• Interfaces with the oven's user controls to send start/stop and mode signals to the main control system.

• One electronic H1 clock/control assembly.

• Disconnect power at the breaker before beginning any service to avoid shock.
• Handle the control by its edges and avoid touching circuit traces; use anti-static precautions if available.
• Verify the part number on the replacement matches the old part before installation.

Thermal cutoff

This part is a replacement door latch assembly that is intended for use with wall ovens.The door latch assembly makes sure that the oven door locks properly. This is an essential safety component, and the user may notice the appliance doesn't work or certain cycles, such as the self-cleaning cycle, will not start should the latch be faulty. Basic household tools are needed to install this part. Make sure the oven is powered off, unplugged, and cooled down before beginning the repair process.This part is compatible with several different wall oven models that have been manufactured by Whirlpool, Maytag, Kitchenaid, Magic Chef, Amana, Admiral, and some other brands. It is a genuine OEM part from Whirlpool made of high-quality, durable materials. This part is sold individually.

Comes with three connectors per package.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
