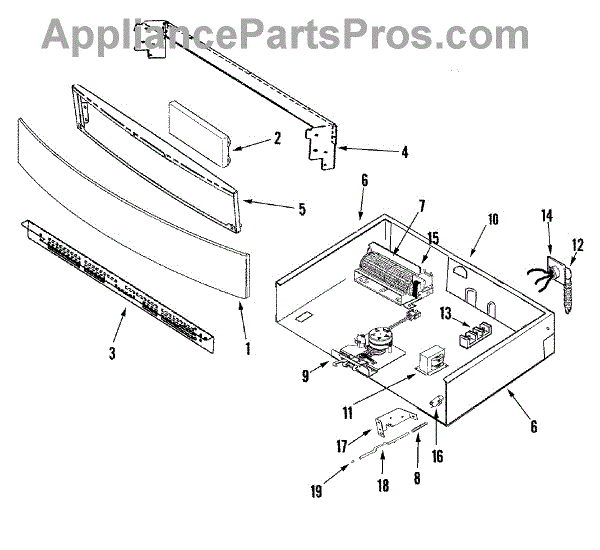

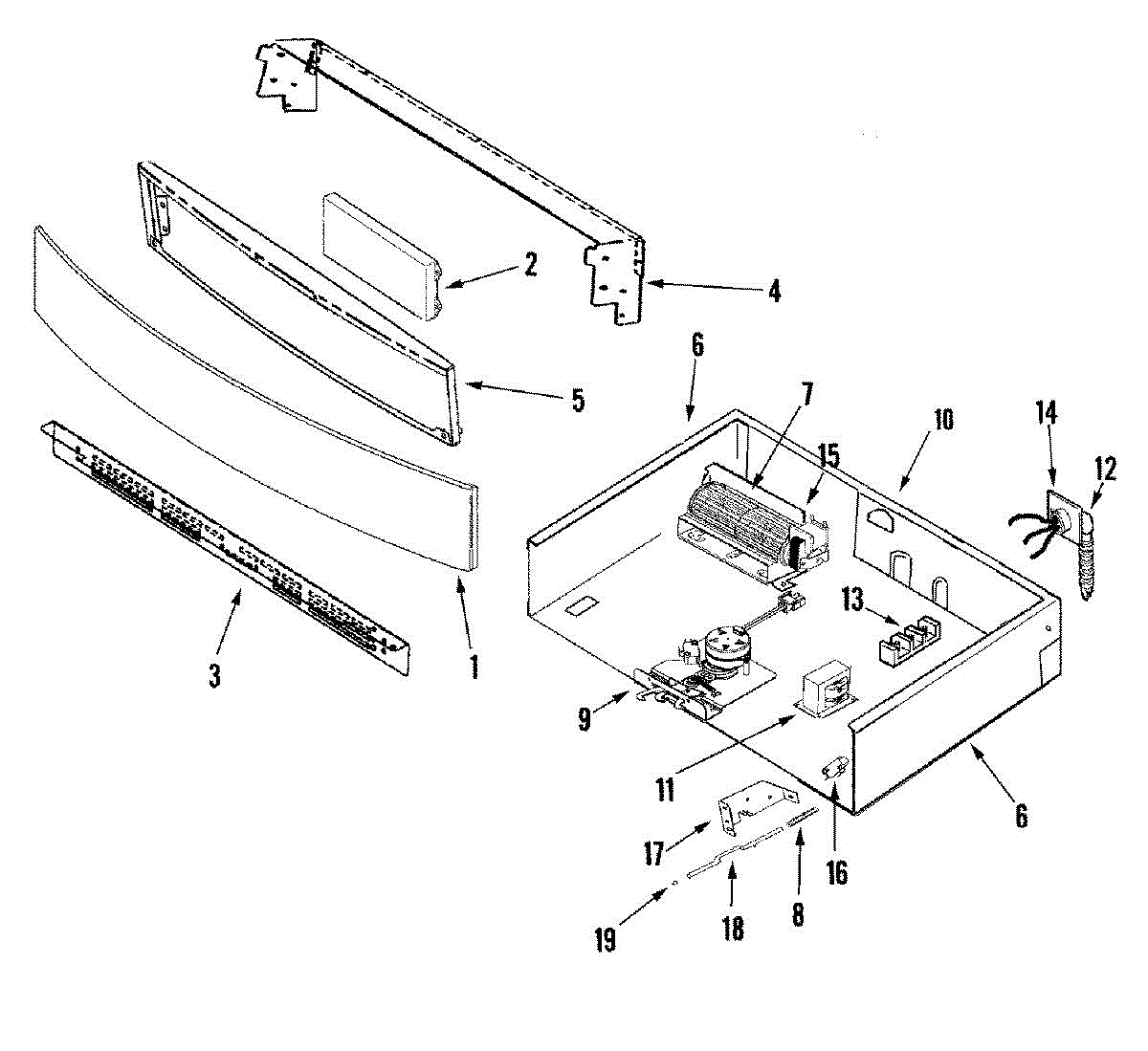

Parts for Jenn-Air JMW8530DAQ: 02 - Control Panel And Internal Controls Parts

This single electronic control replaces a failed console control to restore user input and cycle selection. It provides the appliance's primary interface for selecting settings and signaling the main control board. What it does

• Receives and processes user inputs to start and control cycles
• Sends commands to heating/motor/timing systems so selected cycles run correctly
• Can correct symptoms like unresponsive buttons, incorrect or no cycle starts, or intermittent control behavior
• Interfaces with the appliance's wire harness and mounting bracket for secure installation

• Disconnect power before removing the old control to avoid shock.
• Handle the control and printed circuit board carefully; avoid static discharge and mechanical stress.
• Removal typically requires control panel or console disassembly and unplugging the wire harness—keep fasteners and connectors organized.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This tangential cooling fan moves a wide stream of air across the oven cavity and control area to remove excess heat. Replacing a weak or noisy blower restores proper cooling to help protect control electronics and surrounding surfaces.

• Circulates cooling air to dissipate heat from the oven and control panel
• Operates during and after bake/broil/self-clean to keep temperatures in check
• Helps prevent over-temperature shutdowns and protects internal components
• Common symptoms: fan won't run, runs loudly or vibrates, weak airflow; control area feels too hot; oven may shut off early or display a cooling fan/over-temp error

• Disconnect power at the breaker and allow the appliance to cool before servicing
• Access location varies by model (often behind the control/top trim or rear cover)
• Note wire positions and mounting orientation; transfer any brackets as needed and reuse original hardware
• Watch for sharp metal edges; verify smooth, quiet fan operation before reassembly

This part is a replacement door latch assembly that is intended for use with wall ovens.The door latch assembly makes sure that the oven door locks properly. This is an essential safety component, and the user may notice the appliance doesn't work or certain cycles, such as the self-cleaning cycle, will not start should the latch be faulty. Basic household tools are needed to install this part. Make sure the oven is powered off, unplugged, and cooled down before beginning the repair process.This part is compatible with several different wall oven models that have been manufactured by Whirlpool, Maytag, Kitchenaid, Magic Chef, Amana, Admiral, and some other brands. It is a genuine OEM part from Whirlpool made of high-quality, durable materials. This part is sold individually.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Comes with three connectors per package.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The light switch assembly controls power to the appliance light circuit. Replace a worn or faulty switch to restore reliable on/off operation when your lamp won't turn on, won't turn off, or works intermittently. What it does:

• Opens and closes electrical contacts to supply or cut power to the light
• Controls cavity or task lights as designed for the specific model
• Typical symptoms: light won't turn on, won't turn off, or flickers/intermittently works
• Physical signs of failure: stuck/loose actuator or no continuity when tested

• 1 light switch assembly

• Disconnect power at the breaker or unplug the appliance before service
• Access location varies by model; remove necessary panels/trim to reach the switch
• Note wire positions and transfer them one at a time to the new switch; secure the mounting
• Restore power and test light operation before final reassembly
