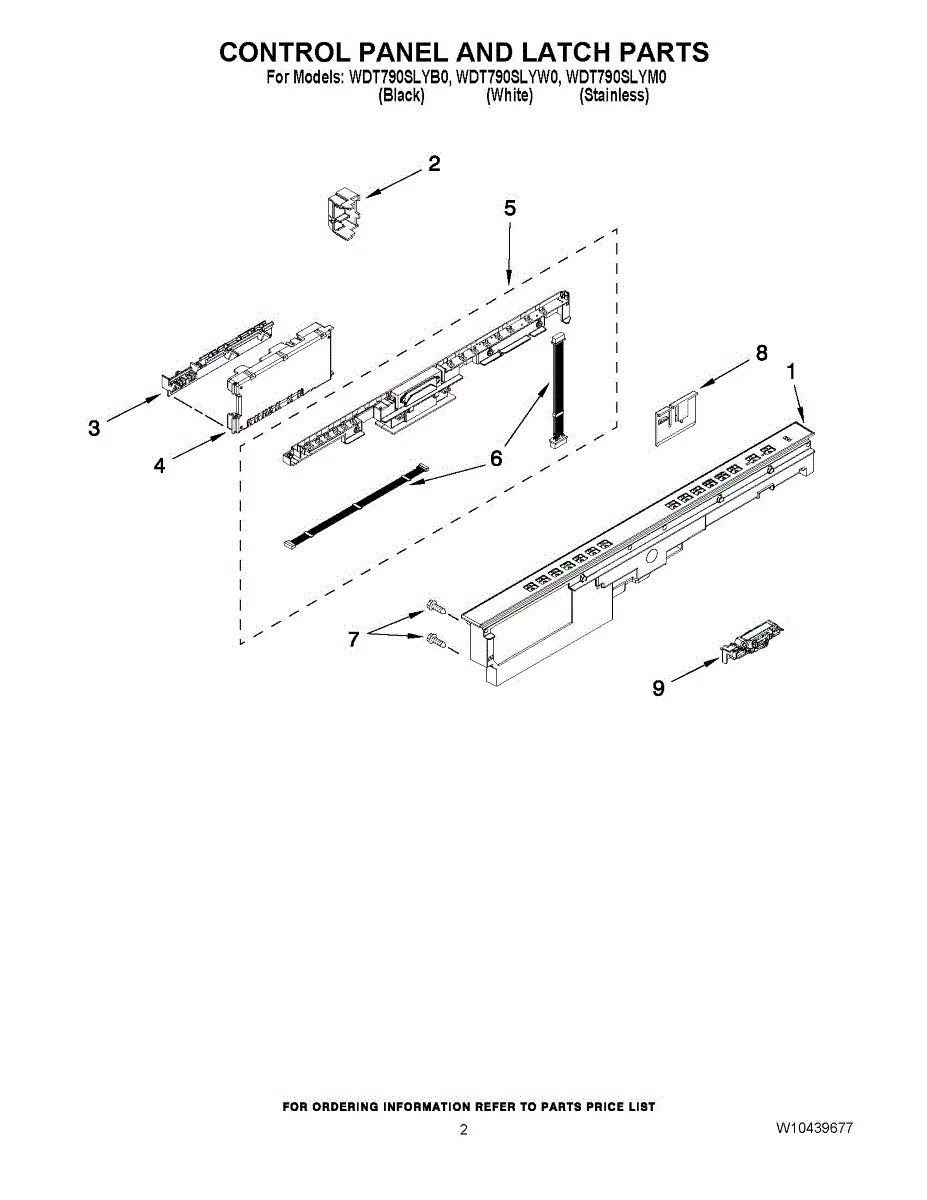

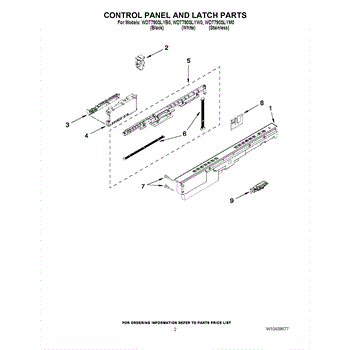

Parts for Whirlpool WDT790SLYB0: 02 - Control Panel And Latch Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This console assembly is the main control panel for your appliance, replacing a damaged or unresponsive user interface so you can restore display readouts and button/control function. Installs in place of the original console to return normal operation. What it does:

• Houses the control buttons and display used to select cycles and settings
• Replaces cracked, warped, or cosmetically damaged panels that affect use
• Restores response when touchpads or buttons fail or the display is blank or unreadable
• Provides the mounting surface and electrical interface for the main control board

• Disconnect power (unplug or shut off circuit breaker) before starting any repair
• Handle the panel and display carefully to avoid scratching or damaging connectors
• Typical replacement requires removal of the appliance top or front console screws; keep fasteners organized

This connector links mating components within the appliance to create a secure, reliable connection. Replacing a cracked or loose connector helps restore consistent operation and prevent intermittent issues caused by poor contact or separation. What it does:

• Creates a stable connection between mating parts or harnesses in the appliance
• Helps prevent looseness or separation that can disrupt performance
• Direct replacement for broken, brittle, or deformed connectors
• Can resolve intermittent operation traced to a poor connection at this junction

• 1 connector

• Disconnect power and, if applicable, shut off water before servicing
• Note orientation and positions before removal to ensure correct reassembly
• Seat the connector fully until any locking features engage; do not force
• Inspect mating parts for wear or damage and replace if necessary

This brace connector secures a support brace inside the appliance to help keep internal panels and assemblies aligned and stable. Replacing a worn or damaged connector restores proper support and reduces noise and movement. What it does:

• Fastens and stabilizes an internal support brace or frame
• Prevents panel or assembly movement that can cause vibration or rattling
• Helps maintain proper alignment of connected components
• Replaces broken or corroded connector hardware to restore secure mounting

• One brace connector

• Disconnect power (and gas, if applicable) before starting any repair
• Access may require removing outer or control panels; save existing fasteners for reuse
• Use basic hand tools; avoid overtightening to prevent cracking plastic or bending metal
• Inspect and replace as needed

This electronic control board is the appliance's central controller. It interprets user inputs and sensor signals to power components at the right time, restoring reliable operation when the original board fails.

• Interprets user settings and manages cycle timing and temperature control
• Switches relays/outputs to run motors, heaters, valves, fans, and lights
• Interfaces with sensors and safety switches to protect the appliance
• Symptoms can include no display or response, won't start, cycles that won't advance, or erratic operation
• Logs diagnostic error codes to aid troubleshooting

• Disconnect power before servicing; follow ESD precautions and handle the board by the edges
• Access the control area, then note/photograph wiring and move connectors one at a time to the new board
• Mount securely, ensure no wires are pinched, reassemble, and restore power
• Run a diagnostic or test cycle to confirm normal operation

This user interface housing is the front console shell that holds and protects the control buttons and display, restoring the appliance's look and secure fit for the control components. What it does

• Secures the control board, buttons and display in the appliance console
• Protects electronics from light impact, dust and everyday wear
• Restores proper button alignment and front-panel fit and finish
• Helps resolve issues caused by cracked, warped or broken console housing

• One user interface (UI) housing / front console housing

• Disconnect power to the appliance before starting any repair
• Removal typically requires detaching the console and transferring the display, buttons and any mounting clips to the new housing
• Handle with care to avoid scratching the finish or damaging snap clips and wiring

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This insulated wire lead carries electrical current between components, restoring reliable power routing in your appliance. It's a direct-replacement discrete wire used where a single conductor is required for safe operation. What it does:

• Provides a single insulated conductor to connect terminals or components
• Restores proper electrical continuity when a wire is damaged, burned, or disconnected
• Helps prevent shorts by maintaining insulation between conductors
• Suitable for low- to moderate-current wiring routes within the appliance

• One insulated wire lead as shown

• Disconnect power before inspecting or replacing wiring to avoid shock or injury
• Route the wire as the original, avoiding sharp edges and heat sources; secure with existing clips or ties
• Replace any damaged terminals, connectors, or fasteners; use correct crimps or solder joints per OEM practice

This small retaining clip secures trim and appliance components to keep panels and assemblies in place, helping prevent rattling and loose parts during use. It's a simple replacement that restores proper fit and alignment. What it does:

• Holds panels, trim, or small assemblies in place to maintain a secure fit
• Prevents rattling, vibration noise, and movement of loose parts
• Replaces broken, bent, or missing clips that allow gaps or misalignment
• Works where a small fastener is needed to secure plastic or metal components

• Disconnect power or unplug the appliance before servicing to avoid shock or injury
• Inspect the mounting area for damage; replace any broken mating tabs or screws for a secure fit
• Installation typically requires basic hand tools such as pliers or a screwdriver; apply steady pressure to snap clip into place

The Door Latch Assembly is an OEM part for Whirlpool dishwashers. It ensures a secure latch and seal for the dishwasher door during operation.

Causes of a bad dishwasher door latch assembly can include worn-out or broken latch components, damaged or malfunctioning door switches, or misalignment of the latch mechanism.

Symptoms of a bad Dishwasher Door Latch Assembly include:

• Difficulty in closing or latching the dishwasher door
• The dishwasher not starting or running when the door is closed
• Leaks or water spills around the door area
• Inconsistent or intermittent operation of the dishwasher

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
