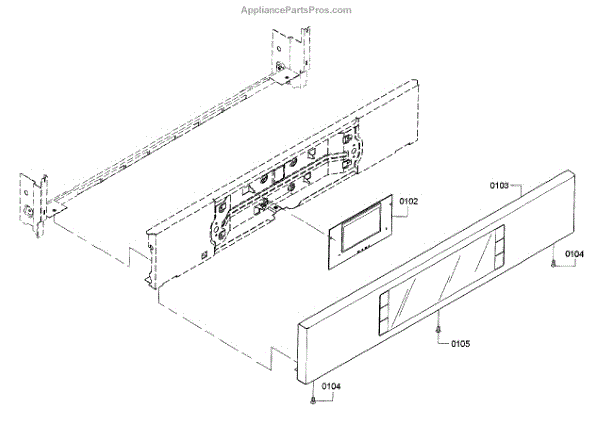

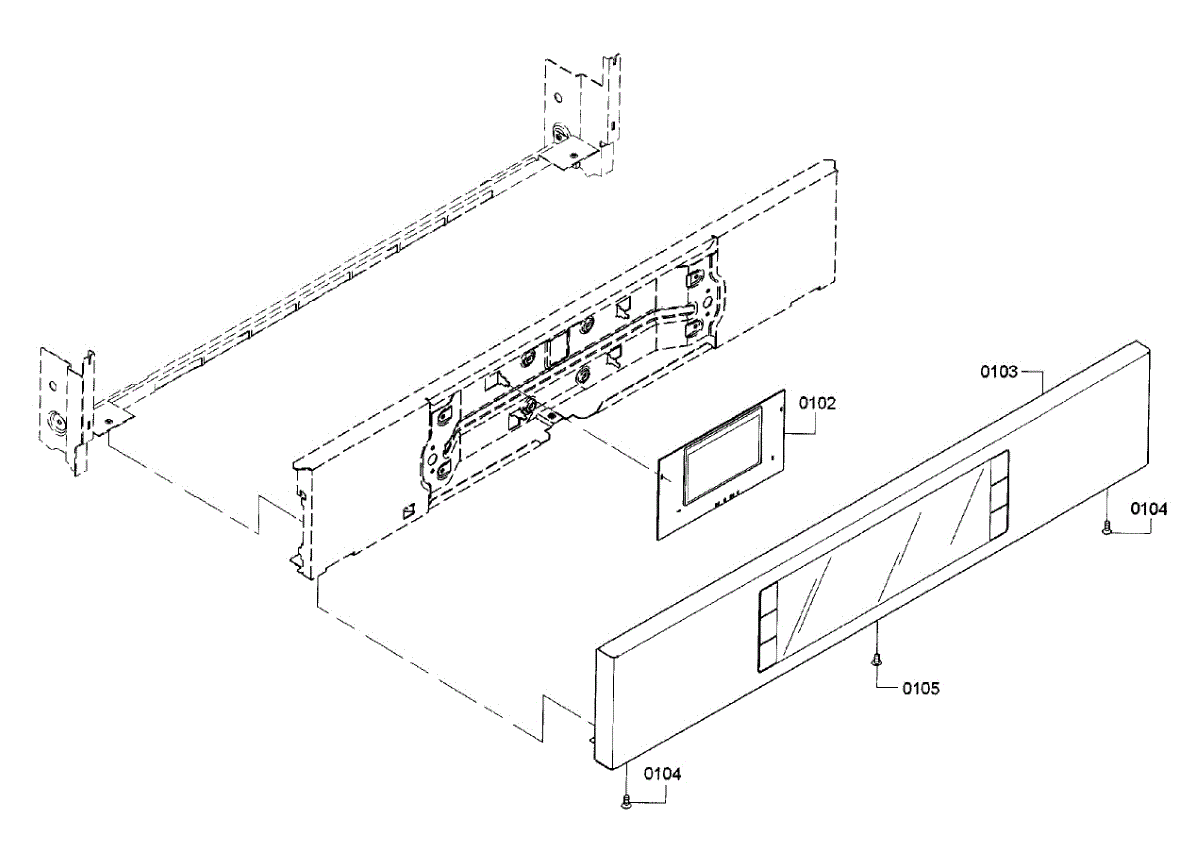

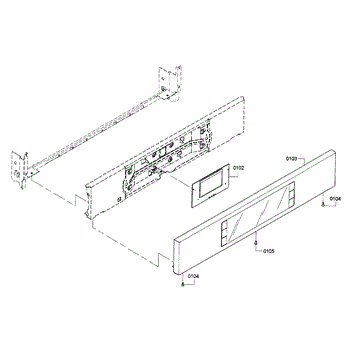

Parts for Bosch HBLP451UC/01: Control Panel Parts

This display module is the electronic board behind the control panel that provides the readout for settings, alerts, and status. Replacing a failed module restores a clear, dependable display so you can monitor and operate the appliance correctly. What it does:

• Drives the LED/LCD indicators and digital readout on the control panel
• Communicates with the main control to show selected options, progress, and fault codes
• Helps restore normal visibility of settings and status information
• Common symptoms of failure: blank or dim screen, missing segments/characters, scrambled or flickering readout, display frozen or not updating

• Includes: 1 display module

• Disconnect power at the breaker before servicing to avoid electrical shock
• Use ESD protection and handle the board by the edges to prevent static damage
• Note connector orientation; move any original mounting hardware/trim as required and seat all harnesses fully
• After reassembly, restore power and run any model-specific diagnostic or self-test as directed by the service documentation

This facia panel replaces a damaged or worn control-panel front to restore the appliance's appearance and protect underlying controls. It provides the visible front surface that buttons and displays sit behind for a finished look. What it does:

• Covers and protects control buttons, displays, and underlying electronics from spills and debris
• Restores the appliance's original appearance when the front panel is cracked, scratched, or faded
• Keeps control labels and button openings aligned for proper user operation
• Helps prevent moisture or grime from reaching internal components around the control area

• Disconnect power to the appliance before beginning any work to prevent shock or injury
• Removal typically requires accessing the control area; keep screws and small parts organized for reassembly
• Handle the new panel carefully to avoid damaging finishes or mounting tabs

This is a replacement mounting screw used to secure appliance panels and components. It restores proper fit and prevents rattling or loose parts so the appliance operates quietly and safely. What it does:

• Secures panels, brackets, or components to the appliance frame
• Prevents vibration-related noise and loose-fitting parts
• Replaces missing or damaged screws that can cause misalignment
• Helps maintain safe cabinet and component attachment during operation

• Use the matching screw hole and thread orientation; do not force if fit is not smooth
• Tighten until snug—avoid over-tightening to prevent stripping or damage
• Disconnect power and follow appliance-specific safety procedures before servicing
• Inspect surrounding fasteners and mounts for wear
