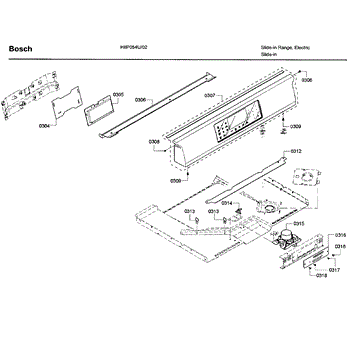

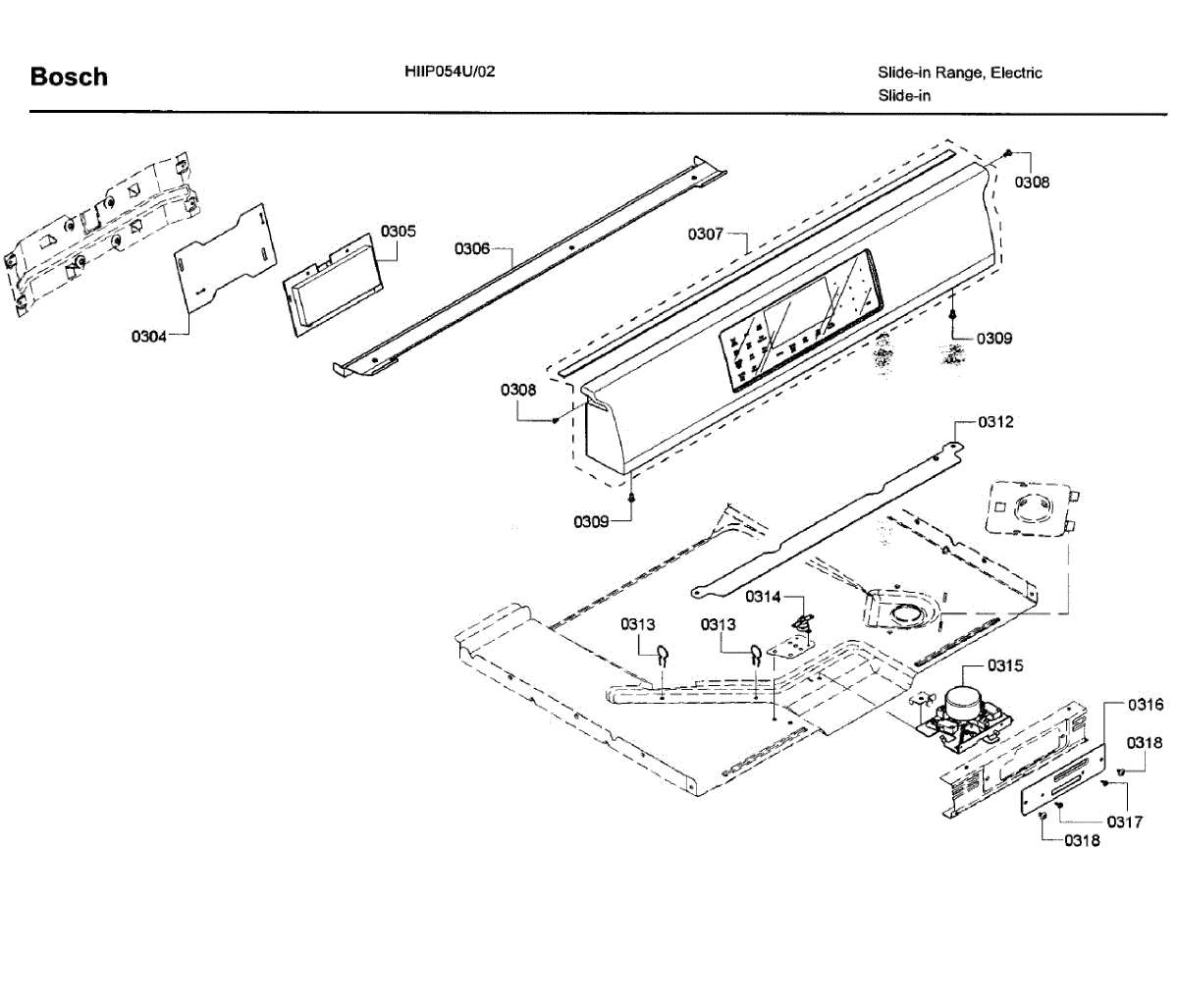

Parts for Bosch HIIP054U/02: Control Panel Parts

The Display Module is an OEM component specifically designed for Bosch built-in ovens. It contains an electronic display and control board that allows users to program cooking modes, set temperatures, monitor time remaining, and receive feedback on oven status.

Causes of a bad display module can include liquid damage, impact damage that has caused the internal component failure, or wear over many years of use.

Symptoms of a bad display module include:

• Blank or unresponsive display screen
• Inability to change oven functions
• Fault codes appearing
• Dimmed or flickering display lights

This replacement module is also compatible with Thermador, Gaggenau, and Kobeland Wolf built-in oven ranges.

This is a small mounting screw used to secure panels and components in compatible Bosch appliances. It replaces a lost or worn fastener to restore a secure fit and reduce rattling or loose parts. What it does:

• Secures panels, brackets, or internal components in place
• Stops rattling and vibration caused by loose or missing screws
• Helps restore proper alignment of mounted parts
• Matches OEM fit and function for the listed part number

• Disconnect power and water supply before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten snugly but do not overtighten to prevent stripping or damaging the mating threads
• Keep small parts away from children and dispose of packaging responsibly

This temperature limiter is a safety thermostat that monitors heat and opens the circuit when temperatures exceed safe limits. It helps protect internal components by preventing overheating and unintended damage during operation. What it does:

• Monitors appliance temperature and interrupts power to the heater if excessive heat is detected
• Helps prevent overheating-related damage and safety hazards
• Common failure signs include no heat, intermittent heat, or the unit shutting off prematurely
• Tests open for continuity when tripped or failed

• 1 temperature limiter

• Disconnect power at the breaker and allow the appliance to cool completely
• Note wire locations and transfer one lead at a time to the new limiter
• Reinstall in the original position so the sensor makes proper contact as designed
• Inspect/replace any heat-damaged terminals; test operation after reassembly

The Door Latch is an OEM part for Bosch wall ovens and ranges. It secures the oven door safely closed during baking and broiling. As an essential component for safety, the latch allows controlled access to the cooking cavity while preventing accidental openings.

Causes can be wear from constant use, damage from impact, or deterioration of latch parts over time.

Symptoms of a faulty latch include:

• The door popping or swinging open during use
• Difficulty closing or fully engaging the latch mechanism
• Looseness around the door seal compromising heat retention

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This cable harness routes electrical signals between dishwasher components to restore proper control and power delivery. It replaces a damaged or broken wiring assembly so affected circuits can communicate and operate reliably. What it does:

• Connects control board, sensors, pumps and other internal components to carry power and signals
• Restores intermittent or lost power to specific assemblies caused by frayed or broken wires
• Helps eliminate error codes or failures tied to open or shorted harness connections
• Prevents arcing and poor connections that can cause unreliable operation

• One cable harness assembly as pictured

• Only install after disconnecting power to the appliance to avoid shock or damage
• Inspect mating connectors and pins for corrosion or damage before connecting
• Route harness away from sharp edges, moving parts and hot surfaces to avoid future wear

This cable harness routes power and signals between the appliance's control and its electrical components, restoring proper connections for reliable operation. It replaces a damaged or worn wiring harness to help resolve electrical faults and intermittent power. What it does:

• Links control board, motor, sensors and other electrical components so signals and power flow correctly.
• Common symptom: appliance won't power on or displays intermittent operation.
• Common symptom: flickering lights, erratic cycles, or component failures tied to loose or broken wires.
• Helps prevent short circuits caused by frayed wiring when installed as a direct replacement.

• Disconnect power (unplug or shut off circuit breaker) before starting any repair.
• Handle connectors carefully; release locking tabs before pulling to avoid damage.
• Route and secure the harness following OEM clips and channels to prevent chafing or pinching.

A single electrical replacement lead that restores a broken or damaged connection inside your appliance, allowing a circuit or component to regain reliable power and operation. What it does:

• Carries electrical current between components to complete appliance circuits
• Replaces frayed, cut, or burnt wiring that causes intermittent power or failure
• Helps stop arcing, sparks, or loose-connection symptoms when installed correctly
• Restores a specific circuit path so affected features or a component can function again

• Disconnect power to the appliance before inspecting or replacing wiring
• Match the wire routing, length, and terminal connections exactly to the original
• Use correct crimping or soldering and proper insulation to prevent shorts
