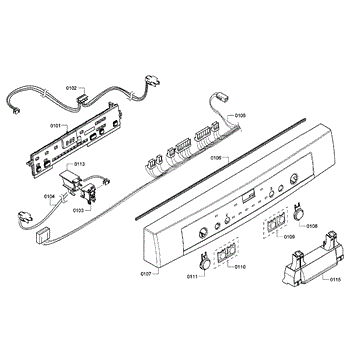

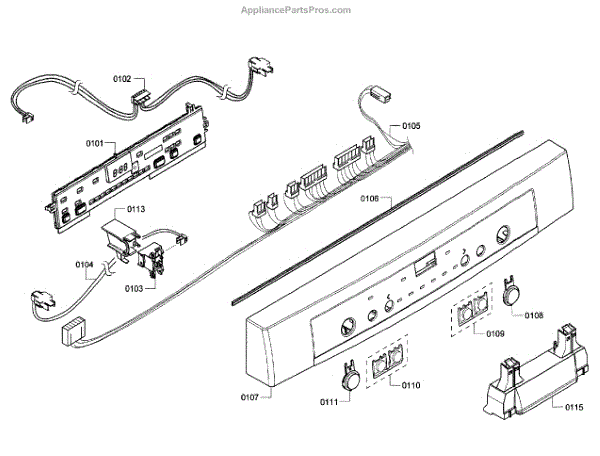

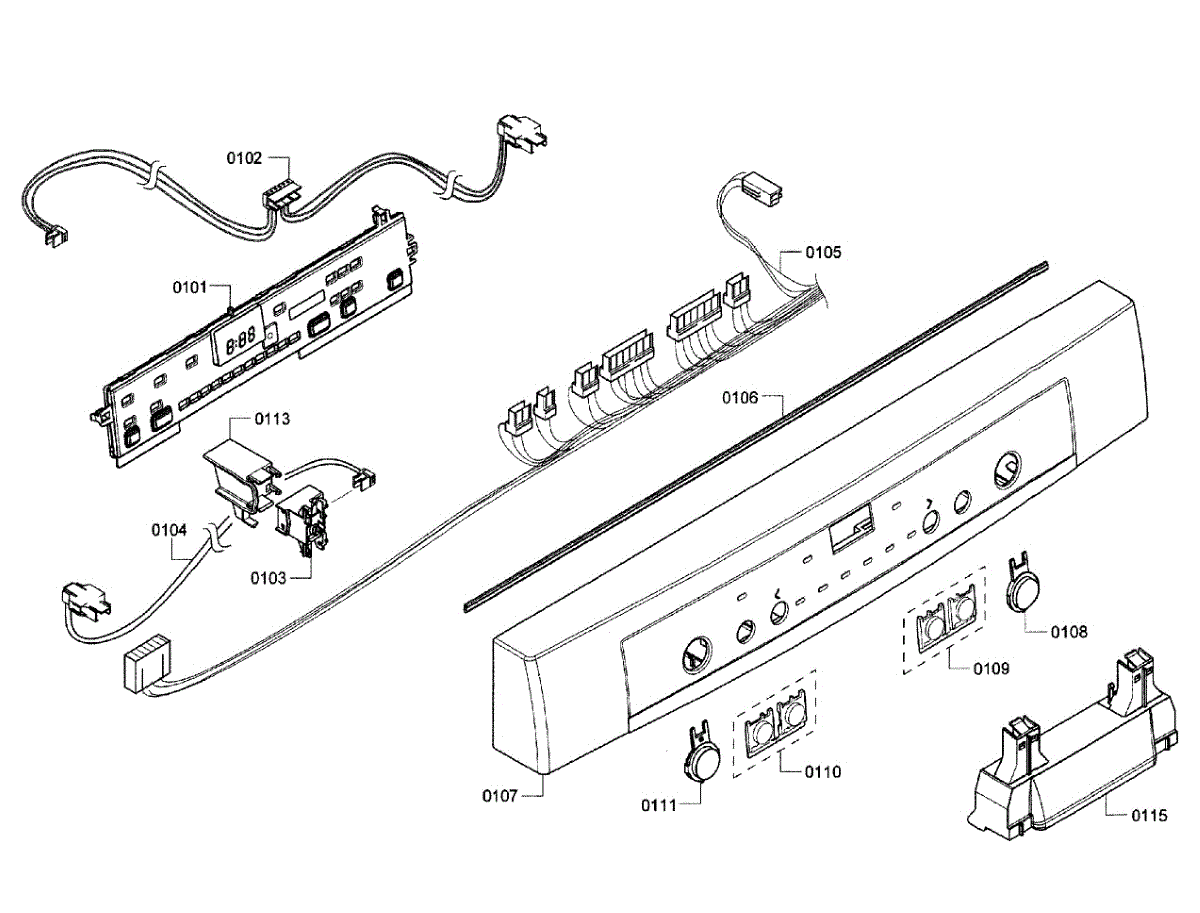

Parts for Bosch SHE3AR72UC/14: Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The control unit is the appliance's main electronic control board. It manages cycle timing and directs power to key components, helping the machine start, run, and complete programs as designed.

• Governs program logic and timing for each cycle
• Distributes power to components such as pumps, valves, motors, and heaters
• Interfaces with sensors and the door latch to advance or pause operation
• Helps regulate heating and drying functions where applicable
• Common failure symptoms: won't start, won't advance or complete a cycle, stops mid-cycle, no fill or no drain, or erratic operation

• Disconnect power at the breaker (and shut off water supply if accessing a dishwasher) before servicing
• Access location varies by model; refer to your unit's tech sheet
• Use ESD protection; handle the board by edges and transfer connectors one at a time
• After installation, restore power and run any model-specific diagnostic/service test to verify operation

The Wire Harness is an OEM component specifically designed for select Bosch dishwashers requiring electrical connections between moving components. It facilitates signal and current pathways throughout appliance frames.

Reinforced flexing sections bend without kinks accommodating shifting door movements. While connector joints remain snug against jostling. This daisy chain design simplifies diagnostics and maintenance procedures compared to individual wiring.

Symptoms signaling the need for a new harness include:

• Intermittent cycle malfunctions indicating loose or corroded connections
• Broken or cracked housing exposing live conductors to shorting hazards
• Overly taut sections hindering the intended range of component motions

Causes relate to prolonged abrasion stresses and water damage compromising insulation throughout thousands of cycles. Physical damage during repairs may require a complete replacement of this integral wiring backbone.

This OEM Bosch replacement harness is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers relying on consistent control schemes. Reinstallation restores reliable electrical pathways.


The On/Off Switch is an OEM part for Bosch dishwashers. It is responsible for controlling the power to the dishwasher, allowing the user to turn the appliance on and off as needed.

Causes of a bad On/Off switch can include electrical malfunctions due to worn-out contacts, damage from moisture exposure, or general wear and tear over time.

Symptoms of a bad On/Off switch include:

• Dishwasher not turning on
• Inconsistent power to the dishwasher
• Difficulty in turning the dishwasher off
• The switch feeling loose or unresponsive

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Wire Harness is an OEM component specifically designed for select Bosch dishwashers requiring electrical connections between moving components. It facilitates signal and current pathways throughout appliance frames.

Reinforced flexing sections bend without kinks accommodating shifting door movements. While connector joints remain snug against jostling. This daisy chain design simplifies diagnostics and maintenance procedures compared to individual wiring.

Symptoms signaling the need for a new harness include:

• Intermittent cycle malfunctions indicating loose or corroded connections
• Broken or cracked housing exposing live conductors to shorting hazards
• Overly taut sections hindering the intended range of component motions

Causes relate to prolonged abrasion stresses and water damage compromising insulation throughout thousands of cycles. Physical damage during repairs may require a complete replacement of this integral wiring backbone.

This OEM Bosch replacement harness is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers relying on consistent control schemes. Reinstallation restores reliable electrical pathways.


This seal creates a tight, leak-proof interface between mating components inside your appliance. Replacing a worn seal helps stop drips and protects nearby parts for reliable, leak-free operation.

• Forms a watertight barrier between connected parts
• Replaces cracked, flattened, or deformed sealing material that can leak
• Helps address puddling, dampness, or seepage around the unit
• Maintains proper performance and helps prevent water damage to surrounding components

• Disconnect power and shut off the water supply before servicing
• Access the sealed joint and note the original orientation and seating depth
• Clean mating surfaces; do not use sealants unless specified by the manufacturer
• Seat the new seal evenly; lightly lubricate with a water-safe lubricant and run a test cycle to check for leaks

This fascia panel is the cosmetic and structural front for the control console. It refreshes the appearance and helps keep buttons and indicators properly aligned when the original panel is cracked, warped, or has broken tabs.

• Provides the finished front trim for the control console
• Aligns and supports control buttons/switches and labels
• Shields underlying user-interface components from incidental contact
• Replace if the panel is cracked, loose, rattling, or controls feel misaligned

• Disconnect power to the appliance before servicing
• Access the console area; note screw/clip locations and take photos during disassembly
• Transfer any nameplates, brackets, and hardware from the old panel to the new one as required
• Handle any connected wiring or ribbon cables with care to avoid damage; reassemble and test operation

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This button replaces a worn or missing pushbutton on the appliance's control panel. It restores a positive, reliable feel when selecting settings and ensures your press properly actuates the underlying switch.

• Serves as the fingertip interface on the control console
• Transfers your press to the user interface/microswitch behind the panel
• Helps restore proper selection and start/stop response
• Typical symptoms: cracked or missing cap, sticking button, loose fit, or presses that don't register

• Disconnect power before servicing
• Remove the console/control panel to access the old button
• Note orientation; release retaining tabs and install the new button fully seated
• Reassemble the panel and test all button functions

This replacement push button restores a crisp, reliable press at your appliance's controls so you can select settings as intended. It replaces a damaged or missing button that no longer operates the underlying switch.

• Provides the physical input you press to actuate the switch behind the control panel
• Symptoms can include a cracked, missing, sticky, or sunken button
• Restores proper travel and feel at the user interface

• Disconnect power to the appliance before servicing
• Access the control panel/fascia to reach the button per your model's procedure
• Release retaining clips/tabs or screws and install the new button in the same orientation
• Reassemble and test each control for proper operation

This support is a structural mounting bracket designed to secure internal components and reduce movement, helping restore proper fit and reduce vibration or noise in the appliance. What it does

• Secures internal assemblies to the appliance frame to keep parts aligned
• Dampens movement that can cause rattling or intermittent contact
• Helps prevent misalignment-related wear or looseness of connected parts
• Reduces vibration-related noise when a worn or broken support is replaced

• One support (mounting bracket) as shown

• Disconnect power and water (if applicable) before servicing
• Installation requires basic hand tools; handle bracket edges carefully
• Keep fasteners and orientation the same as the original for proper fit

White tray handle that restores a secure grip and smooth operation to your appliance's tray. Direct-fit replacement that matches the original handle's mounting points for an easy, reliable swap-out. What it does:

• Provides a secure grip for pulling out and pushing in the appliance tray.
• Stabilizes the tray to help prevent tipping or accidental drops when loaded.
• Addresses symptoms like cracked, broken, loose, or missing handle that make the tray hard to open.
• Matches the original shape and mounting locations for proper fit and function.

• Disconnect power at the breaker or unplug the appliance before working near electrical components.
• Remove the tray or rack as needed to access mounting screws or clips; retain original hardware unless replacement hardware is specified.
• Align the handle with the mounting points and secure using the existing screws/clips; avoid over-tightening to prevent damage.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
