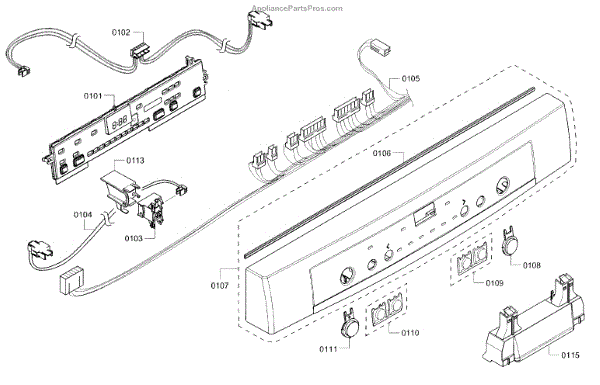

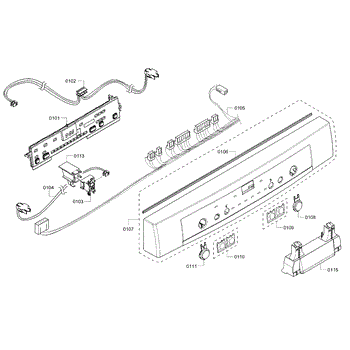

Parts for Bosch SHE3AR76UC/21: Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The control unit is the appliance's main electronic control board. It manages cycle timing and directs power to key components, helping the machine start, run, and complete programs as designed.

• Governs program logic and timing for each cycle
• Distributes power to components such as pumps, valves, motors, and heaters
• Interfaces with sensors and the door latch to advance or pause operation
• Helps regulate heating and drying functions where applicable
• Common failure symptoms: won't start, won't advance or complete a cycle, stops mid-cycle, no fill or no drain, or erratic operation

• Disconnect power at the breaker (and shut off water supply if accessing a dishwasher) before servicing
• Access location varies by model; refer to your unit's tech sheet
• Use ESD protection; handle the board by edges and transfer connectors one at a time
• After installation, restore power and run any model-specific diagnostic/service test to verify operation

The Wire Harness is an OEM component specifically designed for select Bosch dishwashers requiring electrical connections between moving components. It facilitates signal and current pathways throughout appliance frames.

Reinforced flexing sections bend without kinks accommodating shifting door movements. While connector joints remain snug against jostling. This daisy chain design simplifies diagnostics and maintenance procedures compared to individual wiring.

Symptoms signaling the need for a new harness include:

• Intermittent cycle malfunctions indicating loose or corroded connections
• Broken or cracked housing exposing live conductors to shorting hazards
• Overly taut sections hindering the intended range of component motions

Causes relate to prolonged abrasion stresses and water damage compromising insulation throughout thousands of cycles. Physical damage during repairs may require a complete replacement of this integral wiring backbone.

This OEM Bosch replacement harness is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers relying on consistent control schemes. Reinstallation restores reliable electrical pathways.


The On/Off Switch is an OEM part for Bosch dishwashers. It is responsible for controlling the power to the dishwasher, allowing the user to turn the appliance on and off as needed.

Causes of a bad On/Off switch can include electrical malfunctions due to worn-out contacts, damage from moisture exposure, or general wear and tear over time.

Symptoms of a bad On/Off switch include:

• Dishwasher not turning on
• Inconsistent power to the dishwasher
• Difficulty in turning the dishwasher off
• The switch feeling loose or unresponsive

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Wire Harness is an OEM component specifically designed for select Bosch dishwashers requiring electrical connections between moving components. It facilitates signal and current pathways throughout appliance frames.

Reinforced flexing sections bend without kinks accommodating shifting door movements. While connector joints remain snug against jostling. This daisy chain design simplifies diagnostics and maintenance procedures compared to individual wiring.

Symptoms signaling the need for a new harness include:

• Intermittent cycle malfunctions indicating loose or corroded connections
• Broken or cracked housing exposing live conductors to shorting hazards
• Overly taut sections hindering the intended range of component motions

Causes relate to prolonged abrasion stresses and water damage compromising insulation throughout thousands of cycles. Physical damage during repairs may require a complete replacement of this integral wiring backbone.

This OEM Bosch replacement harness is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers relying on consistent control schemes. Reinstallation restores reliable electrical pathways.


This seal creates a tight, leak-proof interface between mating components inside your appliance. Replacing a worn seal helps stop drips and protects nearby parts for reliable, leak-free operation.

• Forms a watertight barrier between connected parts
• Replaces cracked, flattened, or deformed sealing material that can leak
• Helps address puddling, dampness, or seepage around the unit
• Maintains proper performance and helps prevent water damage to surrounding components

• Disconnect power and shut off the water supply before servicing
• Access the sealed joint and note the original orientation and seating depth
• Clean mating surfaces; do not use sealants unless specified by the manufacturer
• Seat the new seal evenly; lightly lubricate with a water-safe lubricant and run a test cycle to check for leaks

The Dishwasher Control Panel Facia is an OEM replacement part designed specifically for Bosch dishwashers. It serves as the interface to control all wash cycles and provides informative displays. Causes of a damaged control panel facia can be general wear and tear over time.

Symptoms of a bad control panel facia include:

• Non-responsive buttons
• Cracked or broken surfaces
• Controls that do not align properly

This genuine Bosch facia restores the correct function and appearance of the control panel. This Bosch part can also be used on Thermador and Gaggenau appliances.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This start button is the user-pressed cap on the control panel that engages the underlying switch to begin a cycle. Replace it to restore proper feel and reliable operation when the original button is cracked, loose, or missing.

• Serves as the Start control on the user interface
• Transfers your press to the control's start switch to initiate a cycle
• Helps address a broken, sticking, or missing start key
• Restores alignment and tactile feedback at the control panel

• Disconnect power to the appliance before servicing.
• Open or remove the control panel/fascia to access the button.
• Release retaining tabs/clips and remove the old button; transfer any small clips/springs from the original if present.
• Align and snap the new button into place, reassemble, and test operation.

The Button is an OEM part for Bosch dishwashers. It makes up an individual selection button on the control panel.

Causes of a bad button can include cracked or worn lettering from repeated pressing over time. Continuous use puts pressure on button surfaces.

Symptoms of a bad button include:

• Failure to register presses or inaccurate response from the control board
• Looseness, wiggle or detachment issues with the button itself
• Faded, scratched or unreadable labels to identify settings

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Button is an OEM part specifically designed for touch control interfaces on Bosch dishwashers. Comprising replacement buttons and membranes, it facilitates an intuitive selection of cycles and options. Working precisely behind lighted displays, the button kit provides customized care for every load.

Symptoms of faulty buttons include:

• Failure to register inputs or select desired programs
• Stuck buttons refusing some commands altogether
• Peeling or degradation diminishes legibility over time

Causes relate to general wear sustained through continuous use over many years. Minor spills or moisture seepage may also degrade adhesive bonding beneath plastic surfaces.

This genuine Bosch replacement restores a like-new interface for dependable touch control. Compatible also with Siemens, Gaggenau plus most Asko dishwashers.

The On/Off Button is an OEM part for Bosch dishwashers. It provides the user interface for starting and stopping dishwasher cycles as needed. Reliable button function is crucial for convenient appliance operation.

Causes of a faulty on/off button include standard wear over heavy use cycles, liquid damage, or occasional impact. Periodic cleaning helps prevent common issues.

Symptoms of a bad on/off button include:

• Button sticking or failing to depress fully
• Inconsistent or unreliable response to user input
• Starting cycles without being pressed
• No response at all when trying to turn on the unit

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This support is a structural mounting bracket designed to secure internal components and reduce movement, helping restore proper fit and reduce vibration or noise in the appliance. What it does

• Secures internal assemblies to the appliance frame to keep parts aligned
• Dampens movement that can cause rattling or intermittent contact
• Helps prevent misalignment-related wear or looseness of connected parts
• Reduces vibration-related noise when a worn or broken support is replaced

• One support (mounting bracket) as shown

• Disconnect power and water (if applicable) before servicing
• Installation requires basic hand tools; handle bracket edges carefully
• Keep fasteners and orientation the same as the original for proper fit

White tray handle that restores a secure grip and smooth operation to your appliance's tray. Direct-fit replacement that matches the original handle's mounting points for an easy, reliable swap-out. What it does:

• Provides a secure grip for pulling out and pushing in the appliance tray.
• Stabilizes the tray to help prevent tipping or accidental drops when loaded.
• Addresses symptoms like cracked, broken, loose, or missing handle that make the tray hard to open.
• Matches the original shape and mounting locations for proper fit and function.

• Disconnect power at the breaker or unplug the appliance before working near electrical components.
• Remove the tray or rack as needed to access mounting screws or clips; retain original hardware unless replacement hardware is specified.
• Align the handle with the mounting points and secure using the existing screws/clips; avoid over-tightening to prevent damage.
