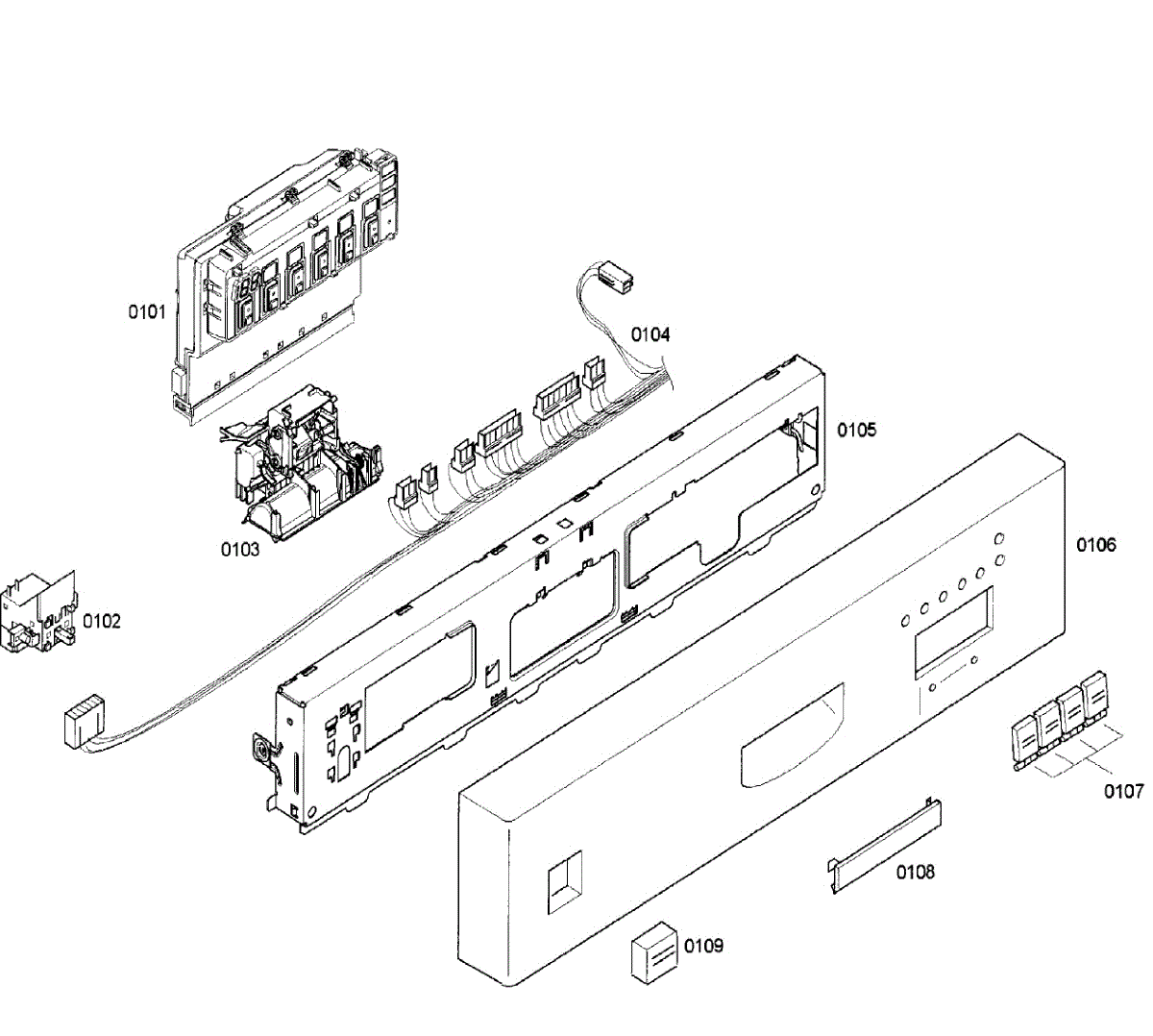

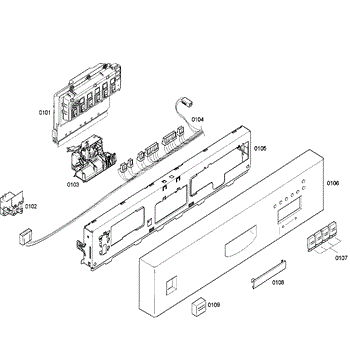

Parts for Bosch SHU43C02UC/46: Control Panel Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replacement control unit that manages the appliance's electronic functions, handling cycle timing, user inputs, and control signals to restore normal operation. Fits where the original electronic control board controls cycles and the user interface. What it does:

• Serves as the appliance's primary electronic control board, processing button/keypad commands and sequencing cycles.
• Controls cycle timing, relays, and signals to motors, valves, and heaters.
• Common symptoms of a failing unit: unresponsive controls, cycles won't start or advance, or intermittent operation.
• Does not include peripheral components such as face panels, knobs, or separate display overlays.

• Always disconnect power to the appliance before starting work to avoid shock or damage.
• Handle the board by its edges and avoid touching circuits; wear an anti-static wrist strap if available.
• Verify connector orientation and seat all wiring harnesses firmly; check harness routing before reassembly.

This cable harness routes power and signals between components to restore reliable electrical connections. Replacing a damaged harness helps stop intermittent operation and eliminates exposed or broken wiring that can cause component failures. What it does

• Reconnects power and control signals between appliance modules and components.
• Replaces damaged, frayed or burned wiring that can cause shorts or loss of function.
• Commonly fixes intermittent operation, components that do not power on, or complete failure of a circuit.
• Maintains correct wire routing and secure terminals for safe, reliable operation.

• Disconnect all power before starting work to avoid shock or injury.
• Compare the harness to the original and follow the OEM wiring diagram for correct routing and terminal locations.
• Securely seat all connectors and use proper strain reliefs; avoid pinching wires when reassembling panels.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replace your dishwasher's broken, cracked, or missing program button. Snaps into the control panel. Needed when tabs break or button falls out.

Color: White.

White on/off button for dishwasher control panel. Replace if button won't stay pressed in, has popped out, or is cracked, broken, or missing from panel.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
