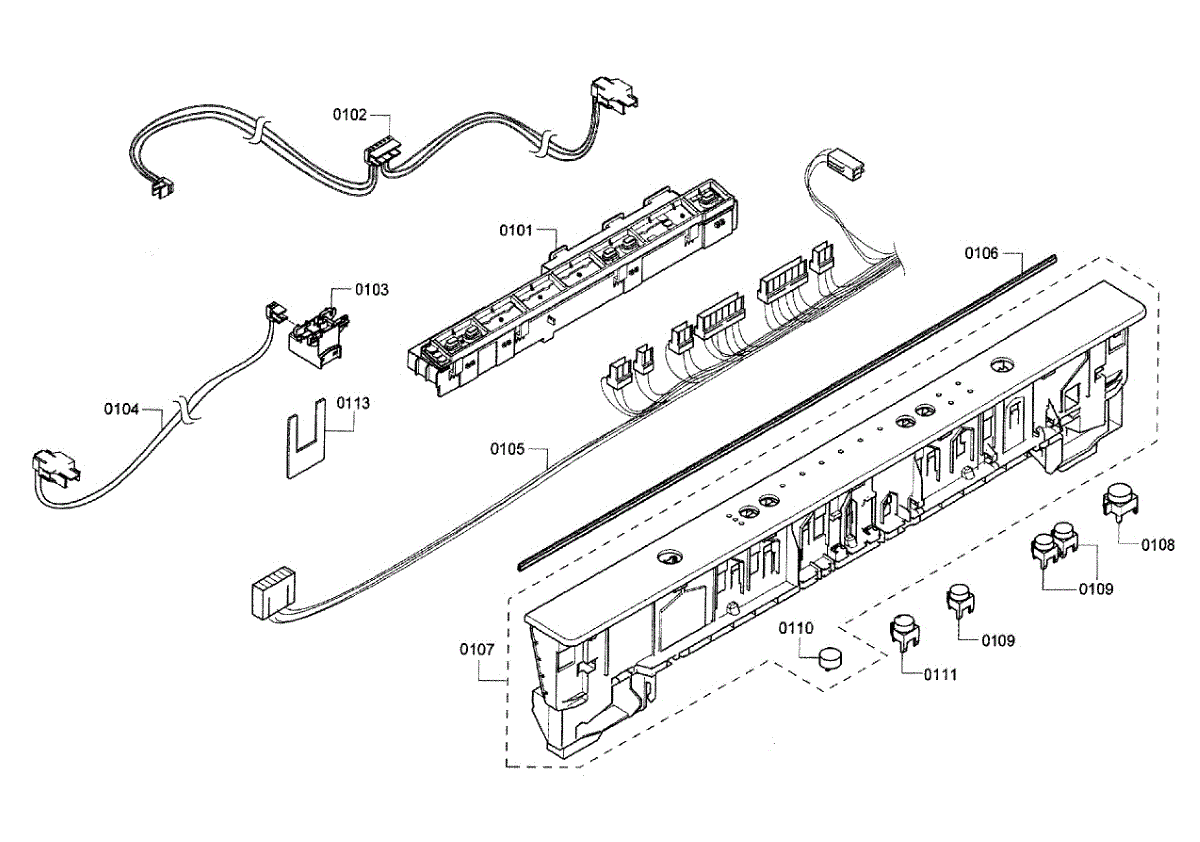

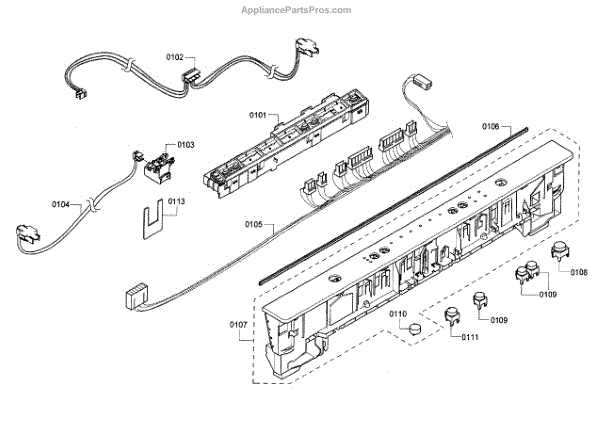

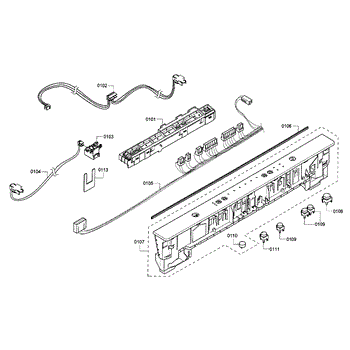

Parts for Bosch SHX3AR76UC/13: Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is a replacement electronic control unit that manages the appliance's cycles, user inputs, and system logic to restore proper operation when the original control fails. Use this board to recover responsive controls and consistent cycle operation. What it does:

• Routes user commands to the appliance motors, valves, and heaters so cycles start and run correctly
• Monitors basic signals and status inputs to coordinate timed operations and safety interlocks
• Powers and communicates with the display and touch controls; faults here can cause blank or unresponsive panels
• Common symptoms: appliance won't start, controls unresponsive, display errors or intermittent cycle failures

• Disconnect power (unplug or switch off breaker) before you open the appliance to avoid shock
• Handle the board by edges and avoid static discharge; use an anti-static strap if available
• The part number on the board matches the replacement before installing

The Wire Harness is an OEM component specifically designed for select Bosch dishwashers requiring electrical connections between moving components. It facilitates signal and current pathways throughout appliance frames.

Reinforced flexing sections bend without kinks accommodating shifting door movements. While connector joints remain snug against jostling. This daisy chain design simplifies diagnostics and maintenance procedures compared to individual wiring.

Symptoms signaling the need for a new harness include:

• Intermittent cycle malfunctions indicating loose or corroded connections
• Broken or cracked housing exposing live conductors to shorting hazards
• Overly taut sections hindering the intended range of component motions

Causes relate to prolonged abrasion stresses and water damage compromising insulation throughout thousands of cycles. Physical damage during repairs may require a complete replacement of this integral wiring backbone.

This OEM Bosch replacement harness is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers relying on consistent control schemes. Reinstallation restores reliable electrical pathways.


The On/Off Switch is an OEM part for Bosch dishwashers. It is responsible for controlling the power to the dishwasher, allowing the user to turn the appliance on and off as needed.

Causes of a bad On/Off switch can include electrical malfunctions due to worn-out contacts, damage from moisture exposure, or general wear and tear over time.

Symptoms of a bad On/Off switch include:

• Dishwasher not turning on
• Inconsistent power to the dishwasher
• Difficulty in turning the dishwasher off
• The switch feeling loose or unresponsive

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Wire Harness is an OEM component specifically designed for select Bosch dishwashers requiring electrical connections between moving components. It facilitates signal and current pathways throughout appliance frames.

Reinforced flexing sections bend without kinks accommodating shifting door movements. While connector joints remain snug against jostling. This daisy chain design simplifies diagnostics and maintenance procedures compared to individual wiring.

Symptoms signaling the need for a new harness include:

• Intermittent cycle malfunctions indicating loose or corroded connections
• Broken or cracked housing exposing live conductors to shorting hazards
• Overly taut sections hindering the intended range of component motions

Causes relate to prolonged abrasion stresses and water damage compromising insulation throughout thousands of cycles. Physical damage during repairs may require a complete replacement of this integral wiring backbone.

This OEM Bosch replacement harness is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers relying on consistent control schemes. Reinstallation restores reliable electrical pathways.


The Sealing is an OEM part for Bosch dishwashers. It serves as a protective barrier between the control panel and the internal components of the dishwasher, preventing moisture and dust from entering and causing damage.

A bad sealing can occur due to wear and tear, exposure to moisture, or accidental damage. Signs of a faulty sealing include water seeping into the control panel, visible cracks or gaps, or a loose fit.

Symptoms of a bad sealing include:

• Water or moisture around the control panel
• Visible cracks or gaps in the sealing
• A loose or ill-fitting seal

Replace your damaged or worn-out sealing with this genuine OEM Bosch part to restore your dishwasher. This Bosch part can also be used on Thermador and Gaggenau appliances.


The Control Facia is an OEM component specifically designed for Bosch dishwashers. It houses all of the control buttons, knobs, and electronic displays that allow for operation and cycle selection.

The control facia is responsible for the user interface, providing an intuitive way for users to start, pause, cancel, and select options for wash cycles. It incorporates durable membrane buttons and illuminated symbols for ease of use.

Symptoms of a bad control facia include:

• Non-responsive or stuck buttons
• Faded, worn, or damaged labels and symbols
• Electrical issues like flickering or non-working displays
• Missing mounting screws or loose fit that causes buttons to malfunction

Causes can include general wear and tear, repeated exposure to moisture during cleaning, or impacts that crack or distort the facia surface.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is a replacement push button for the appliance control panel that restores tactile operation for a worn or broken key. Installing the correct button returns a responsive, easy-to-use control surface. What it does:

• Replaces a damaged or missing control panel button so the corresponding function can be selected again
• Restores tactile feedback for reliable user input
• Helps fix symptoms such as a stuck, cracked, or non-responsive button on the control console
• Works as the external user-facing actuator — does not include internal switches

• One (1) replacement push button

• High-level replacement: remove the console or control panel trim to access the button; follow OEM disassembly steps
• Handle parts gently to avoid damaging tabs or clips; align button with its mounting posts before snapping into place
• Disconnect power to the appliance before starting work to avoid shock or accidental activation

This is a replacement push button for Bosch appliance control panels. It restores a missing, broken, or unresponsive button so you can select cycles and settings with a secure, tactile feel. What it does:

• Acts as the user-facing pushpiece that engages the underlying control switch
• Restores reliable button travel and tactile feedback when original button is cracked, stuck, or missing
• Helps resolve symptoms like buttons that won't depress, intermittent or no response from a control, or visible button damage
• Replaces cosmetically worn or discolored buttons to improve panel appearance

• Disconnect power (unplug or turn off breaker) before servicing the appliance
• Replacement typically snaps into the front control panel; panel removal may be required for access
• Handle gently and avoid forcing parts; ensure proper orientation before snapping into place

This is a replacement control panel push button that restores a missing, cracked, or worn button so you can operate the appliance's controls easily. Fits the front control panel and snaps into the button bezel. What it does

• Replaces a broken, loose, or missing push button on the appliance control panel
• Restores tactile feedback so the associated function responds when pressed
• Helps prevent debris from entering the control assembly through a damaged opening
• Works with the original button bezel and linkage when undamaged

• One control panel push button

• Disconnect power (and water if applicable) before accessing the control panel
• Remove the control panel or bezel as needed to access and snap the button into place
• Handle small plastic parts carefully to avoid breakage; inspect the bezel and linkage for damage

This is a replacement control push button that restores a missing, cracked or worn button on the appliance control panel for reliable selecting of settings. Durable plastic construction for repeated use. What it does:

• Replaces a damaged or missing push-style control button on the appliance console
• Provides a firm tactile response when selecting settings or cycles
• Helps stop issues caused by cracked, loose, or non-functional buttons
• Matches original fit where designed for the same console layout

• Disconnect power to the appliance before starting any repair
• Remove the console or panel per your model's service instructions to access the button
• Handle internal components gently to avoid damaging clips or wiring

This support is a replacement mounting bracket that secures internal components and helps maintain proper alignment. It restores stability and reliable operation after damage or wear to the original support. What it does:

• Provides structural support for internal assemblies to prevent sagging or misalignment
• Helps keep parts positioned correctly to reduce rubbing, noise, or binding
• Restores proper fit after a cracked or bent support causes operational issues
• Compatible with the appliance's factory mounting points for a direct-fit replacement

• Install with the appliance powered off and disconnected from the mains
• Use correct fasteners and torque to avoid stress or deformation of the support
• Inspect nearby components for damage and replace as needed while access is available
