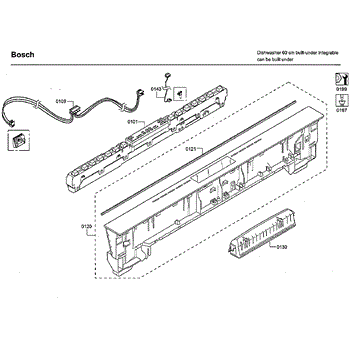

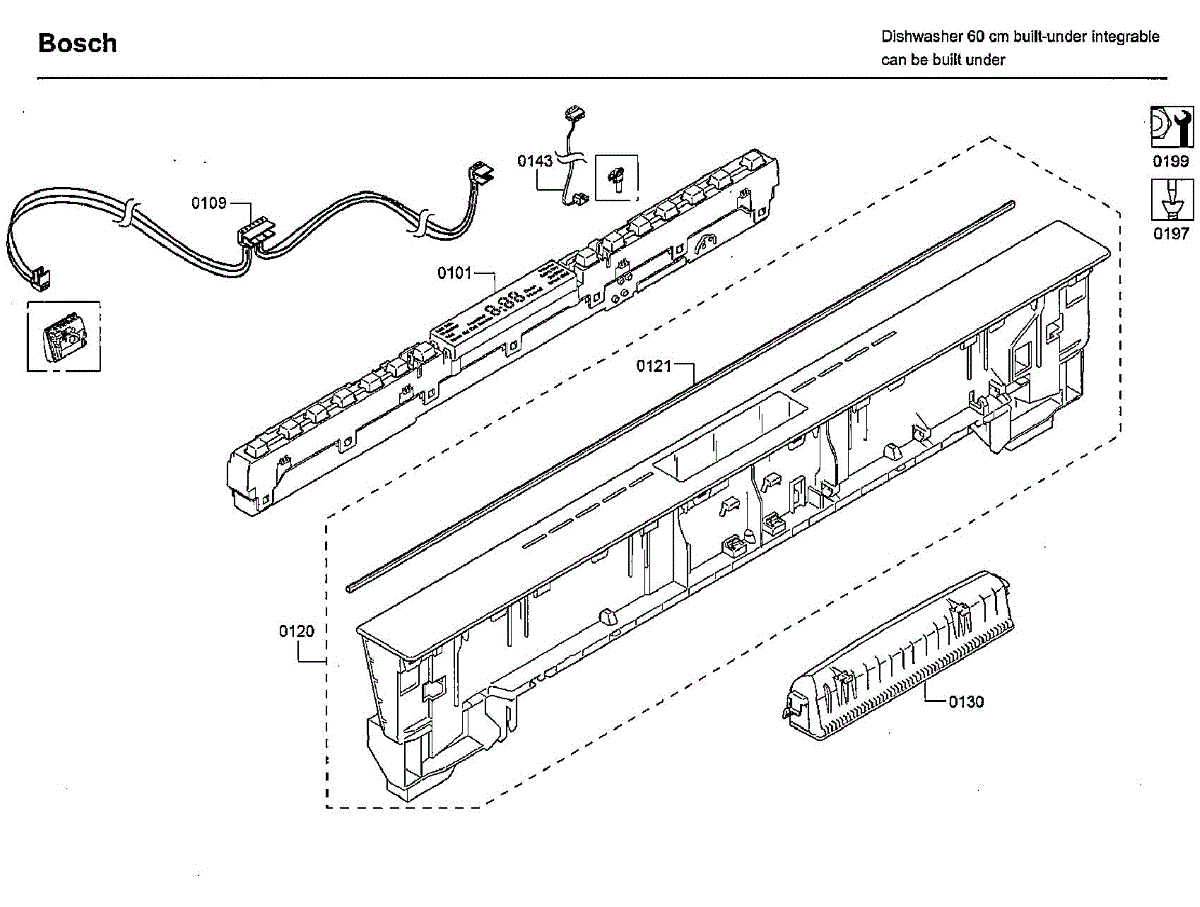

Parts for Bosch SHXM63WS5N/01: Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The operating module is an OEM replacement part for Bosch dishwashers. It is responsible for the user interface and program control functions. Over time, control boards can fail due to power surges, electrical shorts or water damage.

Symptoms of a faulty control board include:

• Buttons not responding
• Blank display
• Not starting

Replacing the defective board restores full functionality of the dishwasher controls. This OEM part is also compatible with Bosch, Thermador, Gaggenau and some Kenmore models.

The Wire Harness is an OEM part for Bosch dishwashers. As the central connection hub, it comprises the bundled wiring that routes electrical power and signals throughout the dishwasher. The wire harness is discreetly located behind panels to power critical components like heating elements, water valves, circulation pumps and control boards.

Causes of a bad wire harness include cracked insulation, broken wires or damaged terminals due to normal wear over time. Repeated vibration during cycles and heat exposure can degrade the internal wiring.

Symptoms of a bad wire harness include:

• Intermittent or complete power loss mid-cycle
• Lights, displays and functions failing to illuminate/operate
• Error codes appearing
• Resistance preventing components from activating

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This facia panel replaces the damaged or worn outer trim that covers and protects the appliance control area, restoring a clean, finished appearance and protecting internal controls from everyday wear. What it does:

• Covers and protects the control/display area from spills, scratches and cosmetic damage
• Restores a clean, factory-finish appearance to the appliance front or console
• Helps prevent dirt and moisture from reaching internal control components
• Addresses visible cracks, breaks or warped trim that affect appearance or function

• Disconnect power to the appliance before starting any work.
• Remove any screws or retainers holding the console or door trim per OEM instructions.
• Handle trim carefully to avoid scratching the new panel during installation.

The Sealing is an OEM part for Bosch dishwashers. It serves as a protective barrier between the control panel and the internal components of the dishwasher, preventing moisture and dust from entering and causing damage.

A bad sealing can occur due to wear and tear, exposure to moisture, or accidental damage. Signs of a faulty sealing include water seeping into the control panel, visible cracks or gaps, or a loose fit.

Symptoms of a bad sealing include:

• Water or moisture around the control panel
• Visible cracks or gaps in the sealing
• A loose or ill-fitting seal

Replace your damaged or worn-out sealing with this genuine OEM Bosch part to restore your dishwasher. This Bosch part can also be used on Thermador and Gaggenau appliances.


This replacement handle restores a secure, comfortable grip for opening and closing your appliance. Use it to replace a worn, loose, cracked, or missing handle and bring back the original look and everyday usability. What it does:

• Provides the handhold needed to open and close the door, drawer, or panel
• Attaches to the appliance panel using model-specific fasteners
• Helps maintain proper alignment and a clean, finished appearance
• Common symptoms: loose or wobbly handle, cracks/breaks, missing handle, difficulty opening

• 1 handle

• Disconnect power at the breaker and, if applicable, shut off water before servicing
• Access and remove the mounting fasteners from the opposite side of the panel/door; support the handle while removing
• Transfer and reuse the original screws, spacers, and end caps as required by your model
• Tighten fasteners evenly and avoid overtightening; verify smooth operation after reassembly

This cable harness routes power and signals between appliance control and components to restore reliable electrical connections. It replaces a damaged or worn harness to help eliminate intermittent operation and connectivity issues. What it does:

• Replaces the main wiring harness that links controls, sensors, and motors for proper electrical communication
• Restores reliable power and signal paths to correct intermittent power, non-responsive controls, or components that won't run
• Ensures secure connector mating to prevent arcing and poor contact
• Matches OEM connector types and wire lengths to fit in the original routing

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock
• Compare the new harness to the old one for connector types and routing before installation
• Handle connectors by the housings; do not pull on wires. Ensure all plugs snap fully into place
