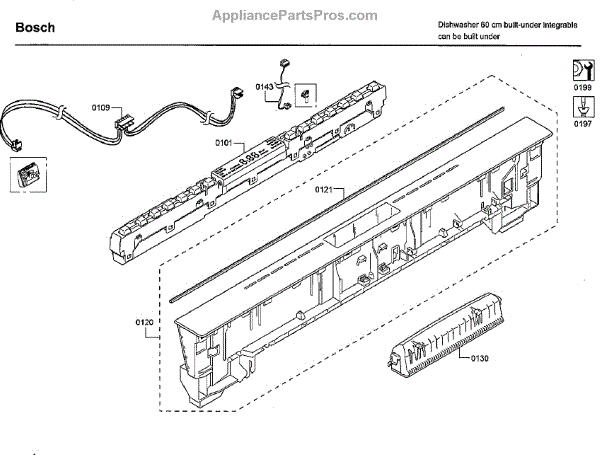

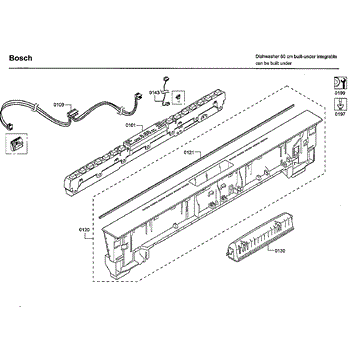

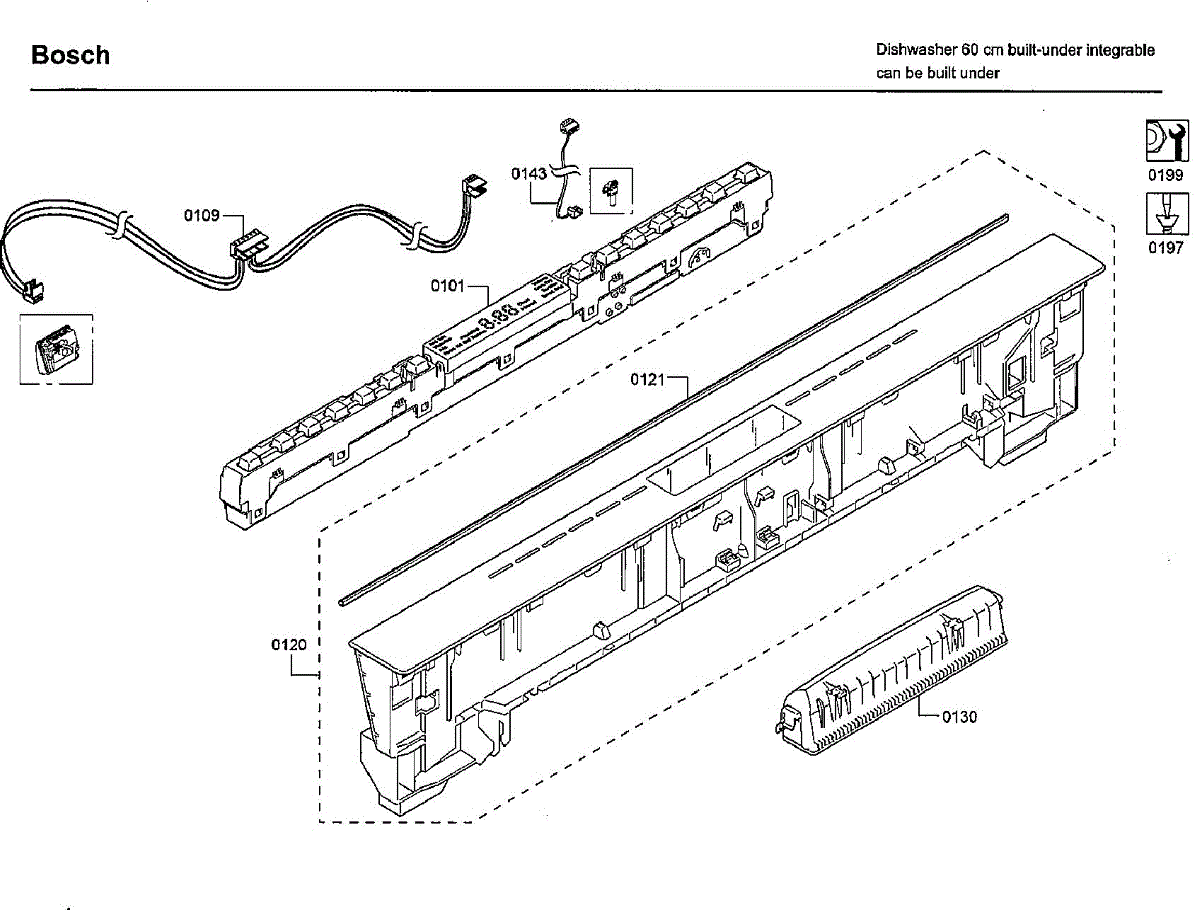

Parts for Bosch SHXN8U55UC/09: Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This operating module is the appliance control interface that routes user commands to the main control board, restoring keypad/console response and cycle selection. Replaces a failed or unresponsive control module to return normal panel operation. What it does:

• Receives inputs from the console and sends control signals to the main control board
• Restores responsive buttons, cycle selection, and user interface feedback
• Helps resolve symptoms like unresponsive controls, missing cycle selection, or intermittent panel behavior
• Does not include user-facing trim or external buttons unless listed separately

• One operating module

• High-level: disconnect power before servicing to avoid shock or board damage
• Handle the module by its edges and avoid static discharge; use an anti-static wrist strap if available
• Replace only if diagnostics indicate a faulty control module; verify connectors and wiring before swap

The Operating Module is an OEM replacement part for Bosch dishwashers. As the main processor, it directs water circulation, temperatures, cycle times, and more according to programmed instructions. Located internally, the operating module receives inputs to coordinate cleanings.

Causes of a bad operating module typically include failures over time from continuous operations in a wet environment. Water exposure can corrupt electronic circuitry within the sealed casing.

Symptoms of a bad operating module include:

• Failure to start or switch cycles as intended
• Error codes or lights signaling control malfunctions
• No response to user inputs at the control panel
• Incomplete or shortened wash cycles instead of customized settings

Replacing your operating module with this genuine OEM part restores the dishwasher's full functionality. Proper cycle management keeps dishes sparkling clean for years. It ensures continued reliability and is also compatible with Thermador, Gaggenau, and select Kenmore models.

The Wire Harness is an OEM part for Bosch dishwashers. As the central connection hub, it comprises the bundled wiring that routes electrical power and signals throughout the dishwasher. The wire harness is discreetly located behind panels to power critical components like heating elements, water valves, circulation pumps and control boards.

Causes of a bad wire harness include cracked insulation, broken wires or damaged terminals due to normal wear over time. Repeated vibration during cycles and heat exposure can degrade the internal wiring.

Symptoms of a bad wire harness include:

• Intermittent or complete power loss mid-cycle
• Lights, displays and functions failing to illuminate/operate
• Error codes appearing
• Resistance preventing components from activating

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This facia panel replaces a damaged or worn control-area cover to restore the appliance's appearance and protect the control assembly. Designed to fit over the console for a clean, finished look and reliable button access. What it does:

• Covers and protects the control electronics and display from spills, dust, and impact
• Restores a cracked, scratched, or faded console area for improved appearance
• Helps ensure buttons and touch areas operate without obstruction
• Replaces panels with broken mounting tabs or visible cosmetic damage

• Disconnect power to the appliance before starting any repair to avoid shock or damage
• Handle gently to avoid scratching the finished surface or damaging mounting tabs
• Removal typically requires unscrewing or unclipping the console; keep hardware for reassembly
• If mounting clips or underlying components are damaged, inspect and replace as needed

The Sealing is an OEM part for Bosch dishwashers. It serves as a protective barrier between the control panel and the internal components of the dishwasher, preventing moisture and dust from entering and causing damage.

A bad sealing can occur due to wear and tear, exposure to moisture, or accidental damage. Signs of a faulty sealing include water seeping into the control panel, visible cracks or gaps, or a loose fit.

Symptoms of a bad sealing include:

• Water or moisture around the control panel
• Visible cracks or gaps in the sealing
• A loose or ill-fitting seal

Replace your damaged or worn-out sealing with this genuine OEM Bosch part to restore your dishwasher. This Bosch part can also be used on Thermador and Gaggenau appliances.


The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This replacement handle restores a secure, comfortable grip for opening and closing your appliance. Use it to replace a worn, loose, cracked, or missing handle and bring back the original look and everyday usability. What it does:

• Provides the handhold needed to open and close the door, drawer, or panel
• Attaches to the appliance panel using model-specific fasteners
• Helps maintain proper alignment and a clean, finished appearance
• Common symptoms: loose or wobbly handle, cracks/breaks, missing handle, difficulty opening

• 1 handle

• Disconnect power at the breaker and, if applicable, shut off water before servicing
• Access and remove the mounting fasteners from the opposite side of the panel/door; support the handle while removing
• Transfer and reuse the original screws, spacers, and end caps as required by your model
• Tighten fasteners evenly and avoid overtightening; verify smooth operation after reassembly

The Wire Harness is an OEM component specifically designed for select Bosch dishwashers requiring electrical connections between moving components. It facilitates signal and current pathways throughout appliance frames.

Reinforced flexing sections bend without kinks accommodating shifting door movements. While connector joints remain snug against jostling. This daisy chain design simplifies diagnostics and maintenance procedures compared to individual wiring.

Symptoms signaling the need for a new harness include:

• Intermittent cycle malfunctions indicating loose or corroded connections
• Broken or cracked housing exposing live conductors to shorting hazards
• Overly taut sections hindering the intended range of component motions

Causes relate to prolonged abrasion stresses and water damage compromising insulation throughout thousands of cycles. Physical damage during repairs may require a complete replacement of this integral wiring backbone.

This OEM Bosch replacement harness is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers relying on consistent control schemes. Reinstallation restores reliable electrical pathways.
