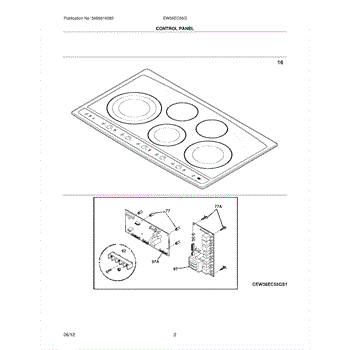

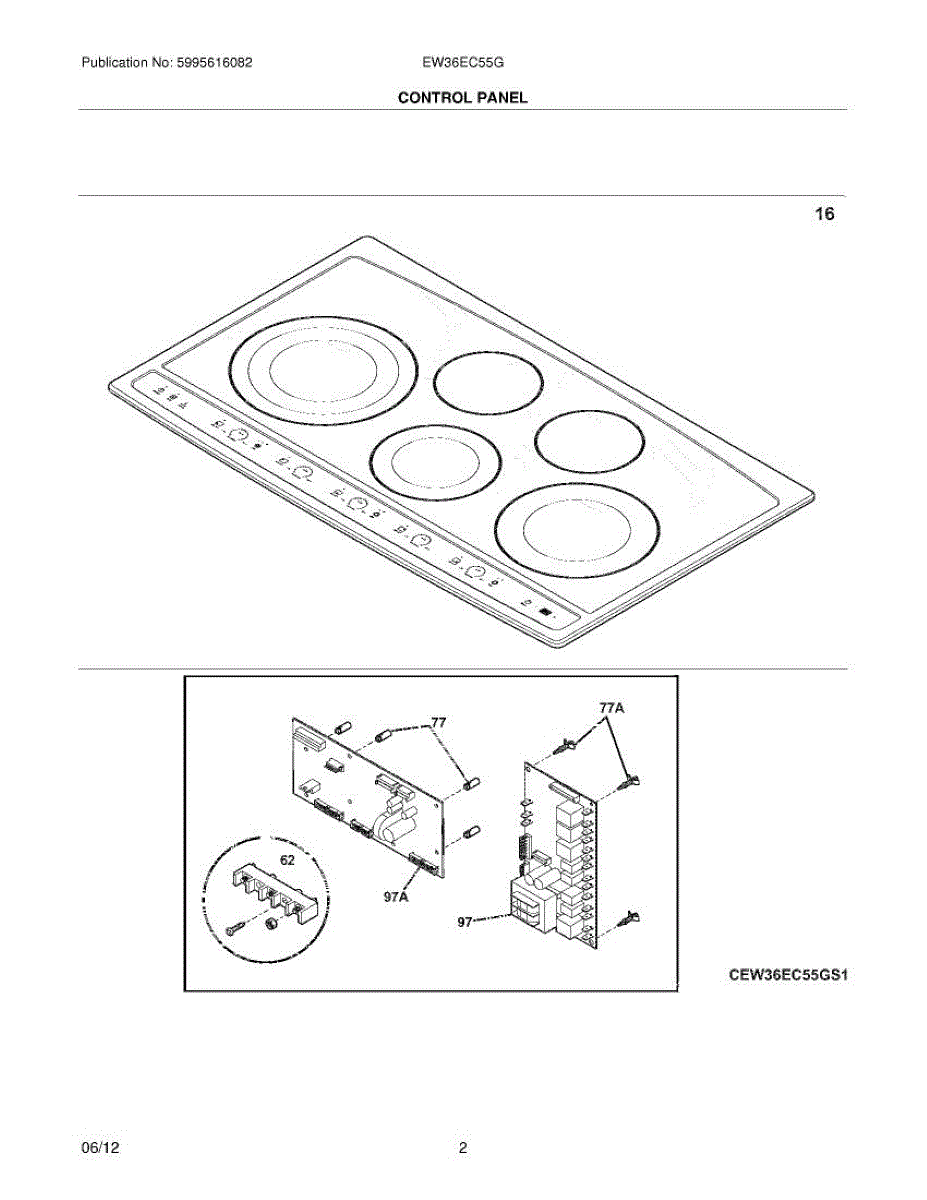

Parts for Electrolux EW36EC55GB1: 03 - Controls Parts

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This electronic control board regulates refrigerator functions and user controls so your appliance runs reliably and responds to front-panel commands. Replaces a failed main board to restore normal temperature control and routine operations. What it does:

• Manages compressor, fans, defrost cycles and other timed functions to maintain proper cooling.
• Processes user inputs from the control panel and displays status information.
• Can cause symptoms such as a blank or unresponsive display, compressor not running, erratic temperatures, or failure to complete defrost cycles.
• Matches OEM circuitry and connector layout for direct replacement when the original board has failed.

• One electronic control board — exact shipped items as listed by the manufacturer.

• Disconnect power to the appliance before starting any repair to avoid shock or damage.
• Ground yourself and handle the board by edges to avoid static damage to components.
• Confirm connector locations and orientation before removing the old board; take photos if helpful.

Specs: 10-32 X 0.375

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application
