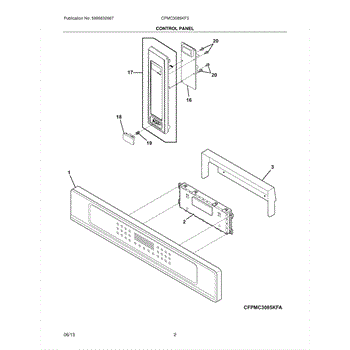

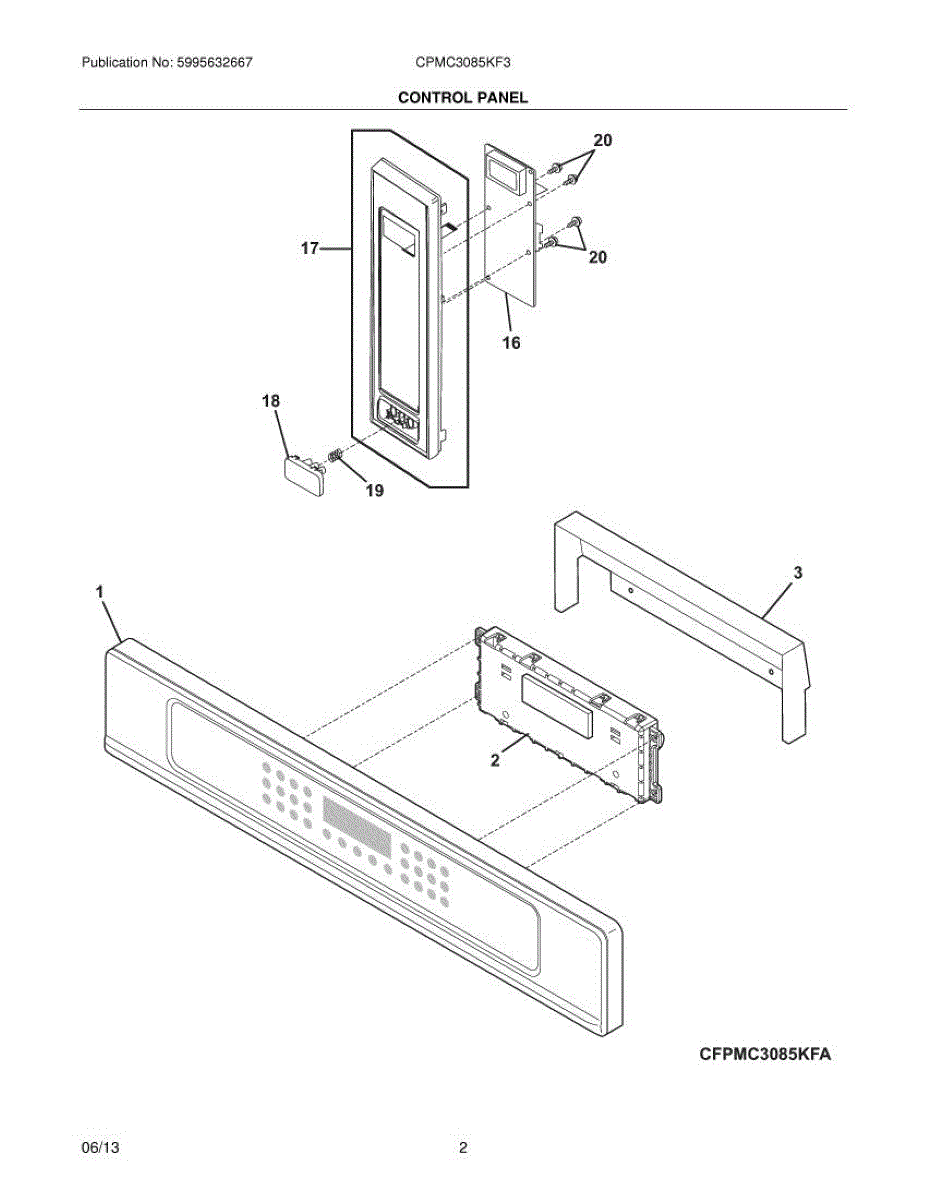

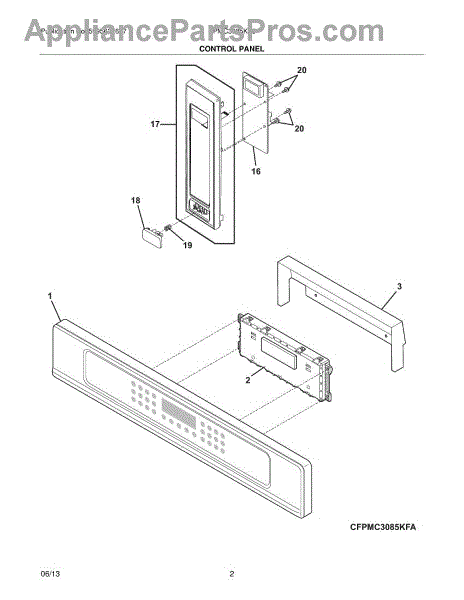

Parts for Frigidaire CPMC3085KF3: 03 - Control Panel Parts

This electronic control board manages a refrigerator's temperature and user interface, restoring proper control of cooling cycles, displays, and timed features. Replace a faulty board to regain reliable electronic control and consistent temperature regulation. What it does:

• Regulates compressor and fan cycles to help maintain set temperatures
• Interprets user inputs from the console or touchpad
• Controls display indicators and diagnostic/error signals
• Can stop or restart timed functions when the board fails

• Disconnect power to the appliance before starting any repair
• Handle the board by edges and avoid static discharge; use an ESD strap if available
• Some panel or console removal is required; keep screws and connectors organized

This main electronic control board manages core refrigerator electronics for temperature regulation, defrost timing and the user interface. Replacing a failed control board can restore proper electronic response and system control when the unit is unresponsive. What it does

• Controls compressor and evaporator/condenser fan operation; failure may cause no cooling, constant run, or short cycling.
• Manages automatic defrost cycles and defrost heater operation; failure can result in excess frost or defrost errors.
• Sends and receives signals to the user interface and display; symptoms include blank, unresponsive, or erratic controls.
• Monitors sensor inputs and system status and helps coordinate system functions; may trigger error codes or incorrect temperature behavior.

• Always disconnect power at the breaker or unplug the appliance before servicing.
• Handle the PCB by its edges and avoid static damage — use anti-static precautions if available.
• Photograph or label all connectors before removal so wiring is reinstalled correctly; secure all connectors and fasteners during reassembly.

A replacement tension spring used to restore normal movement and positioning for the affected appliance component. Replaces a worn or broken spring to help parts return to their intended position and reduce loose or uneven operation. What it does:

• Provides tension or counter-force for a door, drawer or linkage so the part moves smoothly and returns to position.
• Restores alignment and prevents sagging, slamming, or parts that don't stay in place.
• Reduces noise and uneven movement caused by a stretched or broken spring.
• Useful when a worn spring causes intermittent operation or poor component response.

• Disconnect power and water before servicing. Wear eye protection and gloves — springs can release suddenly.
• Inspect mounting points, clips and anchors; replace any damaged hardware to ensure proper function.
• Use appropriate tools (needle-nose pliers, spring hook) and follow OEM instructions for safe installation.

This is a genuine mounting screw used to secure appliance components and panels for a safe, stable fit. It replaces a lost or damaged fastener to restore proper alignment and reduce rattles or loose trim. What it does:

• Secures panels, trim, brackets or small assemblies to the appliance frame
• Prevents vibration-related noise and loose or sagging parts
• Restores proper fit after repair or disassembly
• Useful when the original screw is stripped, missing, or broken

• One mounting screw

• Use the correct screwdriver or bit to avoid stripping the head
• Power off and unplug the appliance before servicing when applicable
• Keep removed hardware organized to ensure correct reassembly
• If threads are damaged, replace with the specified OEM screw only

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
