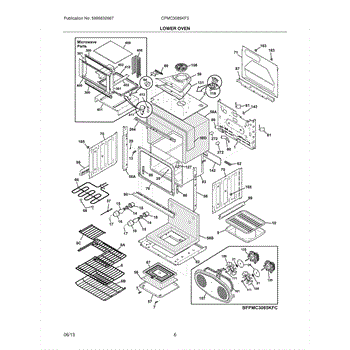

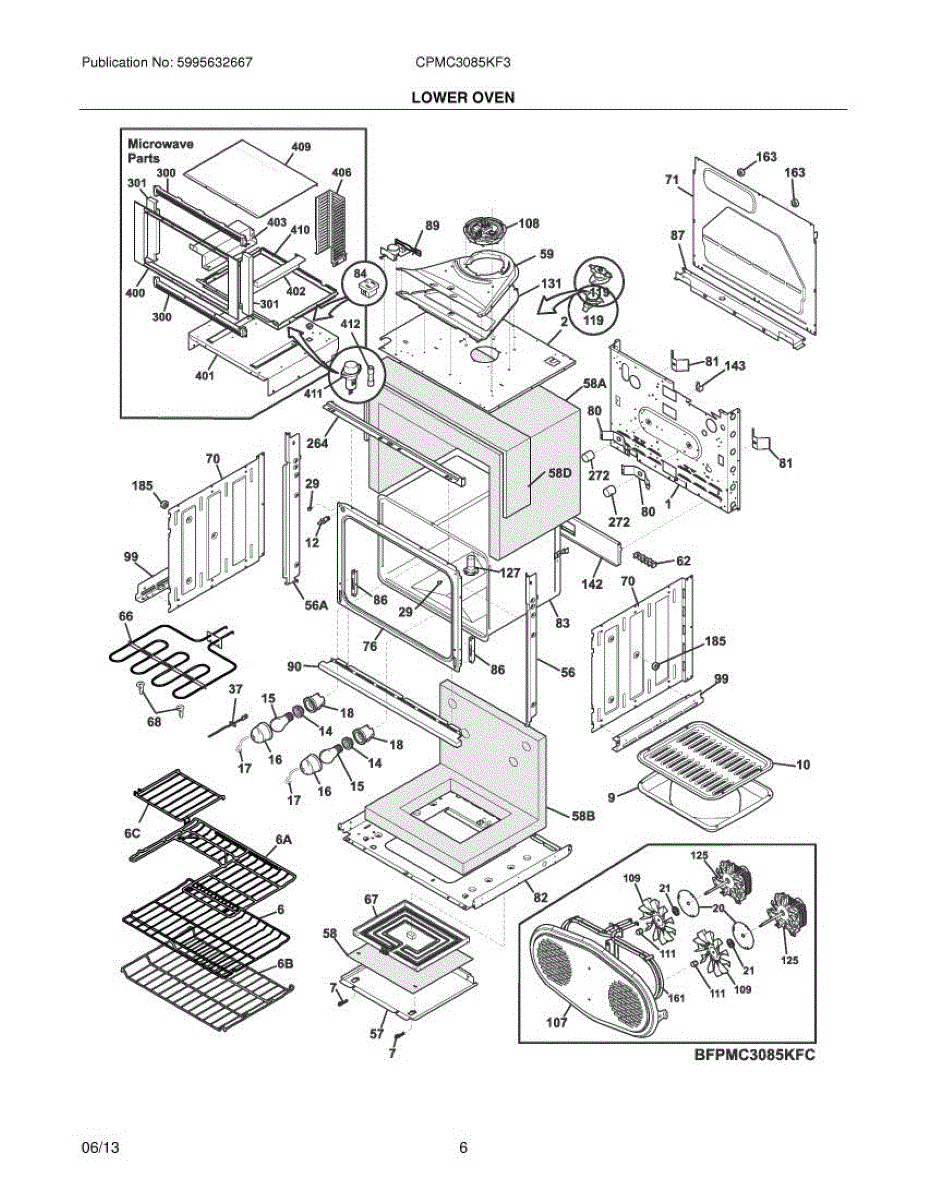

Parts for Frigidaire CPMC3085KF3: 07 - Lower Oven Parts

This oven rack provides a stable, level surface for cookware and restores smooth sliding performance in your range or wall oven. Replace a bent, rusted, or missing rack to maintain proper spacing and safe support while cooking. What it does:

• Supports pans and dishes at the correct height inside the oven
• Slides on the side rails for easy loading and access
• Replace if warped, heavily rusted, or no longer sliding smoothly
• A damaged or missing rack can make loading unsafe and affect results

• Disconnect power and allow the oven to cool completely before servicing
• Pull the old rack forward to the stop, lift the front, and remove
• Insert the new rack with the rear stops toward the back; engage both side rails evenly
• Check your owner's manual—many ovens require removing racks before a self-clean cycle

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement switch restores reliable control of a selected function by opening or closing an electrical circuit inside your appliance. When the original switch wears out, buttons may stop responding or features may not activate consistently.

• Opens/closes an electrical circuit when the button/actuator is engaged
• Routes power or sends a signal to the control or component
• Common symptoms: no response when pressed, intermittent operation, or function won't start
• May show signs of heat damage, loose terminals, or inconsistent "click" feel

• Disconnect power at the breaker before servicing
• Photograph or label wire positions to ensure correct transfer to the new switch
• Move wires one at a time; fully seat connectors on the correct terminals
• Reassemble, restore power, and test the function activated by the switch

The Oven Light Socket is an OEM replacement part for Frigidaire electric ranges and wall ovens. It houses the bulb that illuminates the interior of the oven cavity.

Causes of a bad light socket can include a loose or broken connection due to regular use, scorched or burnt terminals from overheating, or damage from moisture.

Symptoms of a bad light socket include:

• The oven light not turning on when activated
• Flickering or intermittent bulb operation
• Signs of corrosion or oxidation around the bulb base
• Excessive heat emission from the light area

This OEM Frigidaire replacement part is also compatible with ranges and wall ovens from Electrolux, Gibson, and Kelvinator.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This insulation panel cushions and thermally separates the refrigerator cabinet to help maintain proper temperature and reduce condensation. It replaces worn or damaged cabinet insulation to restore normal thermal performance and reduce drafts. What it does:

• Fits along the cabinet interior to slow heat transfer between the cold compartment and surrounding air
• Helps reduce frost buildup and lowers compressor run-time caused by poor insulation
• Prevents cold spots and helps maintain consistent internal temperatures
• Reduces vibration noise by filling gaps between the liner and outer cabinet

• One cabinet insulation panel

• Designed for drop-in or adhesive-secured placement behind the liner; follow OEM diagram for exact location
• Remove power and empty the compartment before starting work to avoid damage or injury
• Use proper PPE (gloves and eye protection); insulation fibers can irritate skin and lungs
• If adhesive is required, use OEM-recommended adhesive and allow full cure before use

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is the radiant surface heating element that powers one burner on a glass-ceramic cooktop. Replacing a failed element restores fast, even heat and reliable temperature control for everyday cooking.

• Converts electrical energy into heat for a single cooktop zone
• Works with the burner control to cycle on/off and maintain temperature
• Common symptoms include no heat, intermittent heat, or very slow heating
• Visible hot spots, blisters, or cracks on the element indicate failure

• Disconnect power to the range/cooktop before servicing; high voltage is present
• Allow the glass top to cool; lift or remove it to access the element as your model requires
• Transfer wires one at a time to the new element; secure using existing brackets/mounts
• Ensure the element is centered under the glass and test operation before reassembly

The Bake Element is an OEM component for Frigidaire wall ovens. It is an integrated heating coil that generates heat through electric resistance when powered. Located near the bottom of the oven cavity, the bake element facilitates heating for various cooking functions like baking, roasting, or warming. This element measures approximately 13 x 11 inches.

Symptoms of a bad bake element include:

• Oven failing to reach or maintain desired cooking temperatures
• Bake cycles taking excessively long periods of time
• Hot or cold spots developing inside oven cavities
• Error codes appearing related to upper heating issues

Causes can be cracks in ceramic sheathing allowing arcing, or mineral deposits coating coils over extended use impeding heat transfer.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This element hanger support secures a cooktop surface heating element to the range and keeps the element aligned for reliable contact and stable cooking. Replaces a worn or bent bracket to restore proper element positioning. What it does:

• Holds the surface heating element in the correct position under the cooktop
• Stabilizes the element to maintain solid electrical contact and even heating
• Helps prevent element wobble, arcing, or intermittent power to the burner
• Fits where the element connects to the terminal/anchor point on the cooktop

• 1 element hanger support bracket

• Disconnect power to the appliance before attempting any service
• Remove the cooktop or element as required to access the hanger; follow OEM disassembly steps
• Inspect element terminals and surrounding parts for damage while replacing the bracket

This motor drives the fan or mechanism in your cooking appliance to move air as designed. Replacing a worn or seized motor restores proper airflow and quieter operation for consistent baking, cooling, or venting performance, depending on model.

• Powers the appliance's fan or drive to circulate air or move exhaust
• Helps maintain even temperatures or ventilation during operation
• Replaces a noisy, slow, or non-spinning motor
• Common signs: fan won't run, weak airflow, humming/grinding noise, overheating, or a tripped breaker

• Disconnect power at the breaker; shut off gas supply for gas models
• Access location varies by model; remove the necessary panels to reach the motor
• Note wiring and rotation; transfer any brackets, grommets, or the fan blade from the original, if required
• After installation, verify smooth, quiet operation and correct airflow

This motor powers the oven's fan to move air through the cavity or chassis, depending on the model. Replacing a weak or failed motor restores proper airflow, helping maintain stable temperatures and protect internal components during cooking and cool-down. What it does and common symptoms:

• Drives the oven's fan for cooling and/or convection airflow
• Fan does not run or starts intermittently
• Loud humming, squealing, or grinding from the fan area
• Control area feels unusually hot or oven struggles to maintain temperature
• Uneven baking performance when using convection (on applicable models)

• One motor

• Disconnect power at the breaker before servicing; allow the oven to cool
• Access is typically from the rear or top; remove panels to reach the motor
• Note wire locations and any rotation markings before removal; transfer any attached fan wheel/bracket as required
• After installation, rotate the fan by hand to check for clearance, then restore power and test operation

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

The Thermostat is an OEM replacement part for Frigidaire ranges. It monitors the oven's temperature and cuts power if temperatures surpass safe levels. The high-limit thermostat allows protection against overheating.

Causes of a bad thermostat include wear and tear over time, damage due to exposure to extreme heat, or malfunctioning electronic components.

Symptoms of a bad thermostat include:

• Oven does not start at all.
• Excessive temperature fluctuations
• Risk of overheating as thermostat fails to shut off gas or electric coils
• Smoking or burning smells from the oven

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

This convection fan motor powers the fan that circulates heated air during convection cooking, helping your appliance maintain even temperatures and consistent results. Replacing a weak or noisy motor restores proper airflow and quieter operation.

• Drives the convection fan to move hot air throughout the cooking cavity
• Promotes even heat distribution for baking and roasting in Convection modes
• Activates when the control calls for convection airflow
• Common symptoms: fan not spinning, intermittent or slow operation, rattling or squealing noises, uneven cooking

• Disconnect power and allow the appliance to cool completely. Microwaves can retain dangerous high voltage even when unplugged.
• Access the motor behind the rear or interior fan cover per your model's design.
• Note wire positions; transfer the existing fan blade and any mounting hardware to the new motor if required.
• Ensure the fan spins freely before reassembly; restore power and test a Convection cycle.

NOTE: The factory has removed the catalyst (honeycomb) from this tube adapter. The catalyst is no longer available.

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

This fuse and fuse holder assembly replaces the appliance's inline protective fuse and its mounting holder to restore proper overcurrent protection and reliable electrical connection. Use this part when a blown fuse or damaged holder interrupts power. What it does

• Protects appliance circuits by interrupting power when a fault or surge occurs
• Provides a secure, replaceable mounting point for the protective fuse
• Commonly associated with symptoms like no power, intermittent power loss, or an appliance that won't start
• Restores a safe electrical path when the original fuse or holder is damaged or corroded

• One fuse and one matching fuse holder

• Disconnect power to the appliance before inspecting or replacing the fuse and holder
• Verify the replacement matches the original fuse type and holder configuration before installation
• Inspect wiring and connectors for heat damage; replace damaged wiring or connectors as needed

This fuse and fuse holder assembly replaces the appliance's inline protective fuse and its mounting holder to restore proper overcurrent protection and reliable electrical connection. Use this part when a blown fuse or damaged holder interrupts power. What it does

• Protects appliance circuits by interrupting power when a fault or surge occurs
• Provides a secure, replaceable mounting point for the protective fuse
• Commonly associated with symptoms like no power, intermittent power loss, or an appliance that won't start
• Restores a safe electrical path when the original fuse or holder is damaged or corroded

• One fuse and one matching fuse holder

• Disconnect power to the appliance before inspecting or replacing the fuse and holder
• Verify the replacement matches the original fuse type and holder configuration before installation
• Inspect wiring and connectors for heat damage; replace damaged wiring or connectors as needed

Specs: 8 x 0.750

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This mounting bracket secures internal panels or components to the appliance frame, restoring stable support and alignment for proper operation. Use when a bracket is bent, broken or missing to reduce rattling and keep parts positioned correctly. What it does:

• Anchors panels or components to the cabinet/frame to prevent movement and vibration
• Restores proper alignment of doors, panels or internal assemblies
• Stops rattling or buzzing caused by loose or damaged support hardware
• Helps maintain safe clearance between parts and wiring or moving components

• Disconnect power to the appliance before starting any repair
• Basic hand tools typically required; follow OEM instructions for correct fastener locations
• Inspect adjacent fasteners and mounting surfaces; replace any damaged screws or clips
• If bracket is corroded or severely deformed, replace rather than re-bend to ensure proper fit

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This harness assembly is the appliance wiring connector bundle that carries power and signals between controls and components, restoring proper electrical connections for normal operation. What it does:

• Routes power and control signals between the control board and key components
• Replaces damaged, burned, or loose wiring that can cause intermittent operation
• Helps resolve symptoms like unresponsive controls, failure to start, or component loss of power
• Restores factory wiring layout and connector fit for reliable connections

• Disconnect power before starting; confirm power is off at the breaker
• Compare connectors and wire colors to the old harness before removal
• Route and secure harness to avoid heat or pinch points; use existing clips/mounts

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw

This spacer sets the correct gap between mating parts in your appliance's assembly, preventing rubbing and misalignment. Replace a missing or worn spacer to restore a solid fit, reduce noise, and protect surrounding components.

• Maintains proper spacing between components for correct alignment and operation
• Reduces metal-to-metal contact, squeaks, and premature wear
• Helps fasteners and panels seat securely
• Typical symptoms when failed: loose or rattling parts, uneven gaps, or visible wear marks

• Disconnect power; for gas models, shut off the gas. Allow the appliance to cool completely.
• Access the assembly per your model's diagram; note the original orientation/stack-up before removal.
• Reuse original fasteners if serviceable; hand-start threads and tighten snugly to avoid damaging the spacer.
• Verify alignment and clearances before fully reassembling. Quantity and location vary by model.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
