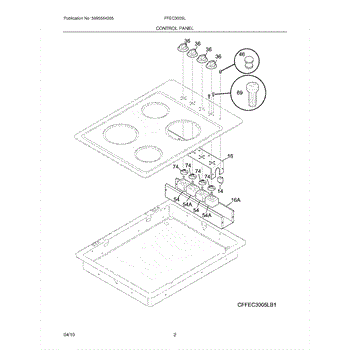

Parts for Frigidaire FFEC3005LS1: 03 - Control Panel Parts

250V.

This replacement control knob lets you turn the range's control shaft to set burner or oven temperature. Swapping a cracked or loose knob restores a secure grip and accurate, easy selection of settings.

• Attaches to the control stem to adjust heat levels or oven temperature
• Replaces knobs that are cracked, stripped, loose, or missing
• Helps when the knob falls off or spins without engaging the control
• Restores proper feel and alignment of settings on the control panel

• Ensure the appliance is off and cool before servicing
• Pull the old knob straight off the stem; do not twist or pry with tools
• Align the new knob with the stem orientation and press firmly until fully seated
• If the knob won't seat, inspect the control stem for wear or damage before forcing

The Indicator Light Lens is an OEM part for Frigidaire ranges and cooktops. It is designed to cover and protect the indicator light bulb, which signals when a burner is turned on or if the cooktop is still hot after use. This small component ensures that the light is visible and diffused properly, helping to prevent accidental burns or other safety issues.

Symptoms of a failing Indicator Light Lens include:

• Cracking or damage to the lens that impairs visibility
• Discoloration that makes it hard to tell if the light is on
• The lens becoming loose or falling off
• The light appearing overly bright or unfiltered

Causes of a bad indicator light lens typically involve high heat exposure, which can lead to cracking or warping, or accidental impacts during cleaning or use.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This electrical microswitch opens or closes a circuit when its actuator is engaged, allowing the control to sense position or enable a function. Replacing a worn switch restores reliable signaling and prevents intermittent faults in select ranges and wall ovens. What it does

• Changes state (open/closed) when actuated to complete or break a circuit
• Sends feedback to the control or enables power to a related component
• Helps ensure operations start/stop only when the mechanism is in the correct position
• Failure signs can include intermittent operation, cycles that won't start or finish, or related error codes/alarms

• 1 switch

• Disconnect power at the breaker before servicing
• Note/photograph wire positions and transfer one at a time to the new switch
• Match actuator orientation to the original and secure the switch firmly
• Verify function with a multimeter (continuity changes when actuated) before reassembly and testing

The Range Switch is an OEM part for Frigidaire ranges. This switch controls the power supply to the range elements, allowing you to adjust the heat levels for cooking.

Causes of a bad Range Switch can include wear and tear from regular use, electrical issues such as short circuits or faulty wiring, or damage due to spills or overheating. These issues can result in the switch failing to regulate the power to the elements properly.

Symptoms of a bad Range Switch include:

• Inability to adjust the heat level
• The element not turning on or off
• Intermittent or inconsistent heating
• A burnt smell or visible damage on the switch

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.

This switch bushing fits the control shaft to stabilize and guide rotary switches, helping restore proper knob alignment and smooth operation. It prevents wobble and uneven contact that can cause intermittent control behavior. What it does:

• Centers and supports the control shaft to keep the switch and knob aligned
• Reduces wobble and lateral play that can make knobs feel loose or inconsistent
• Helps maintain reliable electrical contact by keeping the switch properly seated
• Commonly replaced when knobs are loose, the switch wobbles, or control engagement is uneven

• One switch bushing

• Disconnect power to the appliance before starting any repair
• Requires removing the control panel or knob to access the switch shaft; small hand tools typically needed
• Inspect the switch and knob for wear while replacing the bushing; replace worn components as needed
