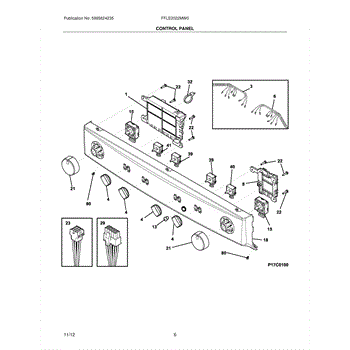

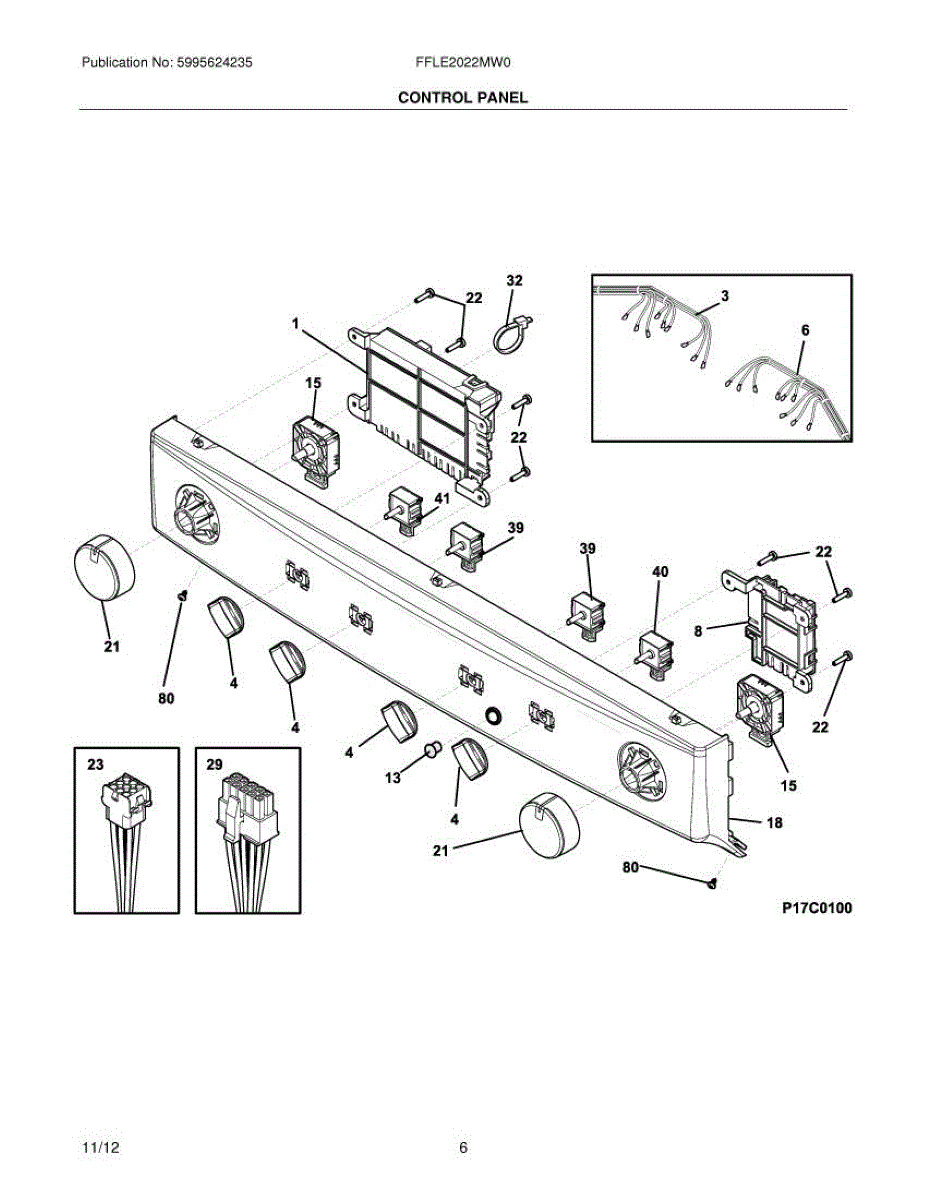

Parts for Frigidaire FFLE2022MW0: 07 - Control Panel Parts

This electronic control board manages your appliance's core operations, interpreting user selections and sensor inputs to run cycles reliably. Replacing a failed board can restore proper functionality and responsive controls. What it does:

• Coordinates timing and operation of components based on programmed settings
• Processes signals from sensors and switches to start, stop, and sequence functions
• Sends control signals to motors, fans, valves, and heaters as designed
• Common symptoms of a failed board: won't start, unresponsive buttons, intermittent or erratic operation, display or indicator lights not working, repeated error codes

What's included:

• One control board (PCB), as shown

Install notes:

• Disconnect power to the appliance before servicing; allow any capacitors to discharge
• Use ESD protection and handle the board by the edges to avoid static damage
• Photograph wiring and move connectors one at a time to the matching terminals
• Some models may require configuration or code selection after installation—follow the unit's tech sheet or service manual

This replacement control knob lets you operate the corresponding control on your appliance with a solid, accurate feel. Restore clean appearance and dependable adjustment if the original knob is cracked, loose, missing, or stripped.

• Attaches to the control shaft to select and adjust settings
• Replaces knobs that are broken, cracked, or won't stay on the stem
• Helps correct slipping/spinning that prevents proper selection
• Restores pointer alignment and smooth, positive engagement

• Disconnect power (and shut off gas if applicable) before servicing
• Pull the old knob straight off the control shaft—do not pry against the panel
• Align the new knob with the shaft and press firmly until fully seated
• Test the control for proper engagement and pointer alignment before use

This electronic control board is the appliance's central brain. It interprets user inputs and sensor signals to run cycles correctly, helping restore reliable operation when the original board is damaged, shorted, or unresponsive.

• Directs cycle logic by processing inputs from the controls and sensors
• Sends power to components as required for proper operation
• Interfaces with the display and user controls
• Common symptoms of a failed board: no power or display, unresponsive buttons, won't start, erratic cycling, or error codes

• Disconnect power to the appliance before servicing
• Use ESD protection and handle the PCB by the edges
• Photograph/label wiring and transfer connectors one at a time
• Mount in the same orientation and ensure all harnesses are fully seated before restoring power

This round on/off switch replaces the worn or broken power control on compatible appliances, restoring reliable on/off operation and user control at the front panel. Designed to match OEM fit and function for direct replacement. What it does:

• Provides a simple on/off user control for the appliance's power circuit
• Re-establishes consistent electrical contact when the original switch fails
• Commonly fixes symptoms like no power from the control location, intermittent power, or a switch that won't stay on
• Operates as the primary user-actuated power control for the associated circuit

• One round on/off switch

• Disconnect power to the appliance before testing or replacing the switch to avoid shock
• Verify correct wiring location and connectors before removing the old switch; transfer any wiring harness or connectors exactly
• Handle with care to avoid damage to the switch actuator or mounting tabs

This electrical switch controls a specific function within your appliance's circuit. When contacts wear or fail, the unit may not start or selected options won't engage. Replacing the switch restores proper signaling and dependable operation.

• Opens and closes an electrical circuit for its assigned function
• Sends the correct on/off signal to the control or motor circuit
• Common failure symptoms: no start/response, options not engaging, intermittent operation, or related error codes
• Can be checked with a continuity test; replace if contacts are stuck open or closed

• Disconnect power at the breaker; for gas dryers, also shut off gas supply
• Access the switch location and note wire positions (take a reference photo)
• Transfer wires to the new switch one at a time and secure the mounting
• Reassemble and run a test cycle to verify proper operation

No.8 pan head `10 - 10b x 0.50 `cr/sq drive
