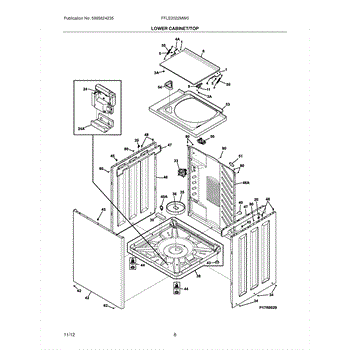

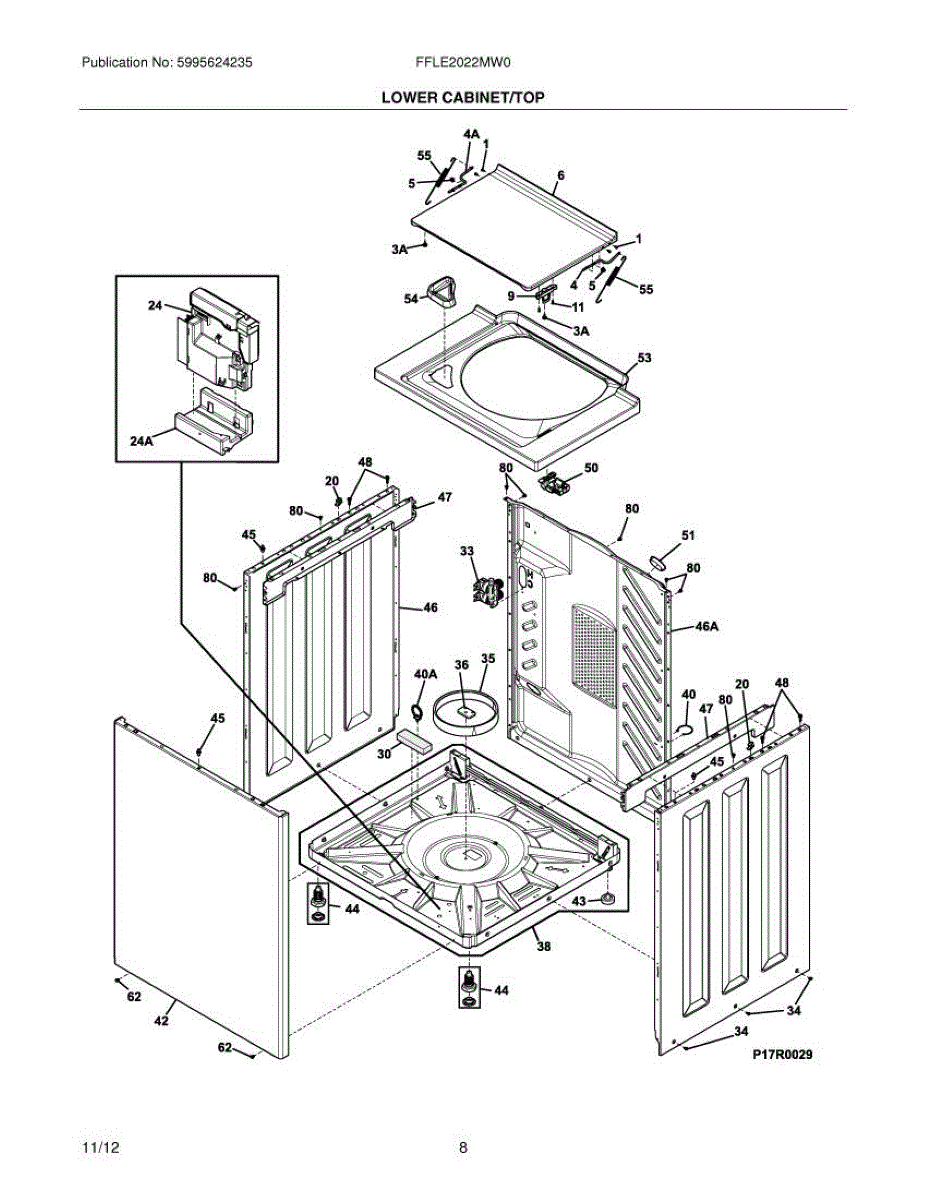

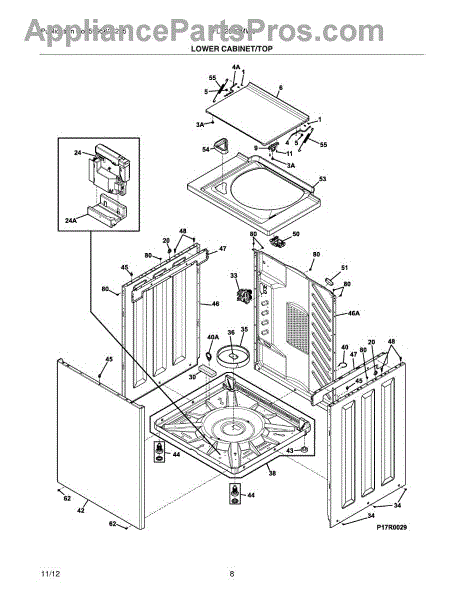

Parts for Frigidaire FFLE2022MW0: 09 - Lower Cabinet / Top Parts

Pan hd phillips ,6-32 x 0.337 ,dog point

This rubber lid bumper cushions the washer lid to prevent hard contact and reduce noise and wear. It replaces a worn or missing bumper to help the lid close more softly and sit level. What it does:

• Acts as a soft contact point between the lid and cabinet to absorb impact
• Reduces lid slamming, rattling, and vibration during operation
• Helps keep the lid aligned and prevents cosmetic damage to the rim
• Commonly replaced when the bumper is cracked, flattened, or missing

• One rubber lid bumper

• Install by removing the old bumper and pushing the new bumper into the mounting hole or recess; hand tools may be helpful
• Ensure the appliance is powered off and disconnected before servicing
• Inspect surrounding mounting area for damage and replace any broken retainers as needed
• If the bumper is hard to seat, warm it briefly with a hair dryer to improve flexibility

This genuine OEM part is a washer lid. The washer lid is the main piece that covers the washer. Over time, a washer lid can become damaged to the point where it no longer closes securely. If the washer lid is no longer closing all the way or is severely cracked or damaged, it will need to be replaced.To replace this part, start by making sure the washer is unplugged. After it has been powered off, proceed to take a putty knife to lift to release the two retaining clips that secure the washer's main top. Once released, proceed to remove the lid lock assembly wire connector. Fully remove the main top and set it upside down. Release the tension on the lid springs and detach the springs from the main top and hinge bars. Using a Phillips head screwdriver, remove the screws that secure the hinge bars to the lid. Push the hinge bars through the bearings then twist the bars to remove them. This will separate the lid from the main top. Take the new lid and align it with the main top. Insert the hinge bar between the main top and bearing while threading the screws to secure the new top. Reinstall the top panel and connect the wire harness. This replacement part is sourced directly from the manufacturer and is compatible with Frigidaire, Electrolux, Gibson, Kelvinator, and Westinghouse brand washers.

The Striker is an OEM component specifically designed for Frigidaire laundry centers. It connects the door to the stainless steel panel, providing secure closure of the unit.

Symptoms of a bad striker include:

• Loose or misaligned door that does not fit properly
• Latching issue causing the door to open unintentionally
• Failure points developing around striker mounting location
• Over time increased stresses on other door closure parts

Causes of a bad striker can be normal wear from repeated door openings, damage during moves impacting door alignment, or loose fasteners compromising connections.

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore laundry center models. Replace promptly before needing other repairs.


This strike screw secures the door strike/catch to the appliance, keeping the latch aligned so the door closes firmly and any safety interlock engages. Replacing a missing, stripped, or corroded screw helps restore reliable, consistent door latching. What it does:

• Fastens the strike/catch to the door or cabinet
• Maintains proper alignment for positive latch engagement
• Helps address issues like door not latching, loose/rattling door, or intermittent door switch activation
• Replace if threads are stripped, the head is damaged, or the screw is missing

• 1 strike screw

• Disconnect power before servicing; allow hot surfaces to cool. For gas appliances, also shut off the gas supply.
• Support the door or strike and remove the damaged/missing fastener.
• Start the new screw by hand to avoid cross-threading; tighten snugly without overtightening.
• Verify door alignment and latch/lock operation after installation.

The Motor Control Board is an OEM part for Frigidaire washing machines. It functions as the central command center, directing all operations of the washer through electrical signals sent to components like the motor, clutch, and pump. The control board features precisely calibrated circuitry designed to execute cycle settings.

Causes can be short circuits, component failure from extended use, or water damage from leaks over time.

Symptoms of a bad motor control board include:

• The washer fails to start or complete cycles
• Strange electronic humming or buzzing noises
• Flashing lights and error codes displayed
• Inability to control cycle settings

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This triple-solenoid washer water inlet valve regulates and routes hot and cold water into the tub and dispenser as the control commands. Replacing a weak, stuck, or leaking valve restores proper fill, temperature mix, and cycle performance. What it does:

• Opens and closes to allow water into the washer based on cycle and temperature selections
• Three solenoids manage hot/cold mix and direct water to the tub and dispenser compartments
• Typical symptoms: won't fill, slow fill, fills when powered off, incorrect temperature, or leaks from the valve
• May trigger fill-related error codes or cause extended/paused cycles due to fill timeout

• One water inlet valve assembly with three solenoids

• Disconnect power and turn off both hot and cold water supplies before servicing
• Place a towel or shallow pan to catch residual water when removing hoses
• Label and transfer each wire connector and hose to the matching port on the new valve
• After installation, open supply valves and run a test fill; inspect all connections for leaks

A small replacement retainer clip used to secure interior trim or components so panels and shelves stay in place. Replacing a worn or broken clip restores a snug fit and reduces rattling or loose parts. What it does

• Holds trim, panels or small components in place to prevent shifting
• Prevents rattling and keeps parts aligned for proper operation
• Replaces cracked, broken or missing clips that allow parts to sag or fall
• Works wherever the OEM clip design is specified for a secure snap-fit

• Clip

• Disconnect power before servicing appliances with electrical components
• Remove surrounding trim or components carefully to access clip location
• Press or snap the clip into place; avoid forcing to prevent damage
• Keep small parts away from children and pets during installation

This backsheel clip secures the appliance backsheet to the cabinet, keeping panels aligned and preventing gaps. It's a simple replacement that restores proper panel fit and reduces rattling or movement. What it does:

• Holds the backsheet or rear panel in place for a flush fit
• Stabilizes the cabinet to reduce vibration and noise
• Helps maintain proper airflow paths by keeping panels sealed
• Replaces damaged, broken, or missing mounting clips

• High-level, screwless snap-in or push-fit — remove power and access the rear panel before replacing
• Use a flashlight and small flat tool to pry the old clip free if brittle or stuck
• Wear gloves to protect hands from sharp sheet-metal edges
• If multiple clips are damaged, replace all affected clips for even panel alignment

This replacement control panel restores the user interface and appearance of your appliance's console, providing a clean mounting surface for buttons, knobs, and the display so controls operate reliably and look like new. What it does:

• Houses the control buttons, selector switches, and display area used to operate the appliance
• Replaces cracked, faded, or cosmetically damaged panels to improve appearance
• Helps remedy problems where buttons stick, feel loose, or no longer register presses
• Provides the proper mounting and alignment for switches and electronic components

• Disconnect power to the appliance before beginning any repair.
• Remove surrounding trim or console screws to access and replace the panel; some models require transferring switches or displays from the old panel.
• Handle edges carefully and avoid touching exposed circuitry or contacts.

Self leveling leg pad

The Leveling Leg is an OEM part for Frigidaire washers. It is designed to provide stability and level the appliance properly on the floor during installation and operation.

Common causes for needing to replace the leveling leg include damage or wear over time, which can lead to unevenness and excessive vibration during wash cycles.

Symptoms that may indicate the need for a replacement leveling leg:

• Uneven or unstable washing machine
• Excessive shaking or vibration during spin cycles
• Difficulty in leveling the washer during installation

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

A small locating pin used to align and secure parts during assembly, helping panels and components sit correctly for reliable operation. Ideal when a worn or missing pin causes fit or alignment issues. What it does:

• Positions and holds panels, trim, or assemblies in the correct location during reassembly
• Prevents shifting or misalignment of covers and access panels
• Restores proper fit where a bent, broken or missing pin causes loose trim or gaps
• Small, simple replacement that addresses common fit/fitment symptoms

• Disconnect power and unplug the appliance before beginning any work
• Use basic hand tools; avoid forcing parts into place to prevent damage
• Inspect surrounding components for damage and replace if worn

This is a replacement 12-24 UNC machine screw used to secure appliance panels and internal components so fittings stay tight and stable during use. It restores proper fastening where the original screw is damaged or missing. What it does:

• Fastens and secures panels, brackets, and component assemblies
• Helps stop rattling, loose parts, or gaps caused by a missing or stripped screw
• Provides correct thread engagement for 12-24 UNC threaded holes
• Replaces worn, rusted, or damaged screws to restore original fit

• Disconnect power and water to the appliance before servicing
• Use the correct driver and size to avoid stripping the head
• Thread in by hand first, then tighten snugly—do not overtighten
• Replace only with the exact part number to ensure proper fit and function

This washer door lock secures the door closed and communicates locked status to the control so cycles can run safely. Replacing a failed lock restores proper latching and may resolve no-start, spin, or door/lock error issues.

• Locks the door at the start of the cycle to prevent opening during wash and spin
• Signals the control when the door is closed and locked
• Releases the door at the end of the cycle
• Common symptoms: won't start, door won't lock/unlock, intermittent pauses, door/lock error message

• Unplug the washer before servicing
• Access the lock from the front; remove the door gasket clamp and mounting screws (procedure varies by model)
• Transfer wires to the new lock one connector at a time; do not force terminals
• Verify the door striker engages smoothly and test an empty cycle before full use

This is a replacement dispenser assembly for your refrigerator's door dispenser. It restores the external dispenser trim/assembly so you can use the ice and water dispensing area reliably and keep the door looking finished. What it does:

• Replaces a cracked, broken or damaged dispenser housing or trim piece
• Restores proper alignment and user interface for dispensing water or ice
• Helps stop drafts or moisture intrusion around the dispenser opening
• Can resolve cosmetic damage or functional issues where the dispenser lever/area is compromised

• Disconnect power and shut off the water supply before beginning work
• Remove the inner door panel as required to access and remove the old dispenser; keep fasteners for reuse unless damaged
• Handle the dispenser and door trim carefully to avoid scratching or cracking during installation
• After installation, restore power and water supply and check for proper operation and any leaks

This is a suspension spring for select washers. It supports and stabilizes the wash tub during spin and agitation to reduce vibration and noise, helping the machine run smoothly.

• Supports the tub within the cabinet to control movement
• Helps reduce excessive vibration, banging, or walking during spin
• Addresses symptoms like out-of-balance loads, noise, or shaking
• Loss of tension, stretching, or breakage can require replacement

• Unplug the washer and shut off water supply before repair
• Access typically requires removing the top or front panel; support the tub to relieve spring tension
• Wear gloves and eye protection; springs are under tension
• Replace any damaged or missing suspension components in pairs or as required.

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

A small metal mounting screw used to secure appliance panels and internal components. Simple replacement that restores proper fit and reduces rattling or loose parts when the original fastener is missing or damaged. What it does

• Secures panels, brackets, or trim pieces to the appliance chassis
• Holds internal components in place to maintain alignment and function
• Helps prevent vibration noise and movement from loose parts
• Suitable where the OEM listed screw size and thread match the original

• Disconnect power and water before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Keep any removed screws organized to ensure correct reassembly
