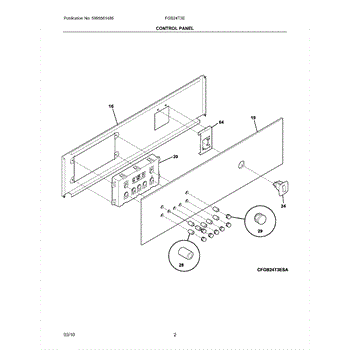

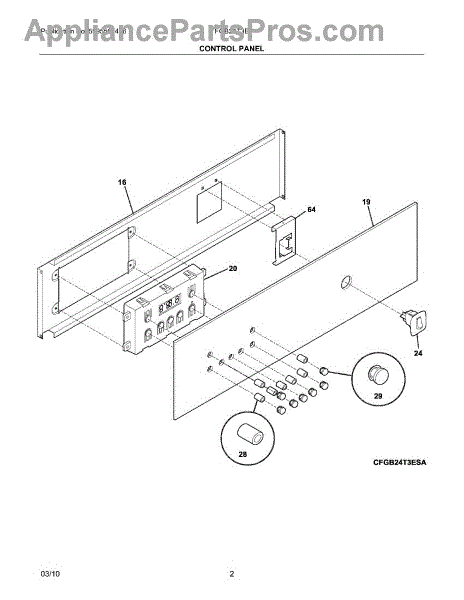

Parts for Frigidaire FGB24T3EBF: 03 - Control Panel Parts

This clock/timer is the range's electronic oven control. It manages the bake and broil circuits using temperature-sensor feedback and provides the digital clock and timer, restoring proper heating performance and a readable display when the original control fails.

• Controls power to bake and broil elements/ignitors to reach and hold the set temperature
• Displays clock, timer, and oven status on the front panel
• Receives keypad inputs to start/stop and adjust oven cycles
• Typical failure signs: blank or dim display, unresponsive controls, error codes, oven will not heat or maintain temperature

• Disconnect power at the breaker before servicing; this control carries live voltage
• Access the control from the backguard/control panel; remove the rear cover to reach mounting screws and connectors
• Photograph or label all wire harness connections; transfer any brackets and install the new board in the same orientation
• Handle electronics by the edges and protect from static discharge; set the clock after reassembly and test oven functions

This part has been discontinued by the manufacturer and is no longer available.

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
