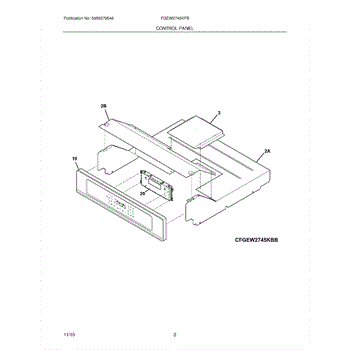

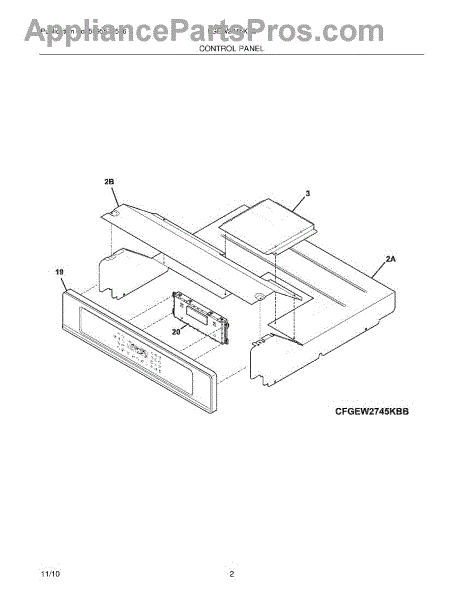

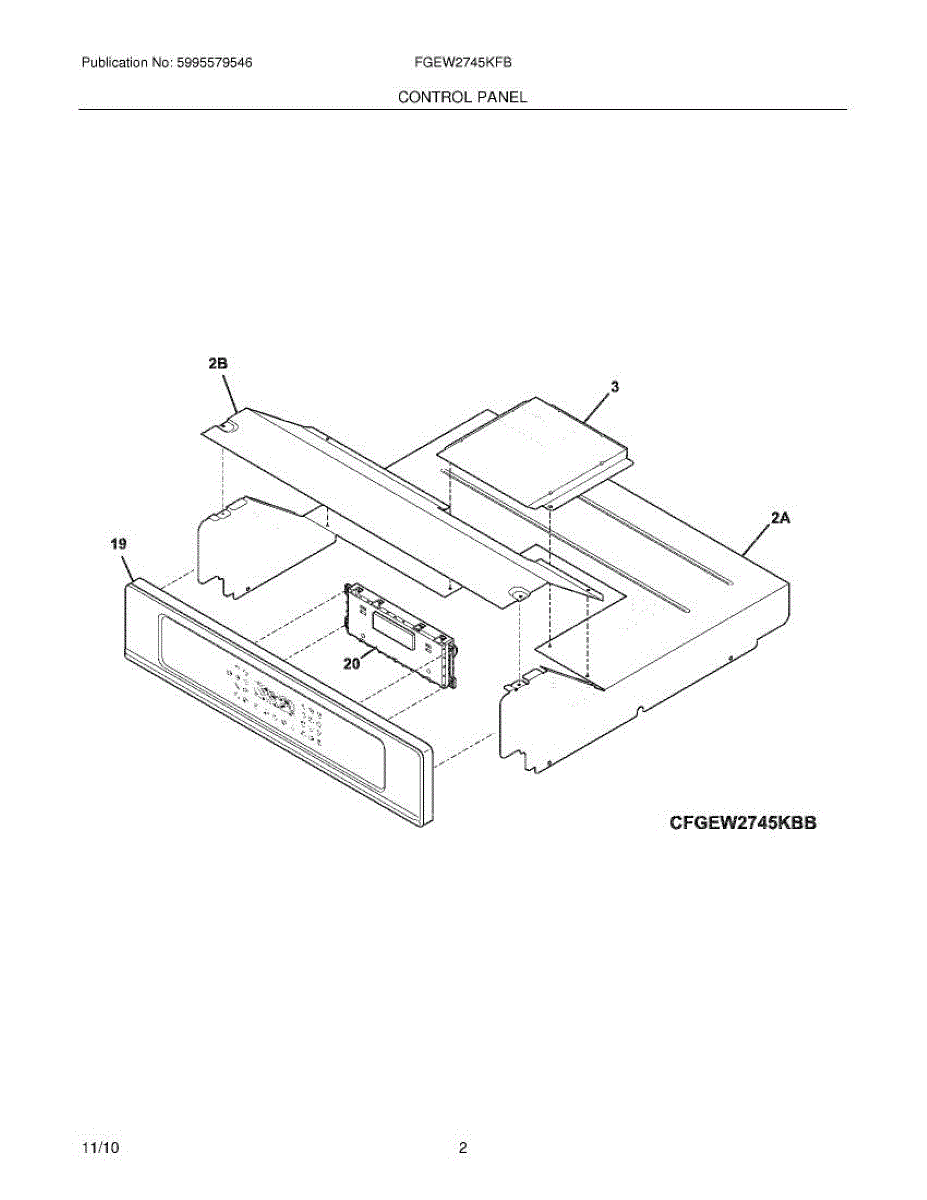

Parts for Frigidaire FGEW2745KFB: 03 - Control Panel Parts

This panel assembly replaces a damaged or worn control panel to restore the appliance's front-console appearance and user controls. It provides the finished surface and mounting for the control buttons and display. What it does:

• Houses the control buttons/keys and display area so you can operate the appliance
• Restores a cracked, scratched, or broken front console surface
• Ensures proper alignment and fit for the control interface
• Helps stop debris and moisture from reaching internal electronics when installed

• Disconnect power (unplug or shut off breaker) before starting any repair.
• Handle with care to avoid scratching the finish or damaging trim clips and connectors.
• Removing the old panel may require removing trim screws and the console; keep hardware for reuse unless replacement is provided.
• If internal connectors or mounting clips are damaged, replace them to ensure a secure fit.

This electronic oven control board governs the appliance's heating and front-panel functions. Replacing a failed board can restore accurate temperature control, mode selection, and display/timer operation.

• Controls bake and broil relays to reach and maintain the set temperature
• Manages the oven clock, timer, and digital display
• Receives keypad inputs for mode and temperature selection
• Monitors the temperature sensor and can register fault codes
• Common symptoms: oven won't heat or start, blank/erratic display, unresponsive buttons, random beeps or error codes

• Disconnect power at the breaker before servicing
• Use ESD precautions; avoid touching circuitry and contacts
• Label or photograph all wiring; transfer mounting hardware and the existing faceplate/overlay if applicable
• After installation, run a test cycle; some models may require initialization or calibration per the service sheet in the unit

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
