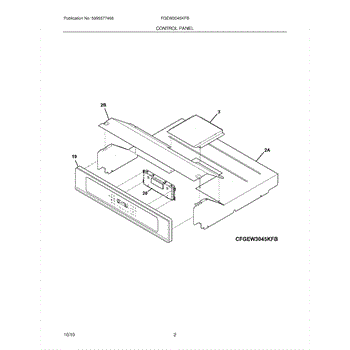

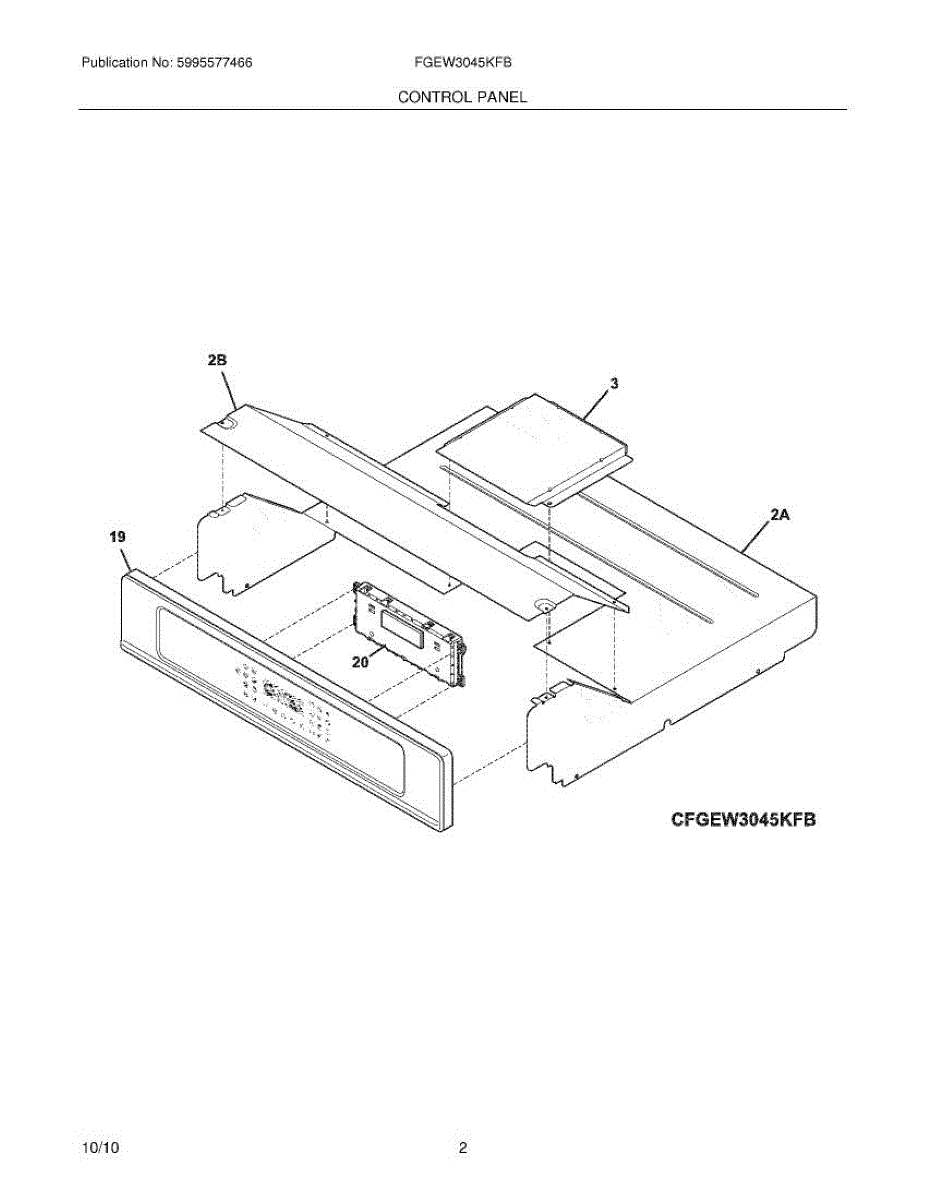

Parts for Frigidaire FGEW3045KFB: 03 - Control Panel Parts

This electronic oven control board manages bake and broil functions and provides the clock/timer display. Replacing a failed control can restore accurate temperature regulation, reliable oven operation, and a readable time display.

• Regulates oven heating by controlling bake and broil relays based on temperature sensor input
• Powers elements or igniters to reach and hold set temperatures
• Displays clock, timer, and oven status/settings
• Common symptoms of failure: oven won't heat or overheats, blank or dim display, can't set temperature/timer, unresponsive controls, intermittent beeping

• Disconnect power at the breaker before servicing
• This is an ESD-sensitive board; handle by the edges and avoid touching components
• Photograph and label wire connectors; transfer connectors and any mounting hardware from the original control
• After installation, set the clock and run a test bake to verify operation

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation
