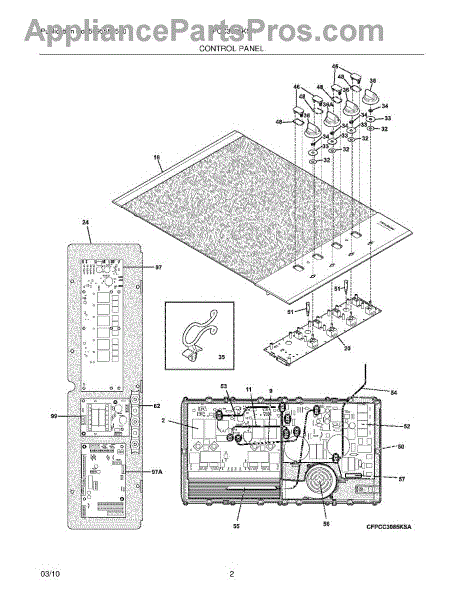

Parts for Frigidaire FPCC3085KSA: 03 - Control Panel Parts

This generator is the OEM replacement rotary cam assembly that times and drives mechanical sequences so your appliance operates correctly. It restores proper cycle sequencing to help eliminate failures caused by a worn or damaged cam. What it does:

• Rotates and indexes internal cams/gears to control mechanical switching and timing
• Ensures correct sequencing of cycles and component engagement
• Commonly replaces noisy, stuck, or non-indexing cam assemblies
• Helps resolve symptoms like intermittent operation, failed cycle changes, or mechanical binding

• One generator (rotary cam assembly) as shown

• Disconnect power before servicing to avoid shock or injury
• Access may require panel removal and basic hand tools
• Verify alignment and timing marks during installation for proper operation

This control mounting hex nut secures the burner or oven control to the control panel, keeping the shaft stable so the knob turns smoothly and the switch stays properly aligned.

• Threads onto the control/infinite switch or thermostat bushing to fasten it to the panel
• Prevents the control from rotating or shifting when the knob is turned
• Replace if the original nut is missing, stripped, rounded, or corroded
• Common signs: loose or wobbly knob, switch spins in the panel, or misaligned knob indexing

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull off the knob and any trim; support the control body from behind the panel while removing/installing the nut
• Start the new nut by hand to avoid cross-threading; tighten snugly with the correct-size wrench—do not overtighten
• The control sits square in the panel and the knob operates smoothly before restoring power

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a Frigidaire cooktop relay control board, which monitors and regulates the burners on a stove. The control board can short out due to power surge or exposure to excessive heat. For example, if the oven's self clean function is run too long or too frequently, parts of the control board could melt or otherwise malfunction. If the control board has failed, the stovetop burners may not work at all.Before installing this part, ensure that power to the range has been cut. A screwdriver will be needed to remove the old control panel and secure the new one.This is a genuine OEM part compatible with ranges manufactured by Frigidaire brands, including Electrolux, Gibson, Kelvinator, Westinghouse, and others. No other hardware is included with this product.

This is the electronic control board that governs the appliance's main functions and user interface, replacing a failed board to restore normal control and cycle operation. It fits the OEM form and connects to factory wiring. What it does:

• Manages timed cycles, user inputs, and electronic commands for the appliance
• Controls display and indicator responses so settings register correctly
• Helps resolve symptoms like unresponsive controls, incorrect cycle behavior, or blank/error displays
• Interfaces with sensors and relays to coordinate heating, motor, and valve operation

• Disconnect power to the appliance before attempting service to avoid shock
• Handle the board by its edges and avoid static discharge; use an anti-static strap if available

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application
