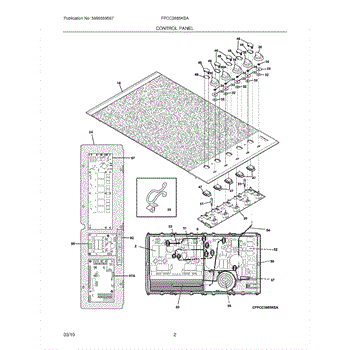

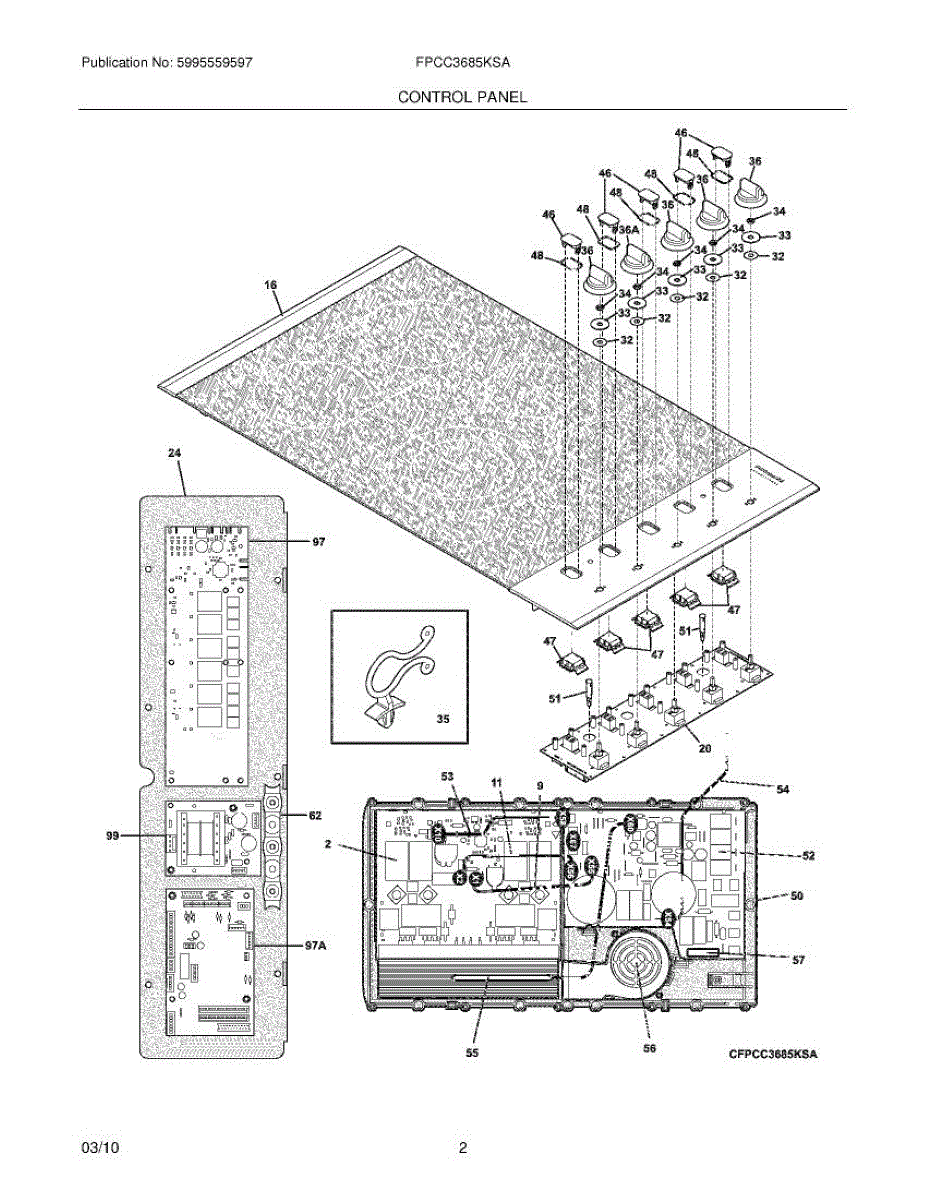

Parts for Frigidaire FPCC3685KSA: 03 - Control Panel Parts

This generator is the OEM replacement rotary cam assembly that times and drives mechanical sequences so your appliance operates correctly. It restores proper cycle sequencing to help eliminate failures caused by a worn or damaged cam. What it does:

• Rotates and indexes internal cams/gears to control mechanical switching and timing
• Ensures correct sequencing of cycles and component engagement
• Commonly replaces noisy, stuck, or non-indexing cam assemblies
• Helps resolve symptoms like intermittent operation, failed cycle changes, or mechanical binding

What's included:

• One generator (rotary cam assembly) as shown

Install notes:

• Disconnect power before servicing to avoid shock or injury
• Access may require panel removal and basic hand tools
• Verify alignment and timing marks during installation for proper operation

Replacement control board for your cooktop. Installs behind the control panel to manage heating functions. Order a new board if yours is damaged or faulty.

Replacement washer for cooktop assembly. Secures components in place. Needed when original is missing, stripped, or damaged during repair work.

Bushing for electric cooktops and ranges. Replaces worn, cracked, or missing bushings. Structural component that installs in the cooktop assembly.

Secures burner or oven control to the control panel behind the knob. Replace if stripped, missing, or loose to keep control shaft stable and aligned.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

Replace your cooktop indicator light lens when cracked, discolored, or missing. Restores visibility of control panel lights. Verify fit with your model number.

Cooktop burner gasket seals the burner assembly to prevent gas leaks and ensure proper combustion. Replace if worn, cracked, or causing uneven flames. Verify fit with your model number before ordering.

This is the induction generator module that powers an induction cooktop's heating element. It converts standard electrical current into the high-frequency electromagnetic energy needed to heat induction-compatible cookware. Replace this board if the cooktop burner fails to heat, heats intermittently, or displays error codes related to the induction circuit.

Cooktop won't heat or turn on? A blown thermal fuse is often the cause. This safety component protects against overheating. DIY-friendly repair.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a Frigidaire cooktop relay control board, which monitors and regulates the burners on a stove. The control board can short out due to power surge or exposure to excessive heat. For example, if the oven's self clean function is run too long or too frequently, parts of the control board could melt or otherwise malfunction. If the control board has failed, the stovetop burners may not work at all.Before installing this part, ensure that power to the range has been cut. A screwdriver will be needed to remove the old control panel and secure the new one.This is a genuine OEM part compatible with ranges manufactured by Frigidaire brands, including Electrolux, Gibson, Kelvinator, Westinghouse, and others. No other hardware is included with this product.

Replace your cooktop's control board if the original is damaged, burnt out, or malfunctioning. This circuit board manages heating elements and settings.

Range won't turn on or display shows incomplete numbers? This electronic control board manages cycles and user inputs. Moderate DIY repair, 1-2 hours.

Specs: 10-32 X 0.375

Specs: 10-32 X 0.375

Motor making noise or loose? This motor mounting nut secures motors in refrigerators, ranges, and other appliances. Simple install takes 15 minutes.

Motor making noise or loose? This motor mounting nut secures motors in refrigerators, ranges, and other appliances. Simple install takes 15 minutes.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.
