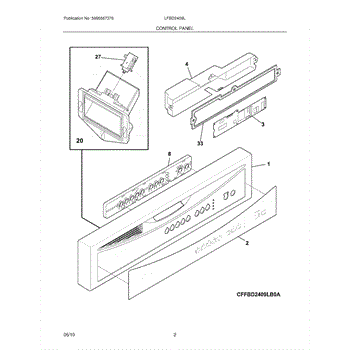

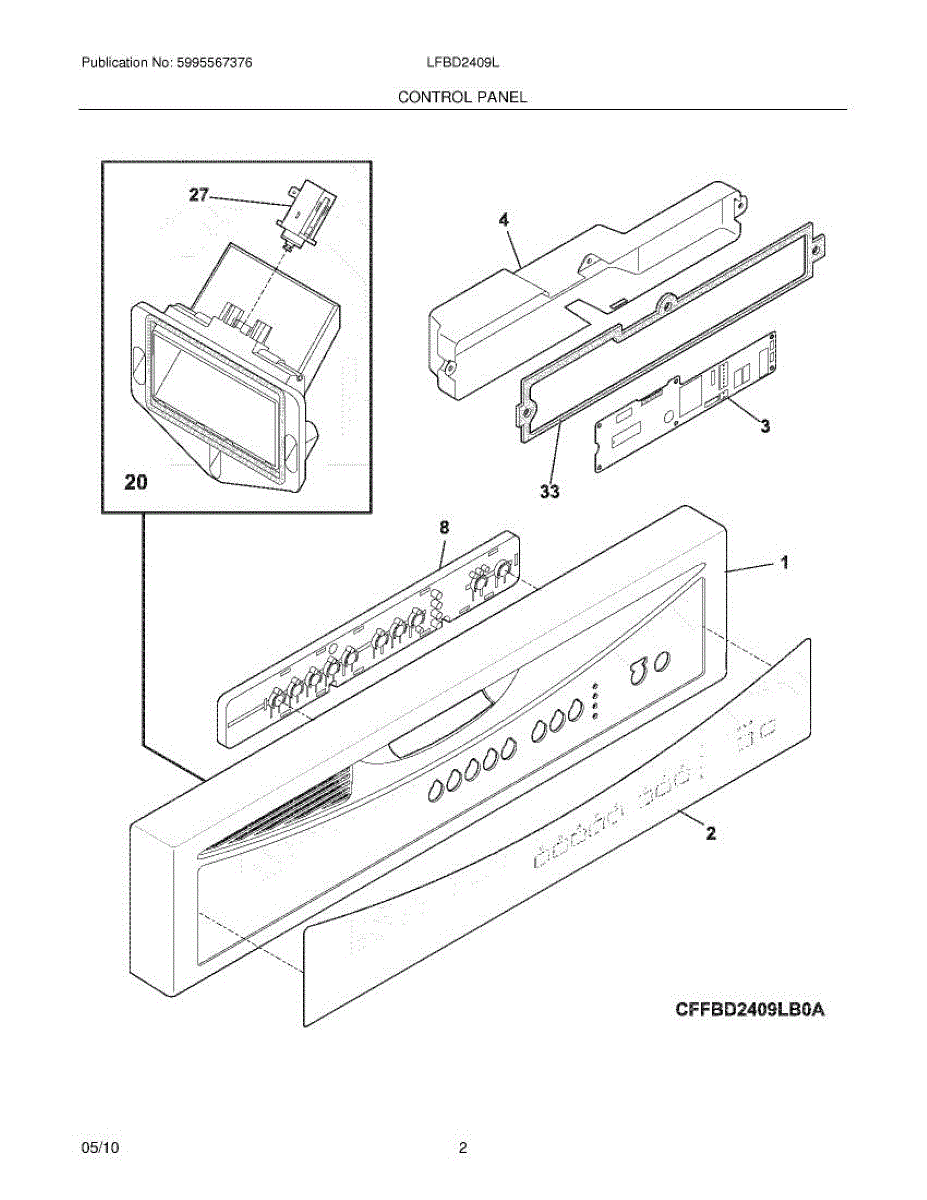

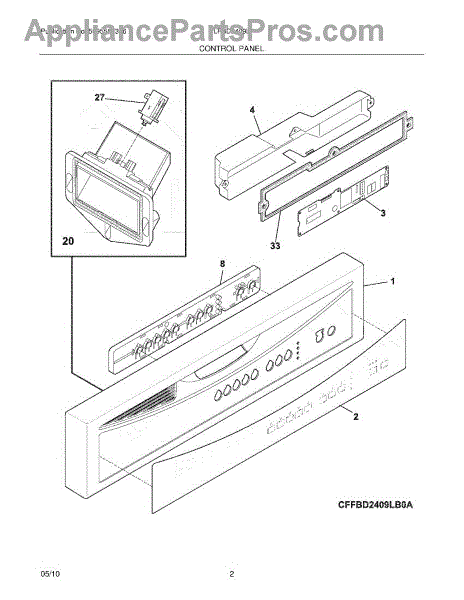

Parts for Frigidaire LFBD2409LS0A: 03 - Control Panel Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Black exterior fascia for the dishwasher control area. Replaces cracked, faded, or damaged panels to restore appearance and proper alignment.

This adhesive overlay provides the printed text and symbols for your dishwasher's control panel buttons. It adheres directly over the control panel surface to restore faded or worn button labels. Apply this overlay if your dishwasher's control markings are illegible or the panel surface is damaged.

Dishwasher won't start or displays flashing lights? The control board manages cycles, detergent dispenser, and water release. DIY repair in 10 minutes.

This is the user control and display board located on the front panel of the dishwasher. It contains the buttons, display, and interface circuitry that allow you to select wash cycles, options, and monitor cycle status. Replace this board if the display is blank or flickering, buttons are unresponsive, or the dishwasher does not respond to cycle selections.

Includes actuator

Includes actuator

This is a rubber gasket that seals the area around the dishwasher control panel or door edge, preventing moisture from escaping during wash cycles. It helps protect internal electronic components from water damage and maintains proper door sealing. Replace this gasket if you notice water leaking from the top or sides of the dishwasher door, or if the seal appears cracked, warped, or deteriorated.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Mounting screw for dishwasher assembly. Secures internal components and panels. Replace if missing, stripped, or corroded during maintenance or repair.

Plastic dispenser mounting screw for dishwashers. Secures detergent dispenser assembly to door. Replace if stripped, cracked, or missing.

Replacement mounting screw for dishwasher panels and internal components. Secures brackets and chassis parts. Replace stripped, missing, or damaged hardware.

This thermistor is the dishwasher's temperature sensor. It reports water temperature to the control so the heater and cycle timing are managed correctly, helping restore reliable wash performance and more consistent drying.

• Monitors water temperature in the tub/sump and sends readings to the control board
• Helps the control regulate heater operation and determine cycle progress/timing
• Failure can result in no heat or poor drying
• May cause unusually long/short cycles or temperature-related fault codes

• Disconnect power at the breaker and shut off the water supply before servicing
• Access is typically from the toe-kick/base area or sump; remove the lower access panel as needed
• Release the locking tab/clip, remove the sensor, and ensure the existing seal/O-ring is properly seated; install the new sensor fully to prevent leaks
• Reconnect the wire harness, restore power, and run a test cycle to check for leaks and proper heating

This side mounting bracket kit includes the hardware needed to secure a dishwasher to the adjacent cabinetry from the sides rather than from the countertop. It is commonly used in kitchens with granite, stone, or other countertops where top-mounting screws cannot be used. Replace this kit if the original brackets are bent, broken, or missing, causing the dishwasher to shift or slide during operation.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
