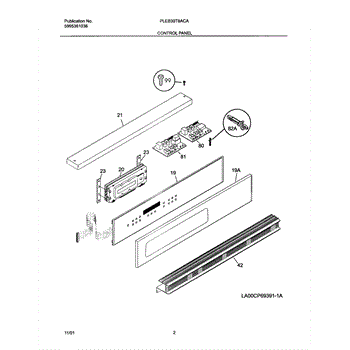

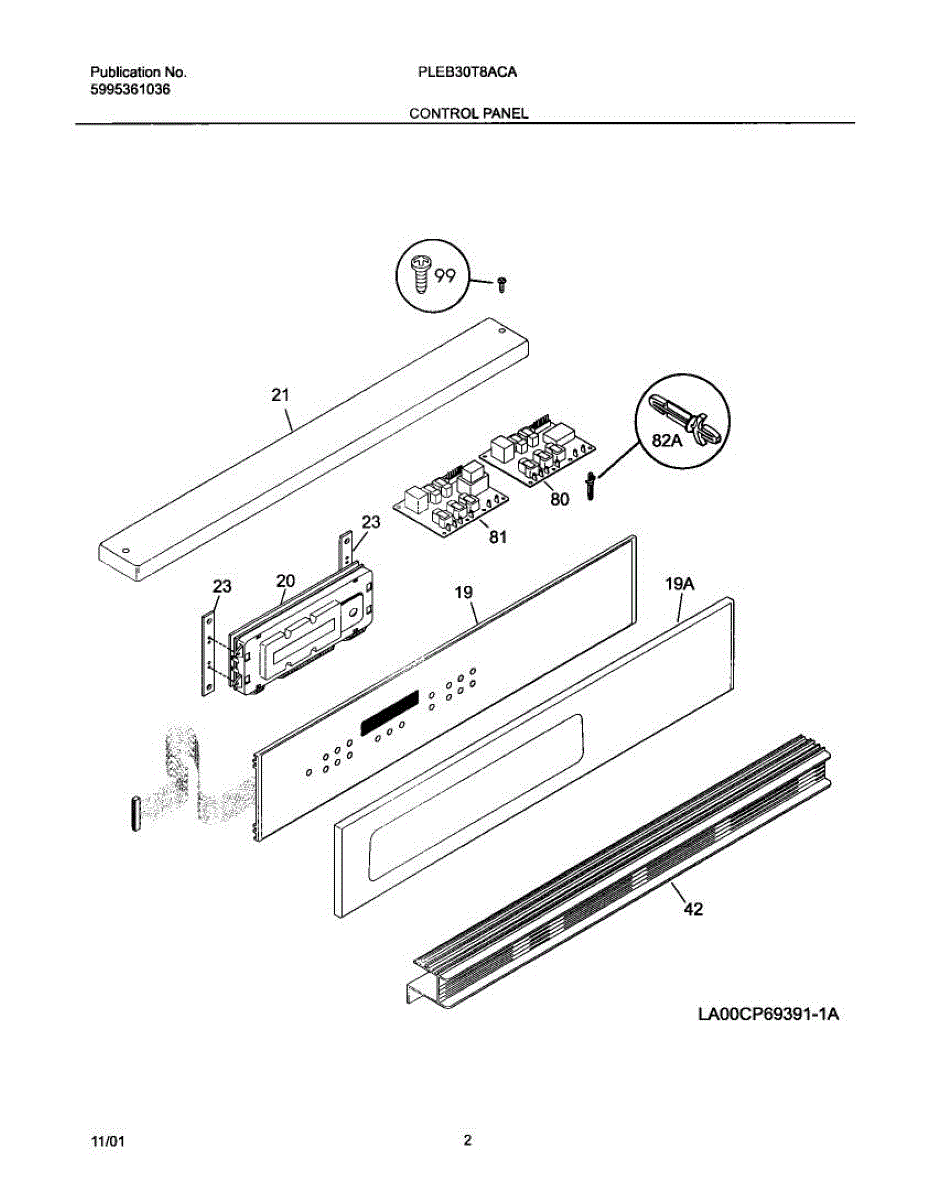

Parts for Frigidaire PLEB30T8ACA: 03 - Control Panel Parts

This OEM part is a relay control board for ovens. An oven relay control board is a circuit board that receives signals from the main oven control board. The relay control board then relays the signal to regulate the oven's essential functions. Over time, a relay control board can become overworked. If the oven is no longer turning on, heating properly, or regulating its temperature, it might be time for a new relay board. Luckily, replacing this part is not a difficult process. To replace the relay board, make sure the oven is unplugged. Gain access to the upper back panel on the back of the range and remove the screws. Once the panel is removed access the relay board and remove the wire harness as well as any individual wires attached to the old board. Make sure to take note of the orientation of the wires. Replug the wires into their correct terminals on the new board and snap the new board back in place. Resecure the upper back panel.This genuine replacement part is sold individually and is compatible with Frigidaire, Electrolux, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore brand ovens.

This is a Frigidaire oven relay control board. This part is made for the double-oven wall design. The relay control board sends a signal to the main control board, causing the oven to turn on or off. These relay boards are engaged directly by the power button of the unit and the cooking timer. When the relay control board malfunctions or short circuits, the baking and broil functions will be directly affected. The oven may quit powering on altogether if the relay board completely fails. A short in the relay will cause the oven power to function correctly at random times. Wall ovens must be dismounted from their positions to install these parts. Once access is gained to the tear of the stove, the back panel can be removed. The relay control board is located near the bottom of the unit, close to the utility drawer. Unplug the connecting wires and engage the mounting clips holding the board. Discard the old unit, and replace it with the upgrade. Connect the cables and fasten the metal panel on the rear of the oven. Check for proper function before mounting the stove back into the wall.This is a genuine OEM product and is obtained directly from the manufacturer. This part is only compatible with Frigidaire wall ovens.

Specs: 8 - 18 x 0.500

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts
