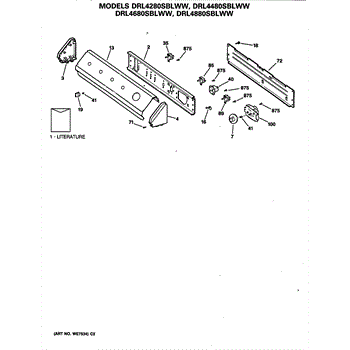

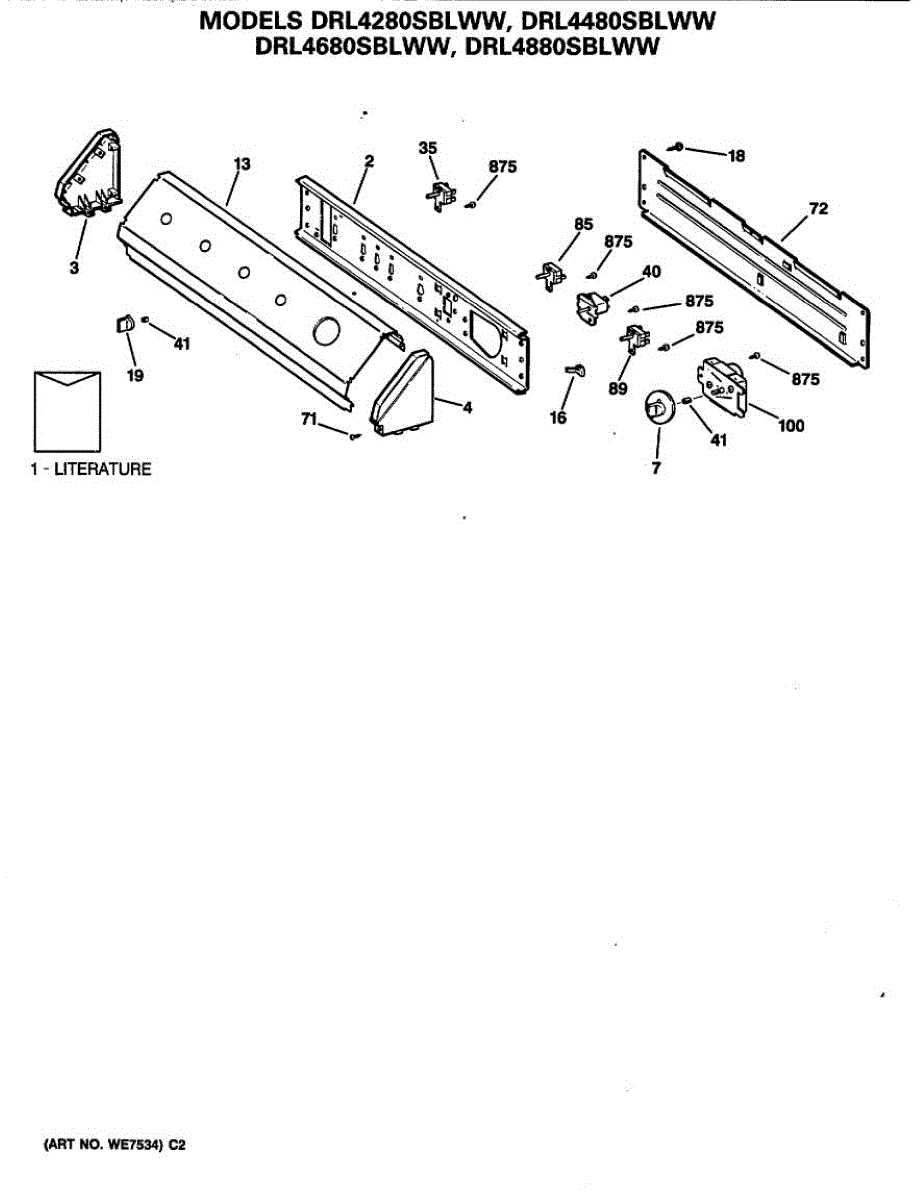

Parts for Ge DRL4680SBLWW: 01 - Section1 Parts

This part has been discontinued and is no longer available.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rotary Start Switch is an OEM replacement part for GE dryers. It is silver and black in color, with a white D-shaped shaft. The rotary start switch is found inside the dryer control panel, and when actuated, it starts the dryer.

Causes of a bad start switch include prolonged use resulting in normal wear and tear, internal component failure, or accidental external damage.

Symptoms of a bad start switch are:

• The dryer failing to start or operate as selected
• Intermittent or inconsistent operation

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This dryer timer controls the length and sequence of drying cycles. Replacing a failed timer restores proper cycle advancement so the dryer starts, runs, and shuts off at the correct time.

• Controls cycle timing and progression through the selected settings
• Opens/closes internal contacts to route power to the drive motor, heat circuit, and end-of-cycle signal as designed
• Advances the control dial and stops the dryer at the OFF position
• Typical symptoms of a bad timer: timer won't advance, dryer runs too long, stops mid-cycle, or won't start on timed cycles

• Disconnect power before servicing; for gas dryers, also shut off the gas supply
• Access timer from the control panel; remove the rear panel/cover to reach it
• Label or photograph wire positions and transfer them one-by-one to the new timer
• Secure the timer with original screws, reinstall the dial/knob, and test cycle operation

Note: 10-watt bulb

The Lamp is an OEM part for GE dryers. This part illuminates the dryer's drum interior, enhancing visibility for loading and unloading garments. It ensures that users can easily see their clothes and any items inside the drum, particularly useful in low-light conditions.

Replacing a non-functional dryer lamp is important for maintaining the functionality and convenience of your GE dryer, ensuring you can effectively manage your laundry.

Symptoms of a malfunctioning dryer lamp include:

• A lack of light inside the drum when the dryer door is opened or during operation
• Flickering or intermittent light indicating a loose connection or nearing the end of the lamp's lifespan
• Complete failure to illuminate, which could stem from a burnt-out bulb or electrical issues within the dryer

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Size: 8-32 t. Includes 12 screws.

Black. 8-18 AB HXW 3/8
