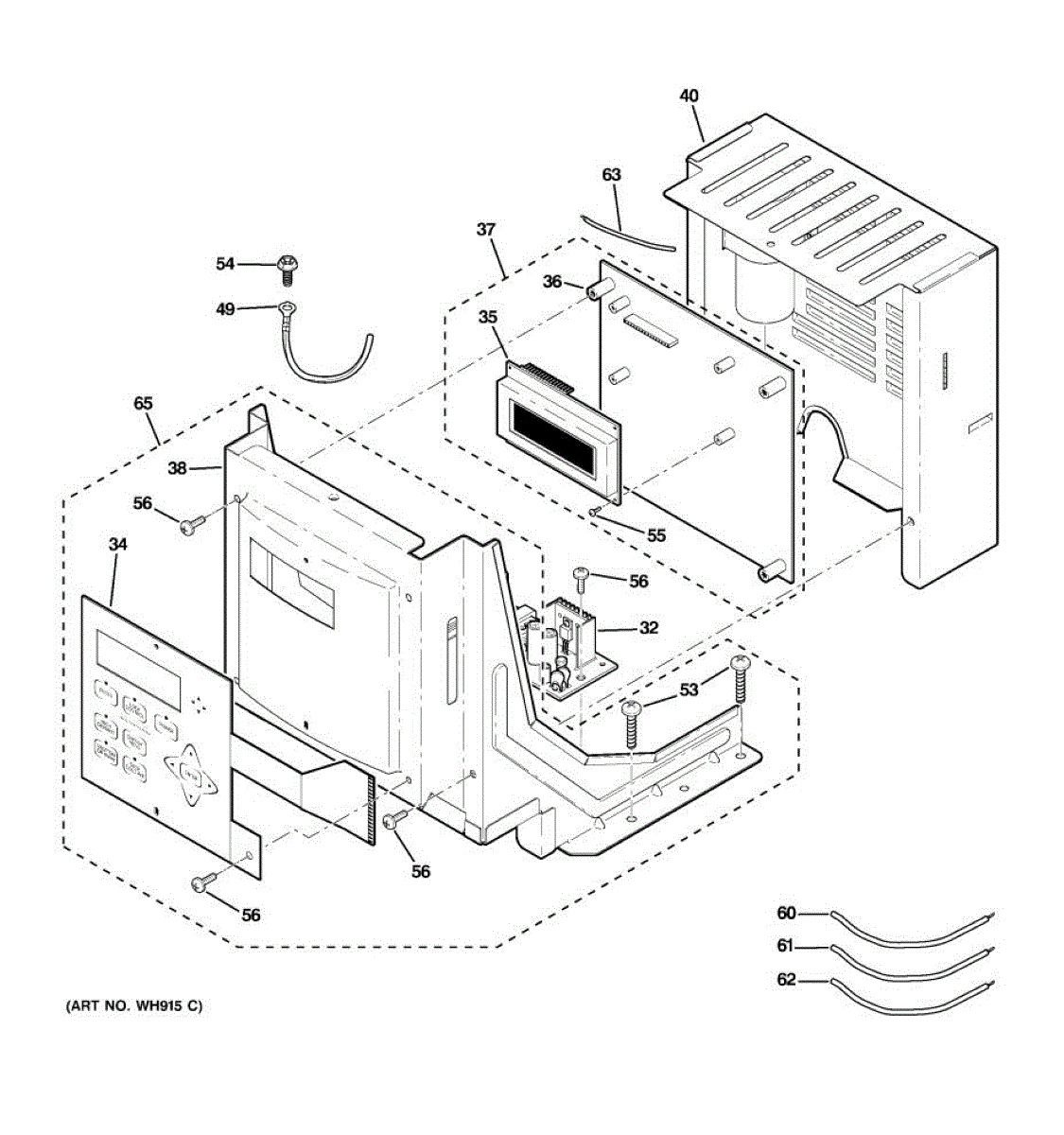

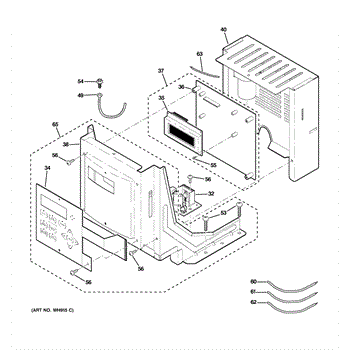

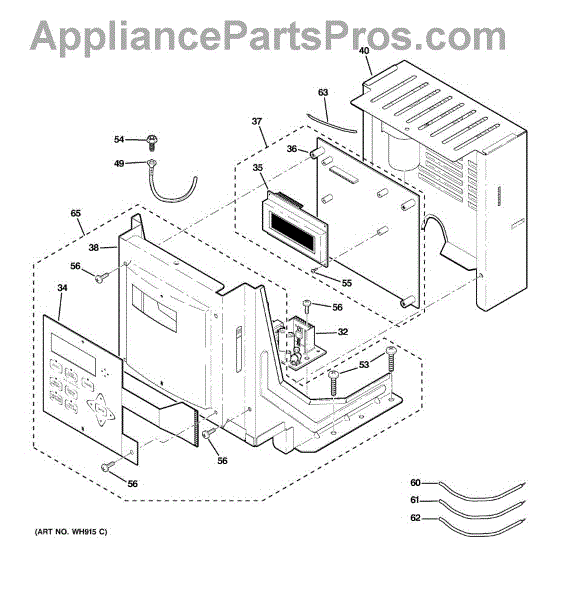

Parts for Ge GEH50DNSRSA: 01 - Control Panel Parts

This rear control enclosure is the outer housing that secures and protects the oven/range control console and internal switch/selector assemblies. It restores the console's fit and helps keep control components safely covered. What it does:

• Provides the structural housing for rear-mounted control switches and electronic modules
• Protects control components from heat, dust and accidental contact
• Restores proper alignment and fit of the control console and user interface
• Resolves symptoms like loose or misaligned control panel, exposed wiring, or rattling at the back of the console

• Designed for rear-console style ranges/ovens;
• Disconnect power at the breaker before beginning any service
• Handle with care to avoid damage to mounting tabs or painted surfaces
• If the control board is exposed or removed during installation, note connector locations and grounding to avoid damage

This L2 power supply wire delivers the high-leg connection needed for range/oven power circuits, restoring a secure path for 240V line supply. Use it when a damaged or disconnected L2 conductor prevents proper appliance power. What it does:

• Carries the L2 (high-leg) line in electric range/oven power assemblies
• Replaces frayed, burned, or broken L2 conductors that cause loss of one hot leg
• Helps restore balanced 240V supply when the L2 circuit is interrupted
• Used where a single insulated power conductor is required between terminals or junctions

• One L2 power supply wire

• Disconnect all power at the breaker panel before inspecting or replacing wiring
• Verify correct terminal identification (L1 vs L2) and routing per your appliance wiring diagram
• Use proper crimping/fastening and strain relief; replace any damaged connectors or insulating grommets
