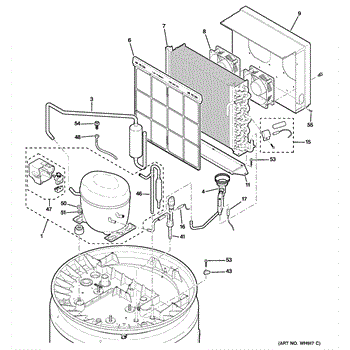

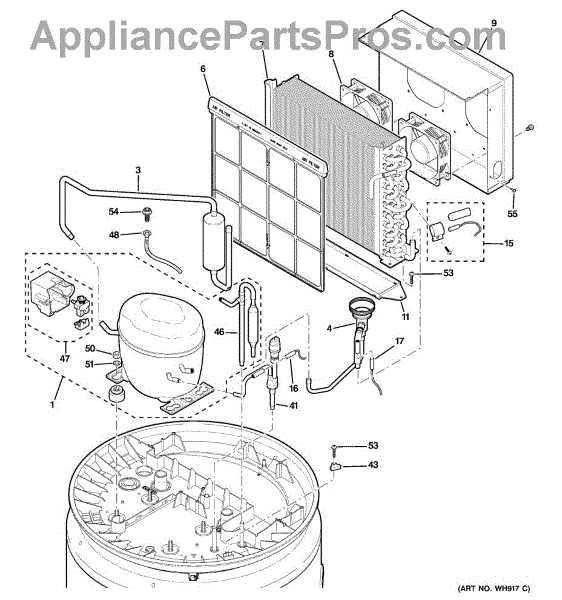

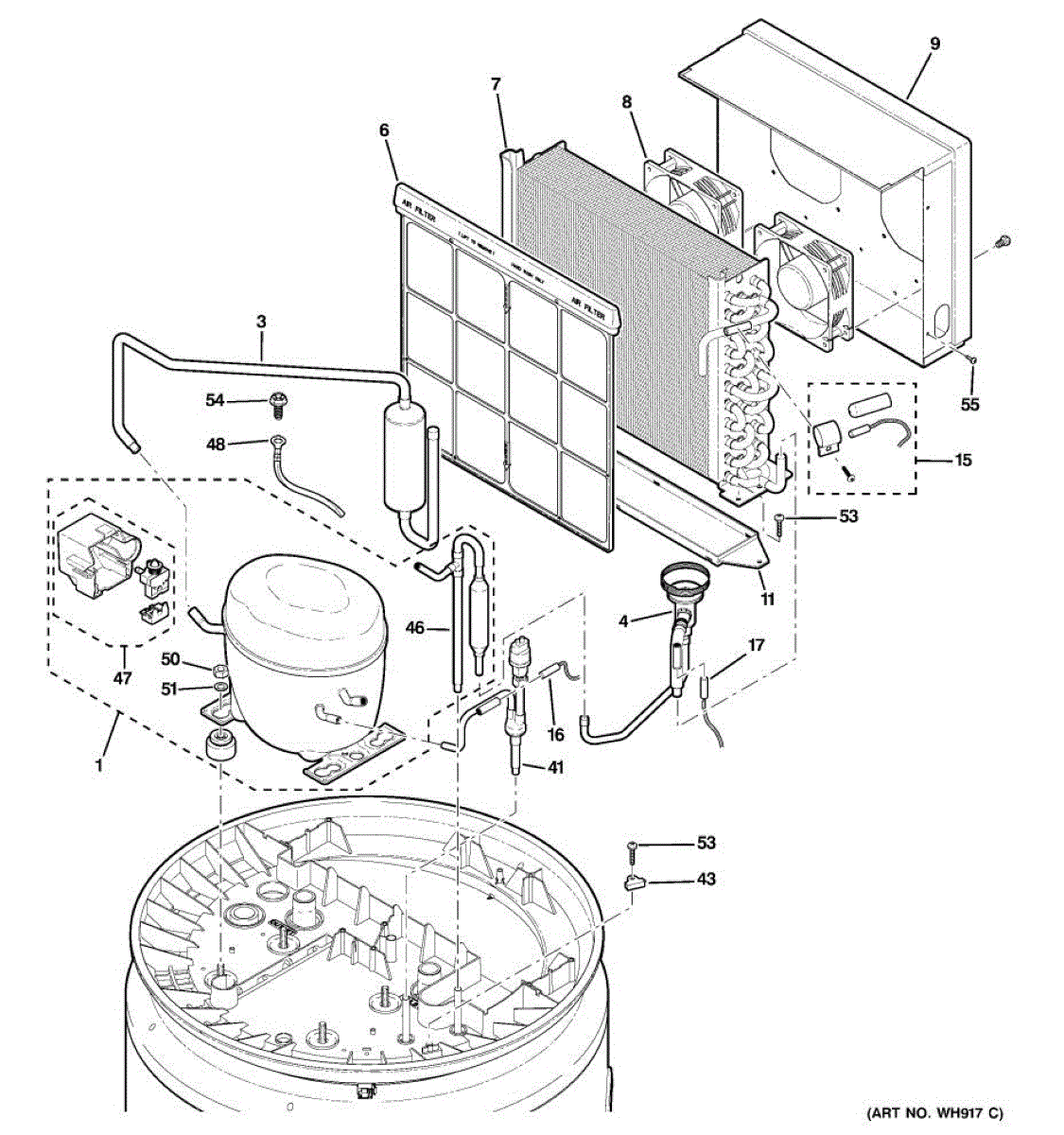

Parts for Ge GEH50DNSRSA: 03 - Unit Parts

This compressor electricals kit provides the electrical components needed to control and protect a refrigerator compressor, helping restore proper start/run function and prevent electrical damage to the compressor assembly. What it does:

• Houses the start relay and overload/protective devices that allow the compressor to start and run safely
• Helps stop the compressor from running continuously when the motor is overloaded or stalled
• Commonly used when a compressor fails to start, hums but won't run, or trips the circuit
• Reduces risk of damage from electrical faults when installed correctly

• Always disconnect power to the appliance before servicing electrical parts
• Follow model-specific wiring diagrams and terminal labeling during replacement
• Reuse any mounting hardware only if in good condition; replace damaged terminals or connectors

A replacement ground wire that restores the appliance's earth connection for safe operation and correct electrical grounding. Useful when the original ground lead is damaged, corroded, or missing. What it does:

• Provides a dedicated earth/ground path between chassis and house ground for safety
• Restores proper grounding when the original wire is frayed, broken, or corroded
• Helps prevent electrical shock, arcing, and improper appliance operation related to poor ground
• Ensures a secure, low-resistance connection when fastened with the correct terminal hardware

• Disconnect power to the appliance before servicing to avoid shock or injury
• Replace with the exact wire length, terminal type, and color coding for correct fit and safety
• Route and secure the wire to avoid contact with moving parts, sharp edges, and high-heat areas
