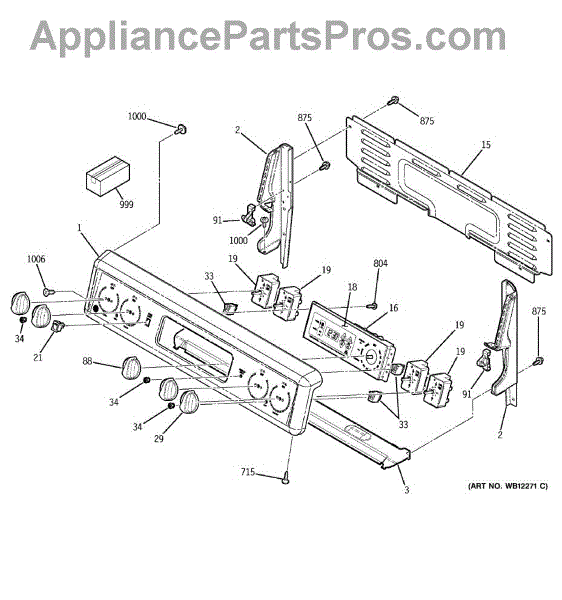

Parts for Ge JB500CD1CC: 01 - Control Panel Parts

Bisque. Right hand side

Bisque. Left hand side

Heat shield that installs between the cooktop and control panel on your range. Replace if cracked, warped, or missing to protect components from heat damage.

This is a nameplate overlay assembly that sits over the oven's control panel, providing the labeled interface for selecting functions and settings. It includes the printed graphics and button markings that correspond to the electronic controls behind it. Replace this overlay if the printed labels are worn, peeling, or unreadable, or if buttons are no longer responding due to a damaged overlay surface.

Burner stays on high or won't turn off completely? This infinite control switch regulates surface burner heat. Simple 10-minute DIY fix with video guide.

Burner won't shut off or stays on high? The infinite control switch regulates surface burner heat. Easy DIY repair, typically 10-15 minutes to replace.

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

This is a rocker-style switch used on ranges and ovens, commonly controlling the oven light or other on/off functions. It mounts on the control panel and toggles between on and off positions. Replace this switch if the oven light no longer turns on or off, the switch feels loose or broken, or the toggle does not stay in position.

Bisque

Replace your range pilot indicator light when it stays on, flickers, or won't illuminate. Signals when cooktop elements are hot for safety. Verify fit by model.

Bisque. For black use WB03T10071. For white use WB03T10075.

Replacement maintop hinge for your range. Secures and supports the cooktop maintop panel. Order a new hinge if yours is broken, cracked, or worn.

Bisque. 8-18 x 5/16 inch.

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Specially formulated cleaner for ceramic glass and smooth cooktops. Removes cooked-on food, grease, and spills without scratching. Verify fit by model.

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.
