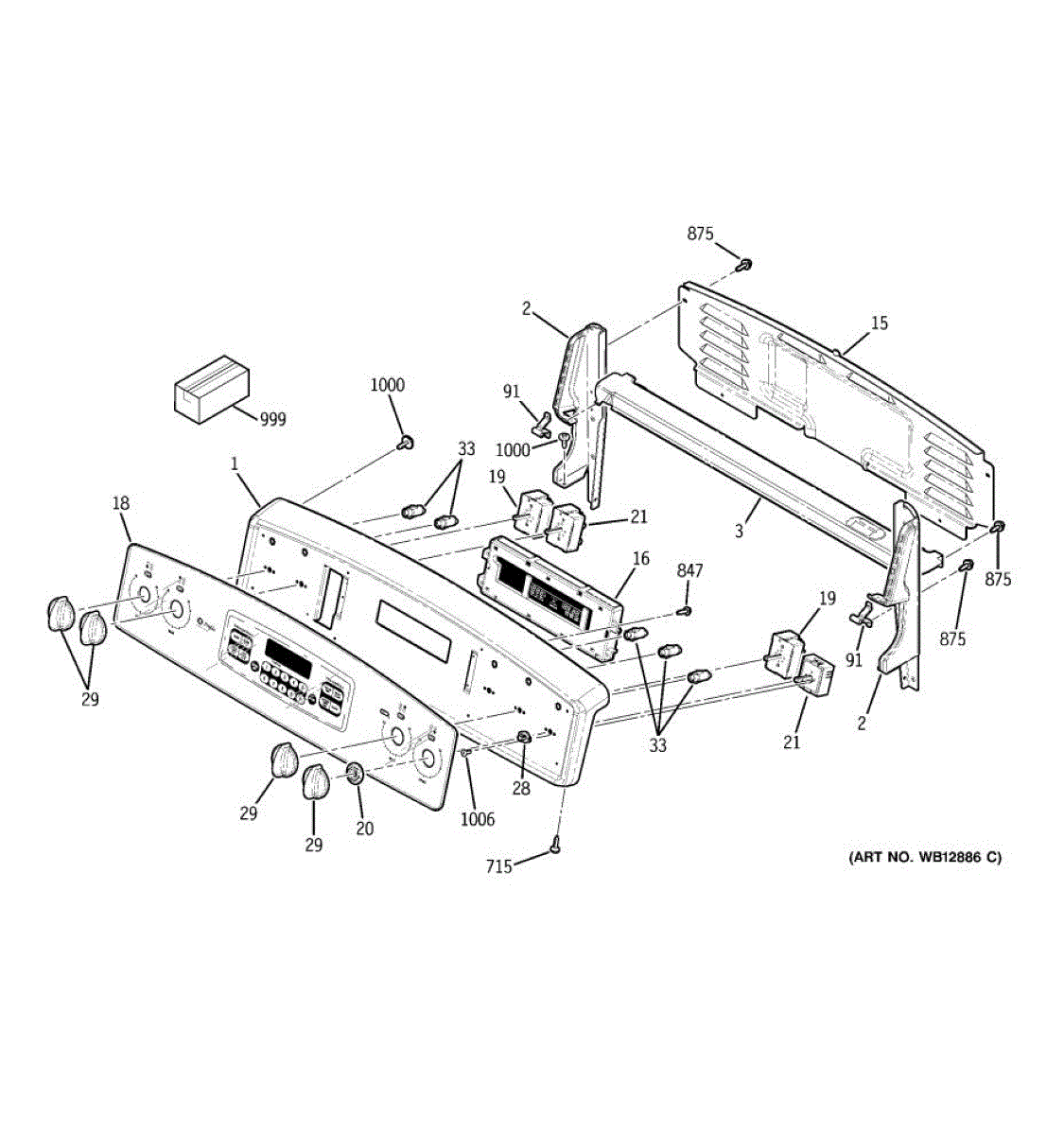

Parts for Ge JBP48BH1BB: 01 - Control Panel Parts

Color: Black

Black. Right hand side

Black. Left hand side

This crystal retainer secures the clear lens on the appliance's control panel, keeping it properly seated and protected. Replacing a damaged or missing retainer restores a snug fit and helps prevent the lens from shifting or rattling.

• Holds the lens/crystal firmly in place to protect the window over the clock/timer or display
• Maintains proper alignment and a clean, finished appearance around the panel window
• Helps reduce vibration, rattling, or gaps around the lens area
• Failure may show as a loose or missing window, uneven fit, or buzzing from the panel

• Disconnect power at the breaker before servicing
• Access the retainer from behind the control panel; remove covers/screws as needed to reach the lens area
• Support the lens while removing/installing the retainer so it doesn't fall
• Wear gloves and eye protection; sheet-metal edges can be sharp

The Infinite Switch Control is an OEM part compatible with GE ranges and ovens. It is a crucial component that allows users to precisely control and adjust the temperature or heating levels of the cooktop surface burners or oven.

Symptoms of a faulty infinite switch control:

• Erratic temperature regulation or inability to maintain the desired heat setting
• Surface burners or oven not heating properly or not heating at all
• Indicator lights not functioning correctly
• Burnt or melted switch knobs or control panel

Causes of a bad infinite switch control can include electrical malfunctions, physical damage, overheating, or general wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and oven models.

This crystal mount secures the small clear lens ("crystal") in the appliance's panel opening, keeping it properly seated and protecting internal components. Replace a damaged or missing mount to restore a snug, finished fit and reliable indicator visibility. What it does:

• Holds the lens firmly in place within the console or backsplash opening
• Helps shield internal controls from grease, spills, and heat around the opening
• Restores proper appearance and panel feel when the original mount is cracked or warped
• Common symptoms: loose or missing lens, rattling panel, visible gap, or a lens that won't stay clipped

• 1 crystal mount

• Disconnect power and allow the appliance to cool before servicing
• Access the panel area; remove screws/clips to release the existing lens and mount
• Transfer the lens to the new mount, align tabs, and secure with existing fasteners
• Do not overtighten; verify the lens sits flush and operates as intended

The Knob is an OEM replacement part for GE ranges. This knob is responsible for operating the temperature control dials on the electric range. Over time, knobs can become worn, cracked or damaged making them difficult to turn accurately. Color: black. Measures about 2 inches in diameter.

Causes of a bad knob can include normal wear and tear from repeated use over many years. They can also be damaged if the range surface is cleaned with harsh chemicals or abrasive cleaners.

Symptoms of a bad knob include:

• Difficulty turning or toggling between temperature/time settings
• Poor response or inconsistencies when adjusting the knob
• Loose, wiggly or unstable feel that doesn't stay securely in position
• Cracks, chips or obvious signs of physical damage

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. 8-18 x 5/16 inch.

Nickel

Package of 12

Black. 8-18 AB HXW 3/8

Size: 8 - 18 ab hxw 5/8 s

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
