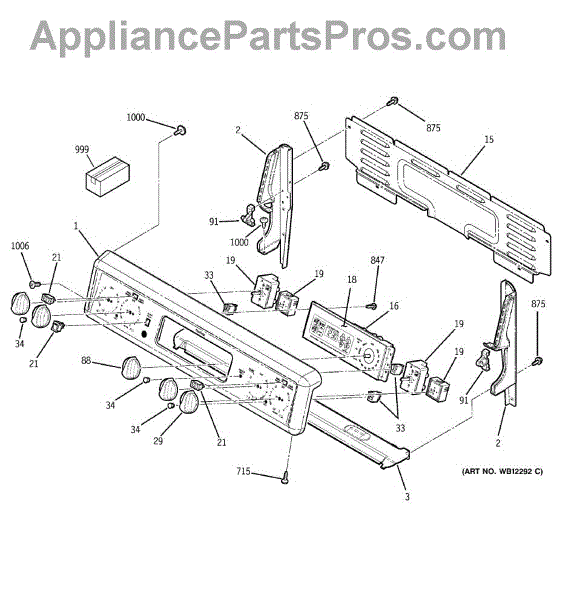

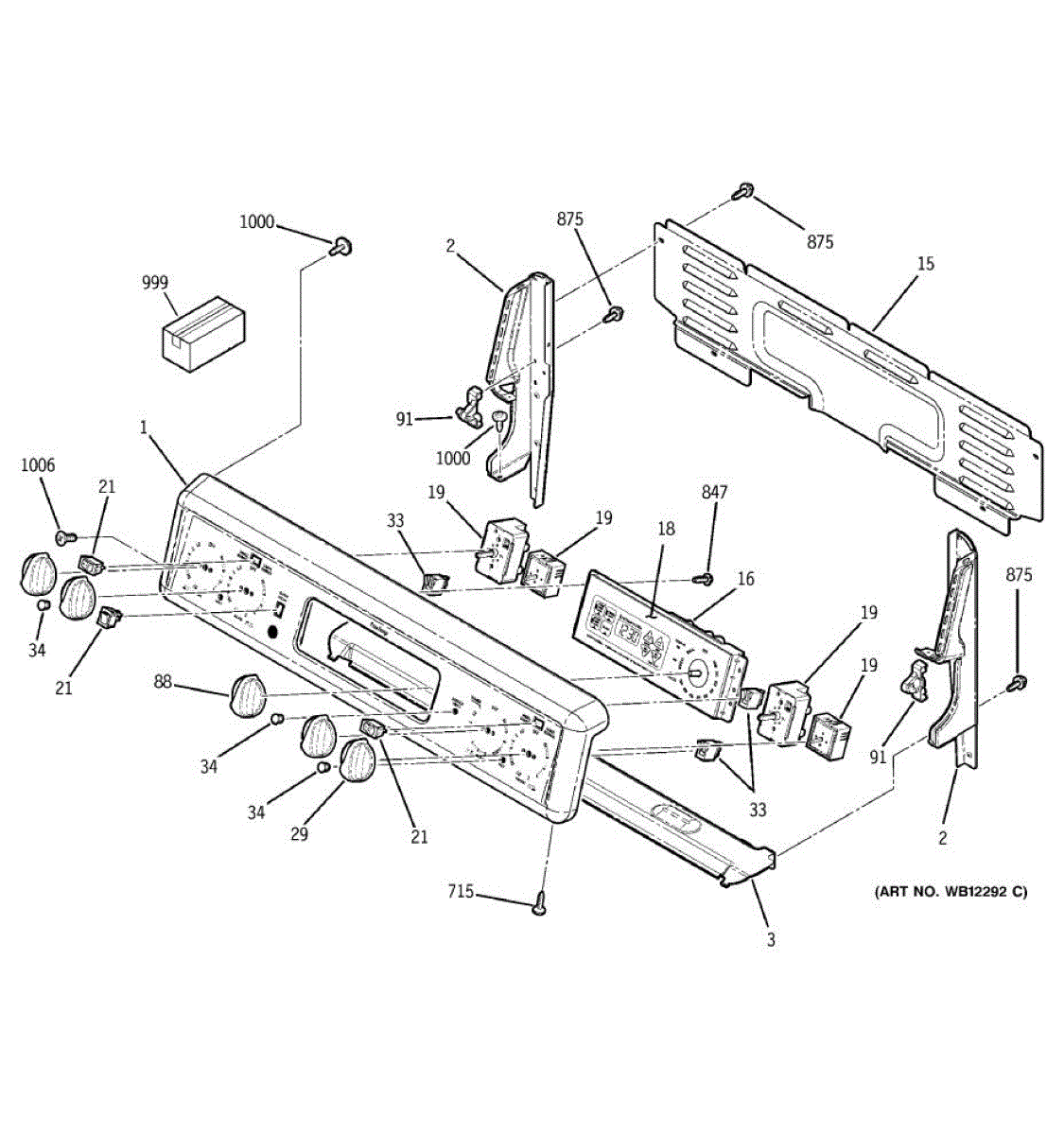

Parts for Ge JBP78GD2SB: 01 - Control Panel Parts

Black. Right hand side

Black. Left hand side

This clock control board is the electronic brain of your oven. It powers the display, reads keypad inputs, and controls bake/broil functions so you can set temperatures, timers, and cycles reliably. What it does

• Drives the time/temperature display and kitchen timer
• Interprets keypad inputs for bake, broil, and clean
• Sends power to heating circuits via onboard relays
• Manages alarms and fault monitoring

• Blank, dim, or garbled display
• Buttons unresponsive or erratic
• Oven won't start or won't heat despite good elements and power
• Random beeping or fault/error codes

• 1 electronic clock/control board

• Disconnect power at the breaker before servicing; verify no voltage is present
• Use anti-static handling; avoid flexing or touching component pins
• Photograph and label all wire connections before transfer
• If your model uses a separate overlay/keypad membrane, carefully transfer it from the old board

Black

1500 watt

The Infinite Control Switch is an OEM part for GE ranges. This part controls the temperature of the surface burners by regulating the power sent to the heating elements, allowing for precise heat adjustments during cooking.

Causes of a bad infinite control switch can include electrical issues such as short circuits, wear and tear from regular use, or internal mechanical failures.

Symptoms of a bad infinite control switch include:

• The burner not heating up or getting stuck on one temperature
• Inconsistent or erratic heating
• Difficulty in adjusting the burner temperature
• The burner not turning off or on properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black.

The Rocker Switch is an OEM part for GE ranges. This switch is used to control the surface heating elements, allowing users to turn them on or off and adjust the heat levels. It is designed to fit securely into the range's control panel, providing reliable operation and ease of use.

Causes of a bad switch rocker element can include regular wear and tear, electrical issues, or damage from spills or high temperatures. Over time, the internal contacts of the switch can degrade, leading to malfunction.

Symptoms of a bad switch rocker element include:

• The heating element not turning on or off
• Difficulty in adjusting the heat levels
• The switch feeling loose or unresponsive
• Flickering or intermittent operation of the heating element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This surface burner control knob replaces a worn or missing knob on your range or cooktop. It restores smooth heat selection and a clean appearance so you can accurately set burner levels during everyday cooking.

• Operates the surface element's infinite switch to adjust burner heat
• Restores proper engagement when the old knob is cracked, stripped, or loose
• Provides a clear pointer for setting and reading heat levels
• Common symptoms include knob slipping, not turning the switch, or missing/broken knob

• Disconnect power or turn off the breaker to prevent accidental burner activation
• Pull the old knob straight off the switch shaft
• Align the new knob with the shaft and press straight on until fully seated
• Verify the pointer orientation and smooth operation through all settings

The Pilot Indicator Light is an OEM part for GE ranges. It indicates whether an element on the range is active and hot, providing a safety feature that alerts users to potentially dangerous heat levels.

Common causes of a bad pilot indicator light include electrical failures, wear and tear from frequent use, or physical damage to the light or its housing. A malfunctioning indicator light can lead to difficulty in determining whether the appliance is on, which could pose safety risks.

Symptoms of a bad pilot indicator light include:

• The light fails to illuminate when an element is turned on.
• The light remains on, indicating an element is hot when it is not.
• Flickering or erratic behavior of the indicator light.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. For white use WB03T10075. For bisque use WB03T10128.

Black. 8-18 x 5/16 inch.

Nickel

Package of 12

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

Size: 8 - 18 ab hxw 5/8 s

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
